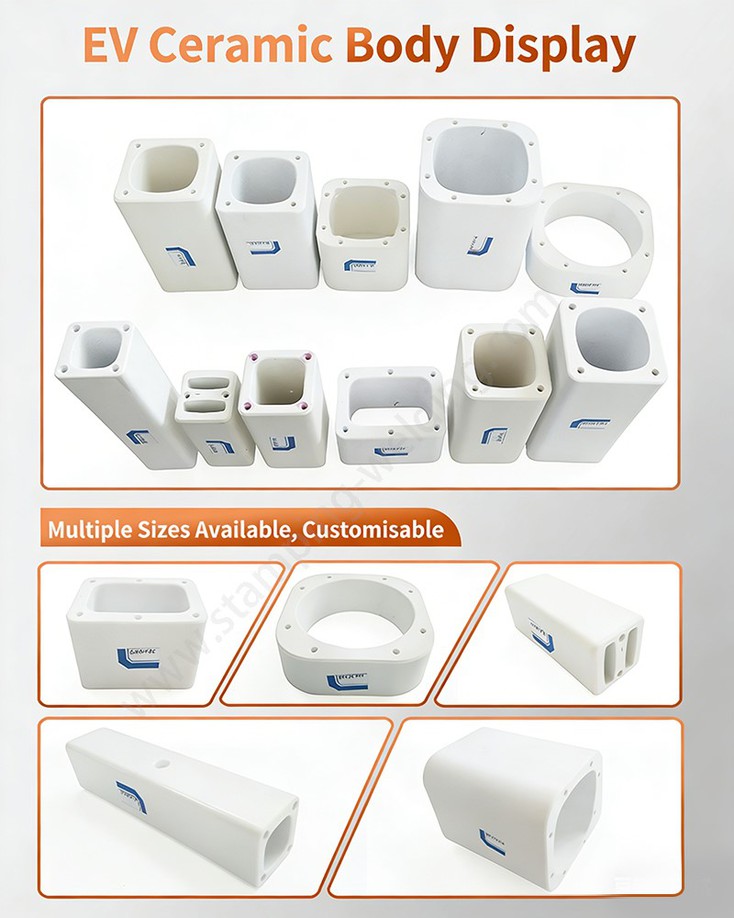

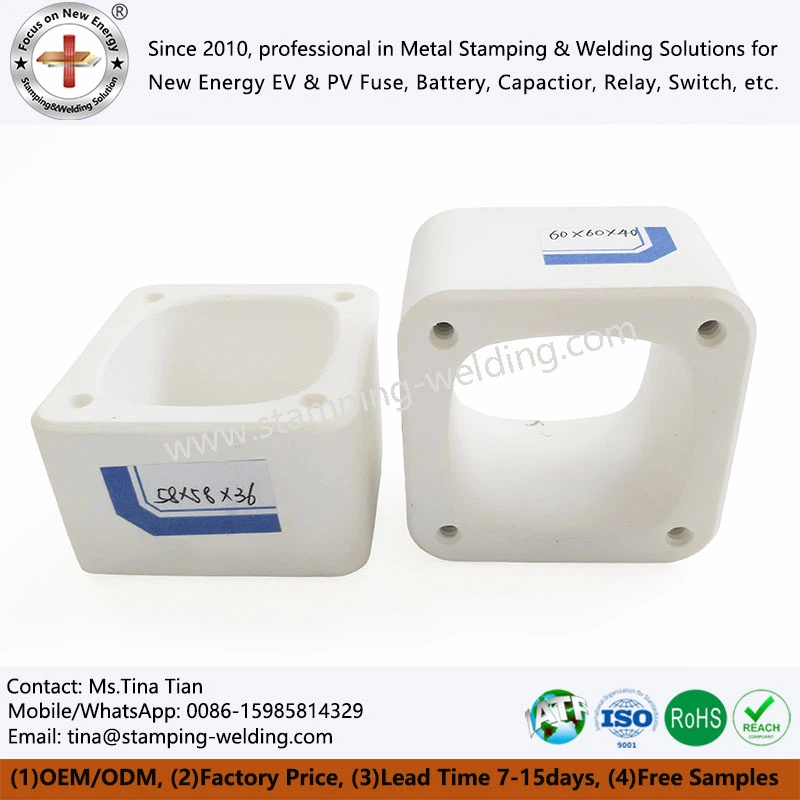

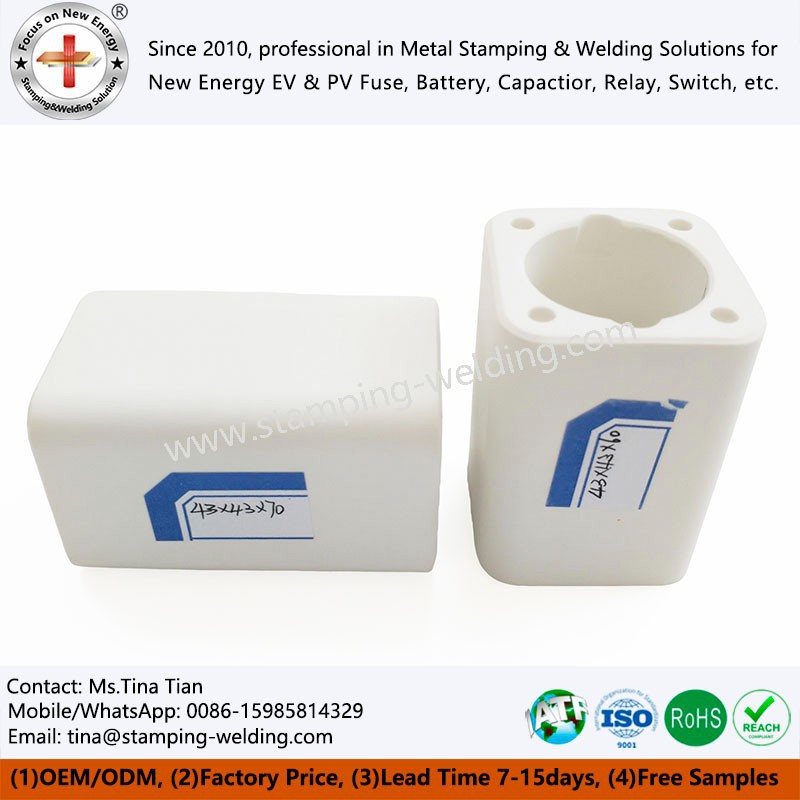

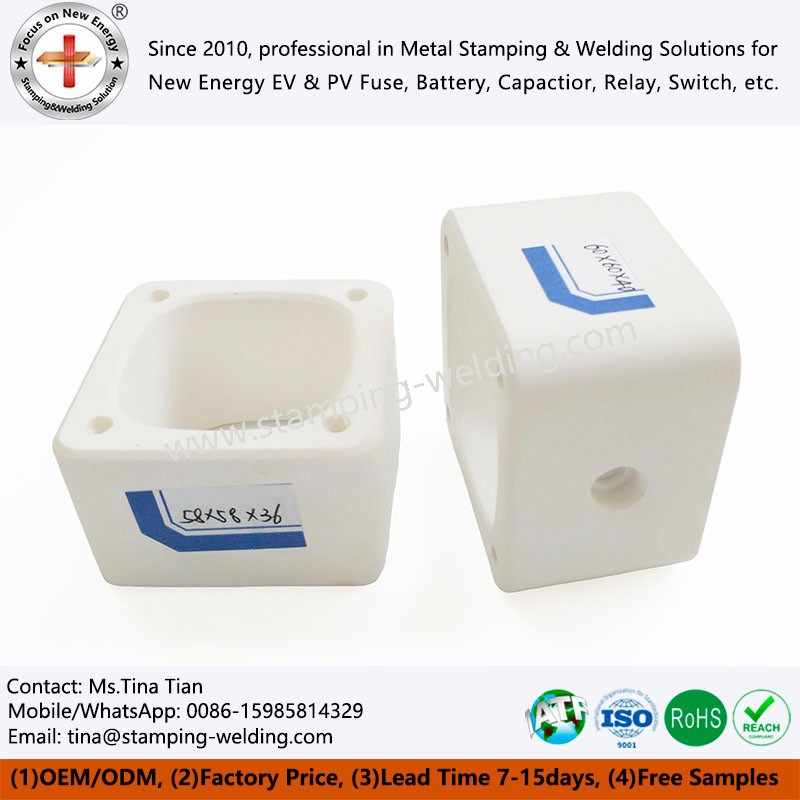

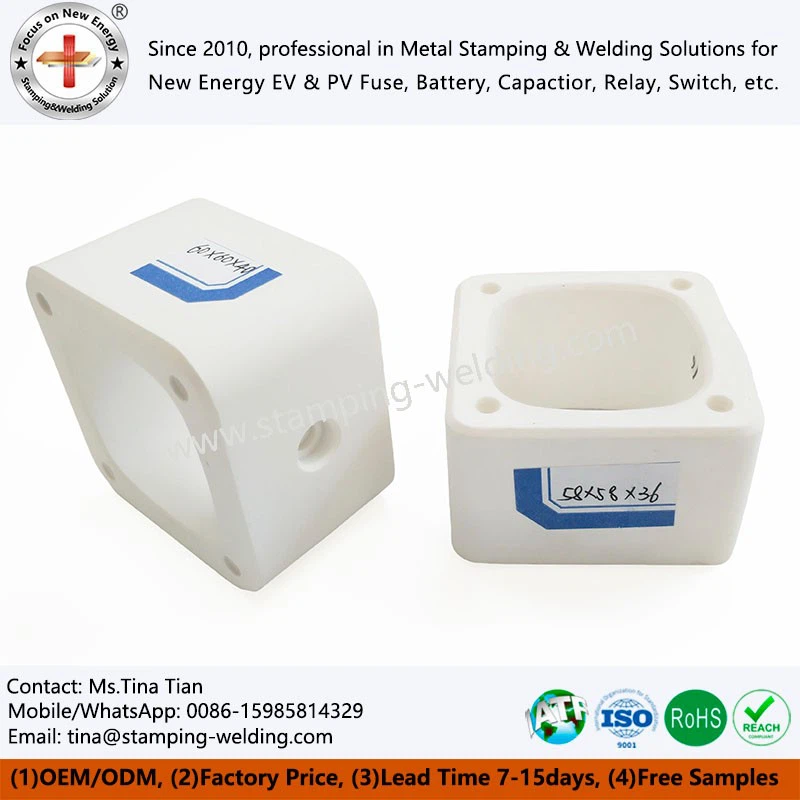

Ceramic For DC Automotive Fuse
Ceramic for DC Automotive Fuse, that is, DC ceramic fuse for new energy vehicles, is a core component of overcurrent protection specially designed for high-voltage DC distribution systems. It uses a high-strength ceramic tube body as the arc-extinguishing medium carrier, filled with high-purity quartz sand as arc-extinguishing filler, and cooperates with a precise melt structure to achieve millisecond-level fault current cutoff at key nodes such as electric vehicle power battery packs, high-voltage power distribution boxes (PDU), motor controllers, and fast charging piles.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Different from traditional AC fuses, this series of products is specially optimized for arc characteristics under DC conditions and can reliably break fault currents under hundreds of volts or even thousands of volts of DC voltage. It is an irreplaceable passive safety barrier in the high-voltage safety architecture of new energy vehicles. As the last line of defense in DC circuits, Ceramic for DC Automotive Fuse is not a simple "fuse", but a system-level protection solution that integrates material science, arc physics and precision manufacturing technology. Its design logic directly serves the ultimate pursuit of safety, reliability and space efficiency of new energy vehicles.
Detailed display
Project quality is visible and verifiable.
Terminal plating
Silver plating thickness ≥8μm ensures low contact resistance and sulfur resistance for the Ceramic Body for Overload and Short Circuit Protection Fuse.
Ceramic surface treatment
Laser-engraved specification information, wear-resistant, high-temperature resistant, and never blurry for the Ceramic Tube for EV DC Fuse.
Internal structure perspective
The X-ray image shows that the melt is evenly arranged, the filler is sufficient, and there are no void defects for the Ceramic Casing for Fuse Link.
Temperature rise test report
When powered on for 1 hour at rated current, the terminal temperature rise is ≤55K (better than the industry standard of 65K).

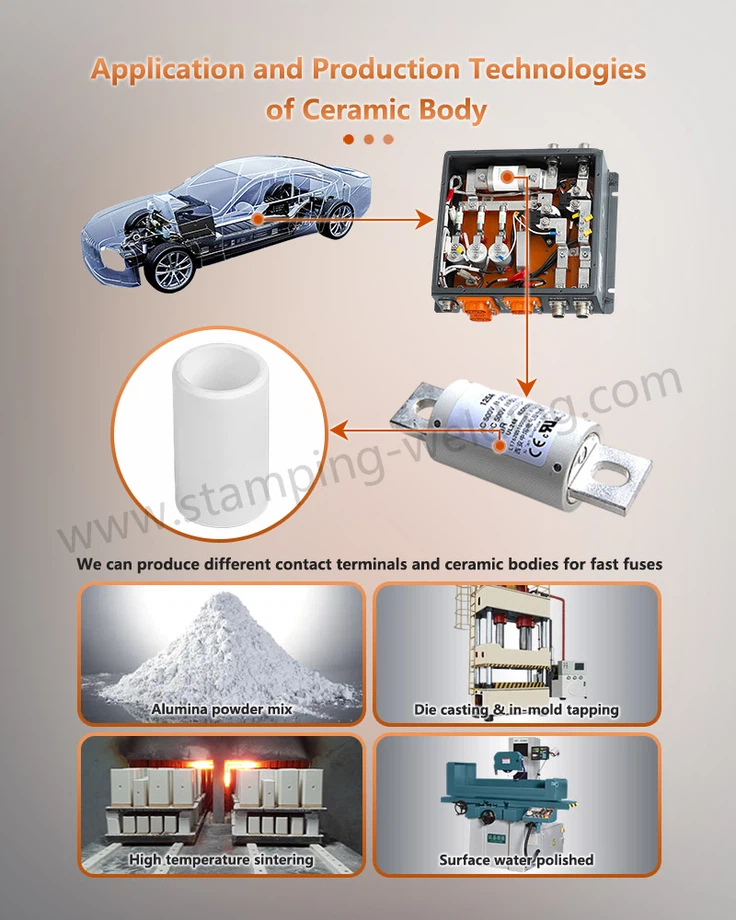

Manufacturing advantages
Isostatic pressing+high-precision CNC grinding
Different from ordinary extruded tubes, isostatic pressing ensures uniform density and the sintering deformation rate is controlled in a very low range for the Ceramic Tube for EV DC Fuse.
Continuous tunnel kiln firing
The temperature field is stable, the performance consistency between batches is significantly improved, and it is suitable for large-scale matching for the Ceramic Tube for EV BS Series.
Full-process traceability system
Each batch of ceramic bodies can be traced back to the raw material batch, molding parameters, sintering curves and inspection records, meeting the quality management logic of the automotive industry.
Main functions and application scenarios
This series of fuses plays multiple roles in the high-voltage system of new energy vehicles.
Battery pack main circuit protection
Prevent overcurrent caused by an internal short circuit or external collision of the battery, and cut off the connection between the battery and the high-voltage busbar for Ceramic Body for EV Fuse.
01
Motor controller protection
Protect sensitive semiconductor devices in the inverter circuit from breakdown caused by overcurrent for the Ceramic Casing for Fuse Link.
02
High-voltage distribution box protection
As a protection element for branch circuits, it isolates the faults of air conditioning compressors, PTC heaters and other accessories to prevent them from affecting the main circuit.
03
DC charging pile
Provides overcurrent protection at the input end of the charging module to ensure the safety of the charging process for the Ceramic Tube for EV British Standard Fuse.
04
Why choose us
Among circuit protection suppliers, we are more than just a manufacturer; we are your circuit safety partner.
In-depth customization capabilities
We understand that the battery pack layouts of different car companies vary widely. We provide flexible size customization, pin forming and rating fine-tuning services to help you optimize your PCB or busbar layout for Ceramic Casing for Fuse Link.
Engineering response speed
Our technical team has a profound background in power electronics and can intervene at the early stage of the project to assist you with short-circuit current calculation and fuse selection to avoid test failures caused by improper selection.
Supply chain resilience
Relying on vertically integrated manufacturing capabilities, from ceramic sintering to finished product assembly, we are able to effectively withstand external supply chain fluctuations and ensure your mass Ceramic Tube for EV BS Series delivery.
Global vision and localized services
Our products comply with IEC, UL and GB/T standards, and we also provide technical documentation support that complies with local regulations to help your products be sold globally without any barriers for Ceramic Tube for EV DC Fuse.
contact us
If you are screening or optimizing Ceramic for DC Automotive Fuse suppliers, you are welcome to submit current drawings or technical requirements. Our engineering team can directly provide verification comparison solutions and sample support based on arc resistance life and assembly consistency indicators to help you reduce selection risks.
