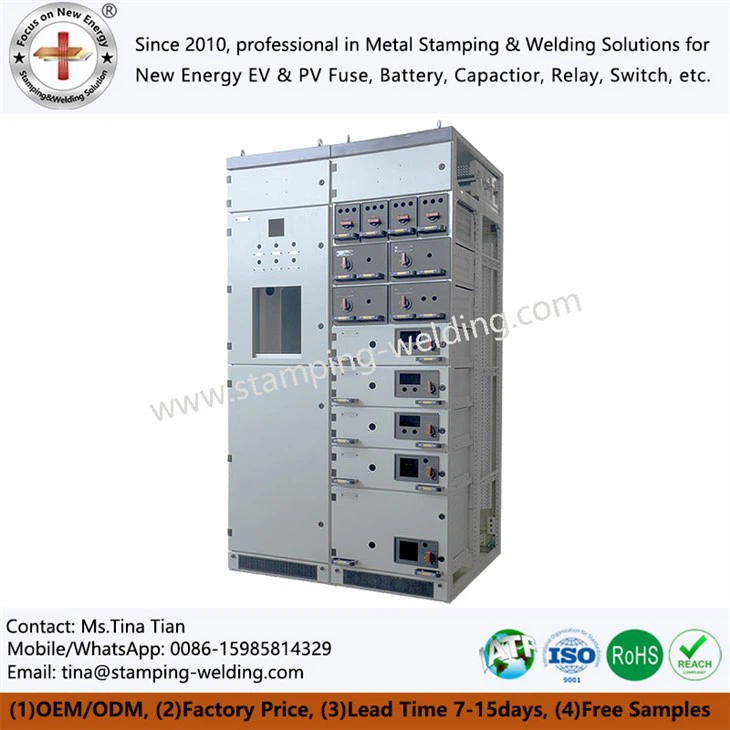

Low Distribution Cabinet
Low Distribution Cabinet is a complete set of electrical equipment used to distribute, control, monitor and protect low-voltage power systems. It is usually installed between the secondary side of the power transformer and the terminal electrical load. This product integrates the incoming circuit breaker, feeder circuit breaker, metering unit, reactive power compensation device and control and protection devices into the metal cabinet to realize the functions of receiving, distributing, converting and protecting electric energy.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Low Distribution Cabinet
Low Distribution Cabinets are core components of modern industrial, commercial and infrastructure power distribution systems and are designed for safe and reliable distribution and management of low-voltage power. This product adopts high-standard industrial design and integrates advanced protection, monitoring and control functions. It is suitable for various harsh industrial environments and complex power consumption scenarios. It is a key equipment to ensure the stable operation of the power system and achieve energy efficiency management.
Product properties and characteristics
Attribute positioning
It is a fixed/drawer-type low-voltage complete set of switchgear. It has five core attributes of power distribution, control, protection, monitoring, and compensation. It provides the Cable distribution cabinet grid with the integrated functions of "centralized management and control, hierarchical power distribution, and fault protection."
Structural form

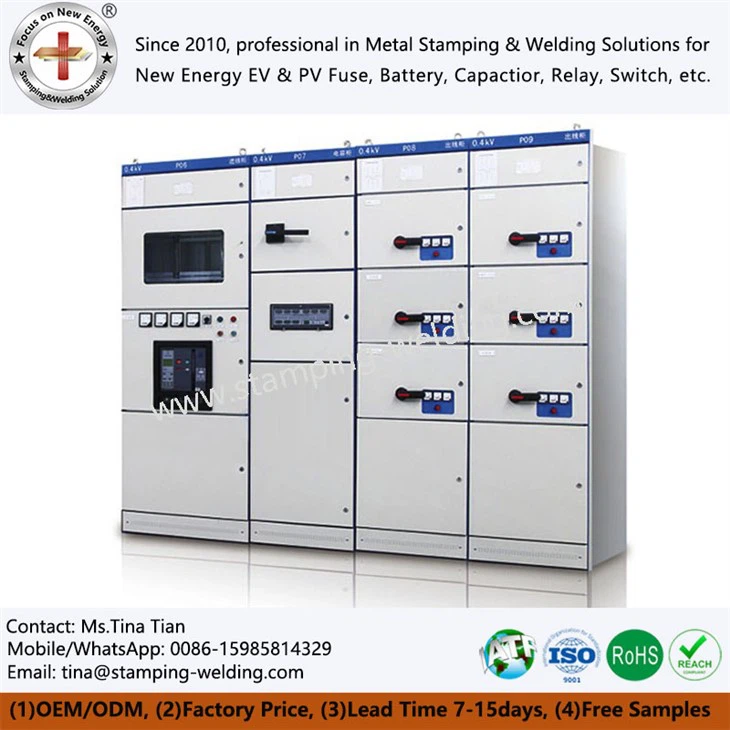

It adopts a combination of standardized cabinet frames and modular functional units, and is divided into two mainstream types: GGD fixed type and GCS/MNS drawer type. The power distribution cabinet structure is compact and regular, with clear internal functional divisions and a simple and elegant external shape, taking into account industrial practicality and installation aesthetics.
Electrical properties
It is suitable for mainstream power distribution scenarios with AC 50/60Hz and a rated voltage of 380V. It has excellent dynamic and thermal stability, short-circuit breaking capacity and insulation performance. It can stably carry different levels of current loads and meet the full range of power distribution needs from small workshops to large factories.
Application attributes
Cabinet power distribution has strong environmental adaptability, high compatibility and scalability, and easy installation, operation and maintenance. It can be adapted to indoor conventional environments, outdoor semi-open-air environments, high-humidity and high-dust industrial environments, mildly corrosive environments, etc.
Detailed display
Reliability engineering of connected systems
We not only focus on the material of the busbar itself, but also conduct in-depth research on the long-term reliability of the connection points. The use of plum blossom contacts or strap contact finger plug-in connectors, combined with constant voltage disc spring technology for the traffic signal controller cabinet.
01
Engineering aesthetics and the safety of the wiring process
Internal wiring strictly follows the principle of "horizontal, vertical, and layered laying" and uses high flame-retardant and heat-resistant cables and labeled tubes. The power lines are physically isolated from the control lines and signal lines to minimize electromagnetic interference in the distribution board cabinet.
02
Active health management interface
On the basis of traditional status indication, installation interfaces and communication channels for smart sensors, such as temperature/humidity sensors and partial discharge monitoring, are reserved to facilitate customers' future upgrades to predictive maintenance systems for electrical distribution cabinets.
03
Consideration of the full life cycle carbon footprint
Environmentally friendly attributes are considered during the product design phase. The cabinet structure is easy to disassemble and most of the materials can be recycled. Optimizing the design reduces the amount of raw materials and indirectly reduces carbon emissions.
04
Production process
Cabinet processing technology

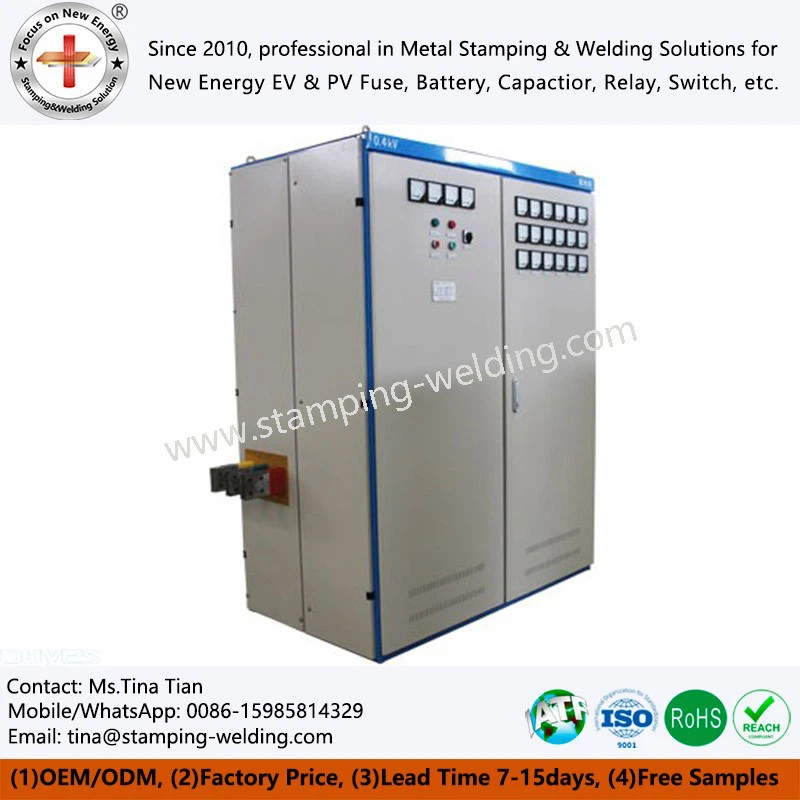

The control panel cabinet frame is made of high-quality 8MF cold-formed steel, which is accurately cut by laser cutting, CNC bending and forming, and high-precision welding/assembly; the frame structure is solid, the load-bearing capacity is strong, and it will not deform after long-term use.
Surface treatment process
The surface of the Cable distribution cabinet adopts multiple processes of "degreasing - pickling - phosphating - electrostatic spraying - high temperature curing"; the spray coating has strong adhesion, uniform thickness, and uniform color.
Component assembly process
The core electrical components are selected from genuine first-line brands at home and abroad. After strict screening and testing, they are assembled by professional technicians in accordance with standardized processes for the outdoor fiber distribution cabinet.
Wiring process
High-quality flame-retardant cables are selected for the wires in the cabinet, and the wiring is standardized according to the principles of separation of strong and weak electricity, and separation of high and low voltages; special wiring troughs and line cards are used to fix the wires.
Why choose us?
We are not only a manufacturer of distribution cabinets, but also your partner for power system reliability. We deeply understand the complexity and challenges of engineering sites and integrate decades of project experience into every detail of consumer distribution boards. From precise drawing design, traceable manufacturing process to rigorous factory inspection, we ensure that we deliver not only compliant products, but also power solutions that can withstand the test of time. We focus on providing a solid guarantee for the stable operation of your project throughout the life cycle through robust engineering design, excellent process quality and forward-looking functional integration.
contact us
With our core engineering advantages of full-process technical control, customized engineering solutions, stable supply capabilities and lifelong technical support, we provide safe, reliable, and accurately adapted one-stop equipment solutions for your Low Distribution Cabinet projects. You are welcome to contact us to obtain exclusive project solutions and professional technical docking.
