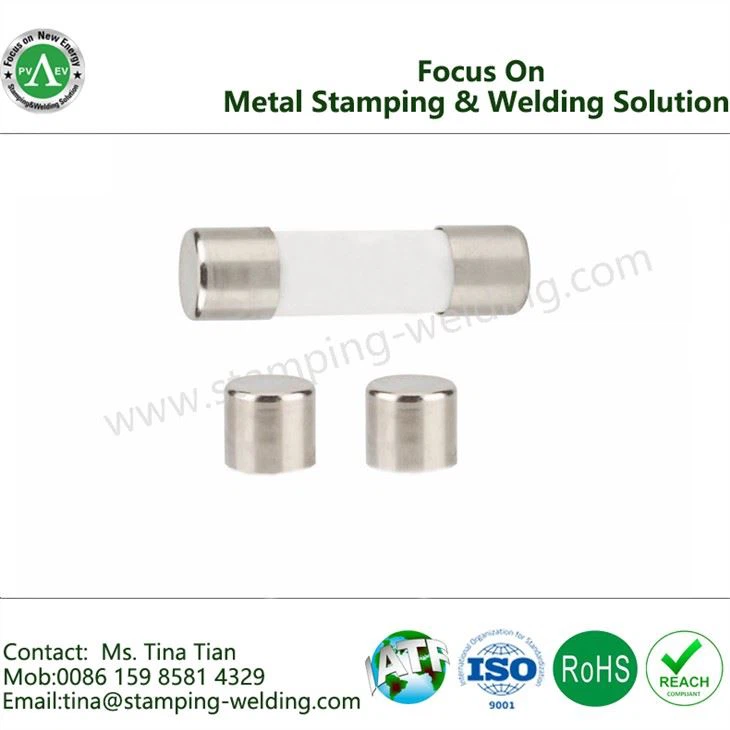

Copper Slip Cap Fitting

Physical and chemical properties of Copper Slip Cap Fitting for Fuse

Mechanical properties

Density g/cm³: 8.9

delivery status:

(1)The copper plate which can be made Copper Slip Cap is in the (R) state, the thickness is 4-14mm, the tensile strength is Rm/Mpa (≥195) and the elongation after breaking is % (≥30); it is delivered in the shape of (M, Y1, Y2, Y, T), Thickness 0.3-10mm, tensile strength Rm/Mpa (≥205-350), elongation after break % (≥8-30), hardness HV: 60-120.

(2)Copper strip of Copper Slip Cap Fitting in (M, Y4, Y2, Y, T) state, thickness ≥0.2mm, tensile strength Rm/Mpa (≥195-350), elongation after break % (≥3-30), hardness HV: 60-120.

Application of photovoltaic fuse in photovoltaic solar energy

Fuses with Tin Plated Copper End Caps are widely used in wind and solar storage, and the industry has entered the fast lane under the background of "dual carbon". The output of the wind and solar power generation system is DC current, which needs to be converted into AC power by the inverter before it can be sent to the grid. At the same time, there are problems such as unstable power and large fluctuations in wind and solar power generation. The energy storage system which be proteced by Fuse Copper Contact Cap needs to smooth the fluctuations to balance the peak and valley power. Among them, the single cells of photovoltaic power generation need to pass through the confluence system, so that the originally small power confluence is in line with the requirements of the grid. power. In the whole wind power generation and energy storage system, the bus system, inverter system, energy storage system and control system all need fuses to provide protection with Copper End Cap Solder Fittings for the circuit. As the "dual carbon" trend has gradually become a consensus, the wind-solar power generation and energy storage market has broad prospects, and the supporting sub-sectors represented by fuses have accelerated into the fast lane.

QUALITY GUARANTEE

Our end caps and fuse terminals meet the highest quality requirements as stipulated in ISO9001, IATF16949, SGS guidelines and our stringent quality control system.
