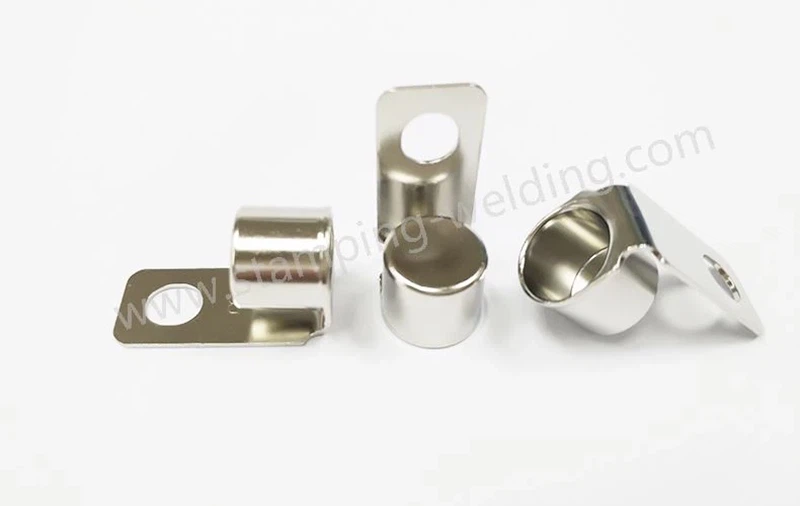

Nickel Plated Copper End Caps
Model Number:ASWT-F104-1
Material:Copper
Application:EV/PV/NH Fuse link
Lead Time:10-15days after you confirm the samples
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PRODUCT DESCRIPTION
Nickel plated copper end caps are an essential component in cylindrical EV fuses, as they provide an extra layer of protection to the fuses. Electric vehicles and hybrid electric vehicles rely heavily on their electrical systems, which can be prone to electrical faults such as overloads and short circuits. Therefore, it is crucial to ensure that the electrical components in EVs and HEVs are well-protected, and this is where nickel plated copper end caps come in.
By using nickel plated copper end caps in cylindrical EV fuses, the fuses can provide optimal protection to the vehicle's electrical systems, ensuring that they operate reliably and safely. This surface treatment of copper end caps using nickel plating provides several benefits, including improved durability, corrosion resistance, and electrical conductivity, making it a popular choice in the manufacturing of cylindrical EV fuses.
SURFACE TREATMENT
The surface treatment of copper end caps using nickel plating offers several benefits. Nickel has a strong passivation ability, allowing it to form a thin passivation film on the surface that resists corrosion from the atmosphere, alkalis, and some acids. This improves the durability of the copper end cap and extends its service life.
In addition, nickel plating increases the hardness of the copper end cap, which enhances its wear resistance and makes it more resistant to damage from mechanical stress or friction. This can be especially important in high-temperature or high-pressure environments, where the end caps may be subjected to harsh conditions.
Another benefit of nickel plating is that it improves the electrical conductivity of the copper end caps. This is important for applications where high conductivity is essential, such as in electrical equipment or wiring.
Overall, the surface treatment of copper end caps using nickel plating provides improved corrosion resistance, durability, wear resistance, and electrical conductivity, making it a popular choice for a variety of applications in various industries.
PRODUCT MATERIAL
Red copper T2Y2 is a type of copper with a high purity level and exceptional mechanical properties. It has a high melting point and can resist deformation at high temperatures. This type of copper is commonly used in electrical and thermal applications due to its excellent conductivity, making it suitable for manufacturing electrical wiring, motors, and heat exchangers. The combination of good electrical conductivity, thermal conductivity, and resistance to corrosion makes red copper T2Y2 a popular choice for a wide range of applications. It is also easy to weld and braze, making it a versatile and easy-to-use material for manufacturers.
| Trade Mark | State | Tensile Strength(Mpa) | Elongation | Hardness(HV) |
| TU0, TU1, TU2 | M(Soft) | ≥195 | ≥30 | ≤70 |
| C10100,C10200,C11000 | Y4(1/4 Hard) | 215-275 | ≥25 | 60-90 |
| T1,T2 | Y2(1/2 Hard) | 245-345 | ≥8 | 80-110 |
| C1020,C1100,C1201 | Y(Hard) | 295-380 | 3 | 90-120 |
| TP1,TP2 | T(Ultrahard) | 350 | -- | ≥110 |
OUR ADVANTAGES
The factory in China provides a direct supply of products.
We have our own stamping die, stamping, and drawing machines, as well as in-die riveting workshops.
We use advanced technologies such as robot laser welding, resistance tin/silver brazing, and more.
Samples and mass orders can be delivered within 10-20 days.
We have obtained various certifications, including IATF16949:2016, ISO9000, RoHS, and Reach certificates.
