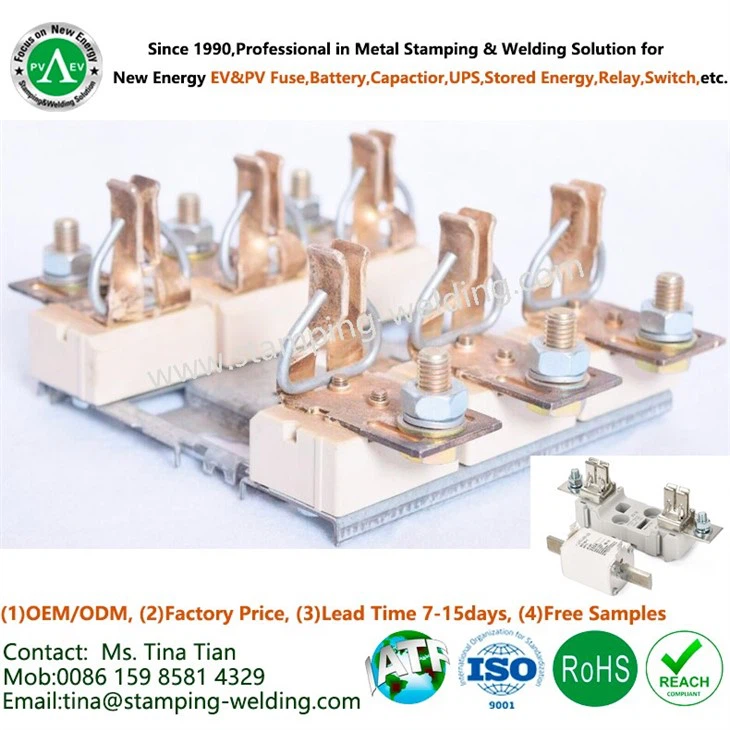

Ceramic NH Fuse Holder

1-Products Name: Ceramic NH Fuse Holder
2-Model No: ASWT-F22050602
3-Base Material:
(1) Bronze CuSn6 (CW452K H180)
Good ductility, fatigue resistance, corrosion resistance and elasticity.
Tensile strength (σb/MPa): ≥290
Elongation (δ10/%): ≥40

(2) Spring Steel 65Mn (ISO 8458/3-2002, FDC)
Higher elastic limit (with higher yield point and yield strength ratio), high fatigue limit, and certain impact toughness.
Ensile strength σb (MPa): ≥980(100)
Yield strength σs (MPa): ≥784(80)
Elongation δ10 (%): ≥8
Reduction of area ψ (%): ≥30
Hardness: hot rolling, ≤302HB; cold drawing + heat treatment, ≤321HB

(3)T2Y2 Copper 99.99% (USA ASTM C11000)
High electrical and thermal conductivity, good corrosion resistance and easy processing.
Tensile strength is 295MPa
Yield strength is 120MPa
Elongation is ≥ 40%
Hardness is HV80-120

4-Surface Treatments: Electroplated nickel base ≥1.3μm, then tin plated ≥5μm,all depend on customer's require

5-Free Samples: 1-10pcs is allowed
6-Lead Time: Orders 7-10days,Samples 20-25days;
7-Packing: Plastic inside and carton/pallet outside
8-Certifications: ISO9001, IATF16949, RoHS, REACH, etc.
9-Production Capacity: 50,000,000 pcs/month
10-MOQ: 1,000pcs/item
11-Applications: EV/PV/NH Fuse link, etc

A ceramic NH fuse holder is a device used to secure NH type high voltage fuses in electrical systems. NH fuses are commonly used in power distribution systems, and the ceramic holder provides a secure and insulated mounting point for the fuse.

The NH fuse holder typically consists of a ceramic body with metal end caps that hold the fuse in place. The ceramic material provides excellent insulation properties, which helps to ensure safe operation of the system. The metal end caps provide a reliable electrical connection to the fuse and are designed to withstand high temperatures and current levels.

NH fuse holders are available in a range of sizes and configurations to accommodate different fuse ratings and mounting requirements. They may also include features such as indicator lights or disconnect switches for added convenience and safety.

When selecting a ceramic NH fuse holder, it is important to consider factors such as the voltage and current ratings of the system, the size and type of the fuse to be used, and the mounting method and location. It is also important to ensure that the holder is compatible with other components of the system and meets any applicable safety and regulatory requirements.
