A Comprehensive Analysis of Busbars Insulation Systems: Structural Types, Functional Coordination, and Material Selection

In power distribution systems and new energy equipment, busbars not only undertake the core task of high-current transmission, but their insulation protection structure also directly affects the safety and reliability of equipment operation. Busbar insulation systems typically consist of insulation covers, insulation sheaths, and junction boxes, among other components. Through multi-layered collaborative protection, they prevent the busbar from being affected by humid environments, mechanical impacts, or contact with foreign objects during operation. With the development of high-power electrical equipment and new energy systems, conductor structures with surface protective layers (such as Epoxy Spray Copper Bus Bars) are gradually becoming an important component of high-reliability power distribution systems.





























































Structurally, busbar insulation covers can generally be divided into three types. First, there are modular insulation covers. This structure allows for flexible installation through modular assembly and is suitable for electrical systems with complex wiring or limited space, and is commonly used in substations and distribution cabinets. Second, there are integrated insulation covers. Their integral molded structure reduces the risk of environmental intrusion from seams and provides better sealing performance in high-humidity or dusty environments. Furthermore, removable insulating covers offer significant advantages in maintenance and inspection, allowing for the inspection of critical connection points without complete system disassembly, thus improving maintenance efficiency. With increasing insulation requirements in industrial equipment, some busbar systems also employ epoxy powder coated busbars to enhance overall insulation reliability.



In busbar insulation structures, the insulating sheath and junction box typically form a complementary protection system. The insulating sheath directly covers the surface of the busbar conductor, its main function being to prevent the conductor from contacting external metal structures or foreign objects, thereby reducing the risk of short circuits. The junction box primarily serves to centrally protect the busbar connection nodes, preventing arcing, dust, or moisture from affecting the connection area. The combined use of both creates a multi-layered protection mechanism between routine operation and sudden electrical faults. For example, in high-current transmission systems, nickel-plated insulated bus bars or tin-plated insulated bus bars with surface insulation structures are often used together to simultaneously ensure conductivity and environmental protection capabilities.

















































































Regarding the selection of insulation materials, silicone rubber is widely used due to its excellent electrical properties and environmental adaptability. This material possesses excellent elastic memory properties, allowing it to recover its original shape after mechanical deformation. It also has a wide operating temperature range, generally maintaining stable performance in environments from -60℃ to 200℃. Furthermore, this material exhibits good aging resistance and UV resistance, making it suitable for outdoor power distribution equipment and new energy systems. With advancements in manufacturing processes, some busbar products also employ integrated insulation technologies, such as Insulated Copper Bus Bar or Insulating Coatings Bus Bar, to form a continuous insulation layer, further enhancing system stability.

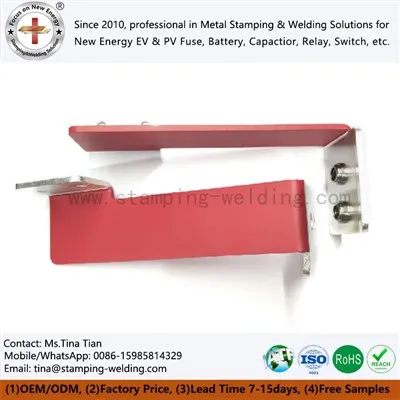

Customized parameters are also crucial in busbar insulation design. The busbar size, voltage level, and operating environment of different equipment all influence the insulation structure design. For example, higher levels of insulation protection are typically required in high-humidity or salt spray environments. To ensure the integrity of the insulation structure, liquid silicone injection molding or polymer insulating coating technologies are often used in the manufacturing process. These processes create seamless structures, reducing the risk of partial discharge. Some systems also utilize Busbar Insulation Paint or Epoxy Powder Coating Insulated Copper Busbar processes to form a uniform and dense insulation layer on the conductor surface, thereby improving overall withstand voltage performance and mechanical protection capabilities.



With the rapid development of new energy equipment and energy storage systems, busbar insulation technology is gradually evolving from traditional mechanical protection to integrated insulation solutions. Especially in electric vehicles, battery energy storage, and high-voltage power distribution systems, the technology of forming insulation layers through spraying or powder coating is becoming increasingly common. For example, structural designs employing Epoxy Powder Coated Busbar Insulation or Epoxy Spray Copper Battery Bus Bar not only provide stable insulation performance but also improve the busbar's corrosion resistance and long-term operational reliability.



In modern power system design, the rational selection of busbar insulation structure, materials, and manufacturing processes is a crucial step in ensuring the safe and stable operation of electrical equipment. Different application scenarios have varying requirements for insulation systems, necessitating comprehensive consideration of voltage levels, environmental conditions, and maintenance needs from structural design to material selection. Through scientific insulation design and high-quality manufacturing processes, the safety and service life of busbar systems can be significantly improved.



As a manufacturer specializing in electrical connectors for the new energy industry, we have long provided a variety of high-reliability busbar product solutions, including Insulated Copper Bus Bars, Epoxy Powder Coated Busbars, and Epoxy Spray Copper Bus Bars. Through mature insulation coating processes and a rigorous quality control system, we can provide stable and reliable busbar connection solutions for industries such as energy storage systems, electric vehicles, and power distribution equipment, helping customers achieve safer and more efficient power transmission in high-power electrical systems.
