Detailed explanation of Braided Copper Wire Connector industry knowledge

In the field of electrical connections, copper braided wire/copper tape soft connections are known as key flexible conductive components and are specially used to connect metal parts that cannot be rigidly fixed. Its core mission is to ensure excellent conductivity while effectively absorbing vibration, thermal expansion, contraction and displacement generated during equipment operation, and preventing loose connections, poor contact or even breakage caused by stress concentration. This flexible structure is like a "shock-absorbing buffer zone" in the electrical system, ensuring stable transmission of current and is widely used in high and low voltage switch cabinets, rectifier equipment, frequency converters and new energy fields.

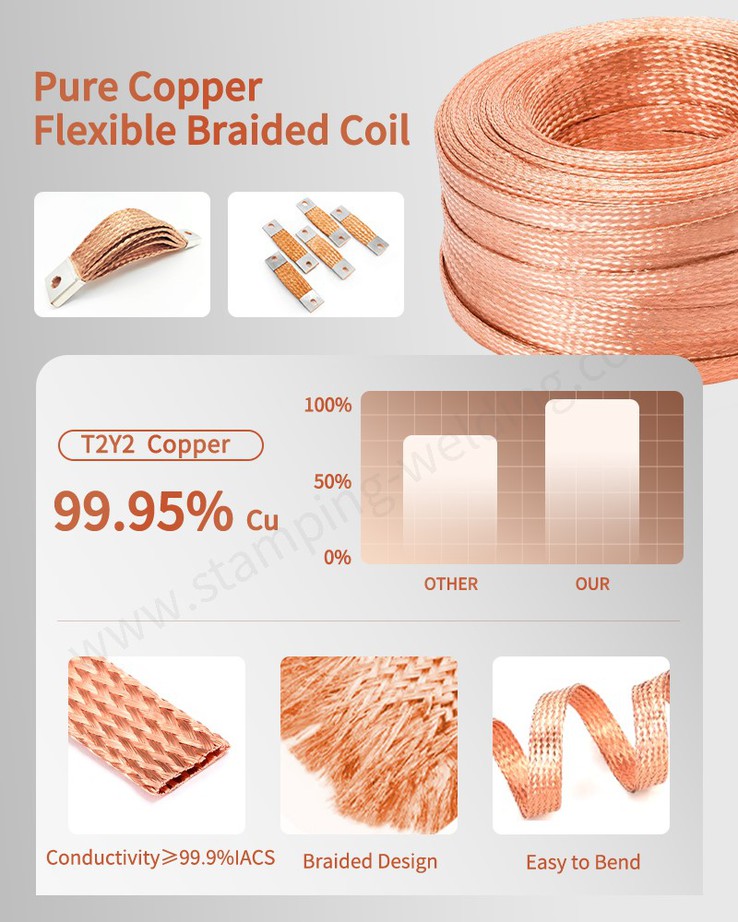

Materials and processes are the basis for determining the performance of soft connections. Industrial-grade Flex Connectors usually use high-purity T2 oxygen-free copper (OFC) as the base material, with a copper content of up to 99.95% or more to ensure extremely low resistivity and excellent oxidation resistance. To further improve performance, many applications use tin or silver plating. The tin plating layer can effectively prevent oxidation and corrosion of copper materials and adapt to humid environments; while the silver plating treatment can further reduce contact resistance and improve conductive efficiency, which is especially suitable for high-frequency or high-precision equipment. This strict control of materials is the prerequisite for ensuring long-term stable operation of connectors.

In terms of structural form, it is mainly divided into two forms: braided and twisted. Copper power braid is precision-woven from multiple strands of fine copper wire, which has excellent flexibility and fatigue resistance and can withstand tens of thousands of dynamic bends. The copper-stranded soft connection is made of multiple strands of fine copper wires and also has good stretchability. Whether braided or twisted, its unique structure can effectively increase the surface area of ​​the conductor and improve the uniformity of current distribution, thereby reducing the loss caused by the skin effect and ensuring safety under large current transmission.

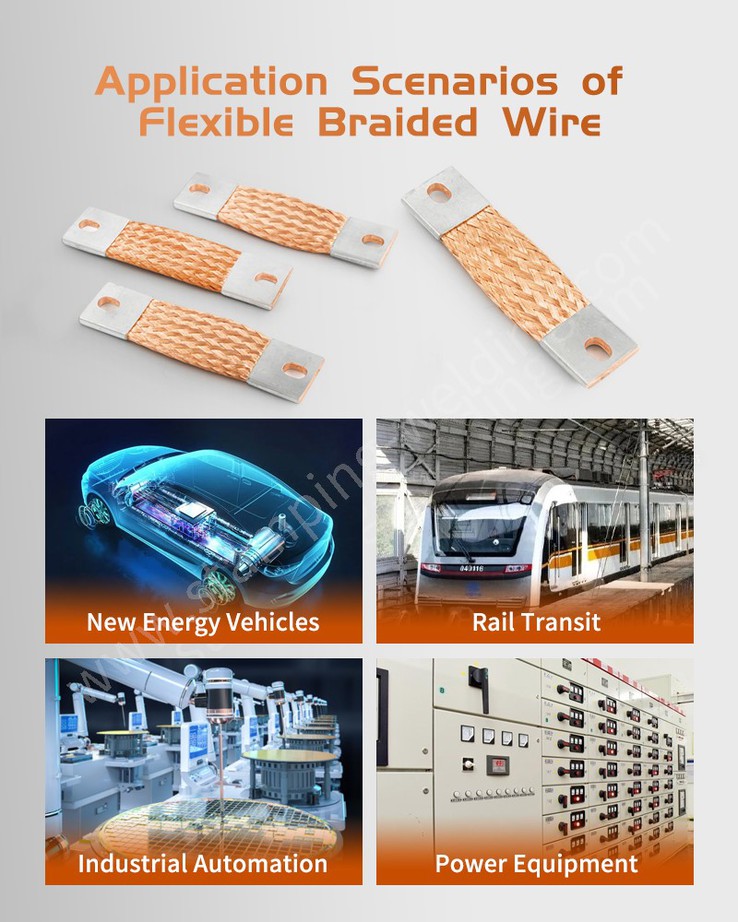

From the perspective of application scenarios, Flat Copper Braided Flexible Connectors/copper tape soft connections are "standard" components in many fields. In high and low voltage switch cabinets and distribution boxes, the connection between the main busbar and the circuit breaker must be reliable and detachable. The soft connection can avoid bolt loosening caused by thermal stress and prevent safety accidents. The instantaneous current of the inverter and servo driver is very large when starting, and the soft connection can absorb the impact current and protect the IGBT module from breakdown; In new energy charging piles and energy storage systems, the operating current of DC fast charging piles can reach more than 200A, and soft connections are the key to ensuring safe operation; in industrial automation production lines, frequently moving equipment such as robot arms and conveyor belt drives need to rely on Round Stranded Flexible Cords to achieve stable conduction and avoid rigid connection breakage. It should be noted that ordinary wires or bare copper wires cannot withstand repeated impacts of large currents and cannot replace soft connections, otherwise it may cause fire or equipment damage.















































































In actual selection, the following equipment scenarios have rigid requirements for Copper Stranded Flexible Connection: between the main busbar and the circuit breaker in the high and low voltage distribution cabinets, a detachable, thermal stress-resistant flexible connection solution must be used to avoid electrical accidents caused by loose bolts; at the output end of the power module of the inverter and servo drive, the instantaneous current when the motor starts is large, and the soft connection can absorb the impact current. Protect power semiconductor devices; the continuous operating current of new energy DC charging piles and energy storage systems often exceeds 200A, which is difficult for ordinary cables to handle, and flexible busbars must be used; for moving parts in industrial automation production lines, such as robot arms and transmission drives, rigid connections are prone to fatigue fractures, and the flexible connection method of copper braided wires can adapt to frequent movements. It is strictly prohibited to use ordinary bare Copper power braid or general-purpose cables to replace dedicated flexible connections. Such practices will significantly increase the risk of fire and equipment damage.





We focus on providing high-quality Braided Copper Wire Connector solutions, and we are committed to providing customers with a safe and reliable connection experience through exquisite craftsmanship and strict quality control. Welcome to contact us for professional technical support and product selection suggestions.
