PVC Dipped Insulated Bus Bar industry knowledge

PVC cable material is compounded of polyvinyl chloride resin, stabilizers, plasticizers, fillers, lubricants, antioxidants, colorants and other components. Among them, the selection of components related to the PVC dipping process directly affects the performance of subsequent products. PVC cable material has good voltage resistance and insulation resistance, but its dielectric constant and dielectric loss are relatively large, so it is mainly used in the insulation layer of low-voltage (≤ 1kV) and medium-high-voltage (6~10kV) cables. PVC plastic itself is flame-retardant, oil-resistant, corona-resistant, chemical corrosion-resistant and has good water resistance, which also makes it the first choice for wire and cable sheathing materials. Some of these properties can be transferred and applied to the preparation of the insulation layer of PVC Coated Bus Bars.

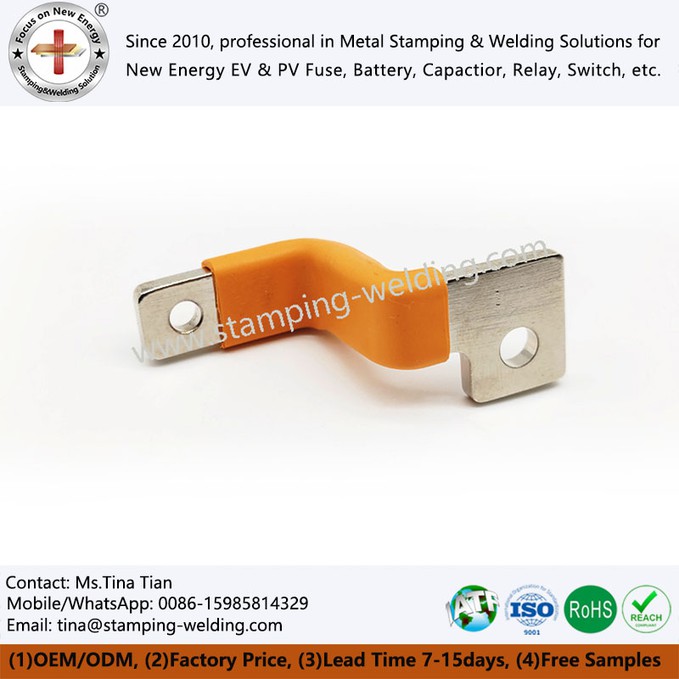

Rigid busbars are made of 99% T2 copper, which has excellent mechanical strength and rigidity and can withstand high stress without deformation. PVC insulation has good wear resistance and weather resistance, making these insulated busbars ideal for complex environments that require high strength and stable power transmission and distribution.

High mechanical strength is one of the significant advantages of rigid copper busbars. Rigid copper busbars have high mechanical strength and rigidity and can withstand large mechanical stress without deformation, making them suitable for applications requiring high mechanical strength. In power transmission systems, Busbar Isolation technology can effectively prevent electrical interference between buses and ensure the stability of system operation. Excellent electrical conductivity is also its core competitiveness. Due to its high density and purity, rigid copper busbars conduct electricity better than traditional cables, reducing energy loss during transmission and increasing system efficiency.

Good wear resistance is another major feature of PVC-dipped insulation. PVC-impregnated insulation has excellent wear resistance, effectively protects copper busbars from mechanical damage and extends their service life. In new energy battery modules, the Battery Bus Bar is a key connection component, and the wear resistance of its insulation protective layer directly affects the reliability of the entire system. Strong weather resistance makes the PVC insulation layer have good weather resistance and can prevent ultraviolet rays, rain and chemical corrosion, making it suitable for outdoor or harsh environments. For PVC Coated Bus Bars, weather resistance is an important prerequisite for their wide application in outdoor power distribution systems.

Beautiful and clean are additional advantages of PVC insulation. The PVC insulation layer fits well with the special-shaped copper busbar, has good coverage, and has a smooth surface, which improves the appearance and cleanliness of the busbar. Easy installation is also an important feature of rigid busbars. Rigid busbars typically come in standardized sizes and shapes, making them easy to install and connect, improving construction efficiency and reducing installation time and costs. Within the power distribution cabinet, the rational layout of busbar supports is closely related to the convenience of busbar installation, which can significantly improve the overall assembly efficiency.

























































PVC-insulated copper busbar has obvious advantages in mechanical strength, electrical conductivity, wear resistance, weather resistance, heat dissipation, ease of installation, etc., making it an ideal choice for high-demand electrical systems. In data centers, substations, industrial plants and new energy storage systems, the combination of Soft Connection Copper Busbar and rigid busbar can meet different space layout and electrical connection needs.

For customers who need customized solutions, the Plastic Dipping Electric Copper Busbar Custom Made service can provide personalized product design and manufacturing based on specific electrical parameters, size requirements and installation environment. In the internal connection of the battery module, Dipping Busbar for Connection uses a precise dipping process to ensure that every connection point has reliable insulation protection and stable electrical performance.

In addition, Dip Insulated Busbar technology also has important application value in the field of high-voltage power distribution. Its uniform insulating coating can effectively prevent creepage and flashover phenomena and improve the safety margin of the system. In some scenarios that require higher conductivity and corrosion resistance, the Tin Coated Insulated Flat Copper Bus Bar for Battery further improves the oxidation resistance and welding performance of the busbar through tin plating.

For applications that require both flexibility and insulation properties, the PVC Dipped Laminated Flexible Copper product combines multi-layer copper foil superposition with the PVC dipping process, which not only maintains a good conductive cross-section but also has excellent bending adaptability. It is especially suitable for vibration environments or electrical equipment that requires frequent maintenance.













































































In terms of material standards, rigid busbars usually use T2 copper or other specified high-purity copper materials. Surface treatment processes include bare, tin-plated, nickel-plated, and other methods to meet the anti-corrosion and conductive needs of different application scenarios. The insulation part adopts a PVC dipping process to ensure a tight combination between the insulation layer and the copper busbar. The operating temperature range is generally -40℃ to 125℃, which can adapt to the requirements of most industrial and outdoor environments.

In the field of power batteries, Insulated Flexible Copper Bus Bar for Power Battery Pack has become a mainstream solution for battery module connections in new energy vehicles due to its excellent flexibility and insulation properties. In traditional power distribution systems, Plastic Dipping Copper Busbar is widely used in various types of low-voltage and medium-voltage power distribution equipment due to its cost advantages and reliable insulation protection.



























































Our company focuses on providing high-performance PVC Dipped Insulated Bus Bar and flexible connection solutions that support on-demand customization and are suitable for fields such as new energy, power transmission and distribution, and industrial automation. Welcome to consult and cooperate.
