High voltage End cap and contact for new energy vehicles: technical advantages and application prospects

In the high-voltage power supply system of new energy vehicles, the Tin plated copper end caps in the fuse assembly are key connecting components of the power battery pack top cover, responsible for ensuring the safe electrical connection between the battery unit and the external circuit.

This contact point is not only a bridge for efficient collaboration between battery management systems and vehicle controllers, but its performance is also directly related to the stability of power transmission and operational safety of the entire vehicle. By effectively cooperating with the contact components of the car fuse, Design of welded joints help achieve continuous and stable operation of high-voltage power systems.

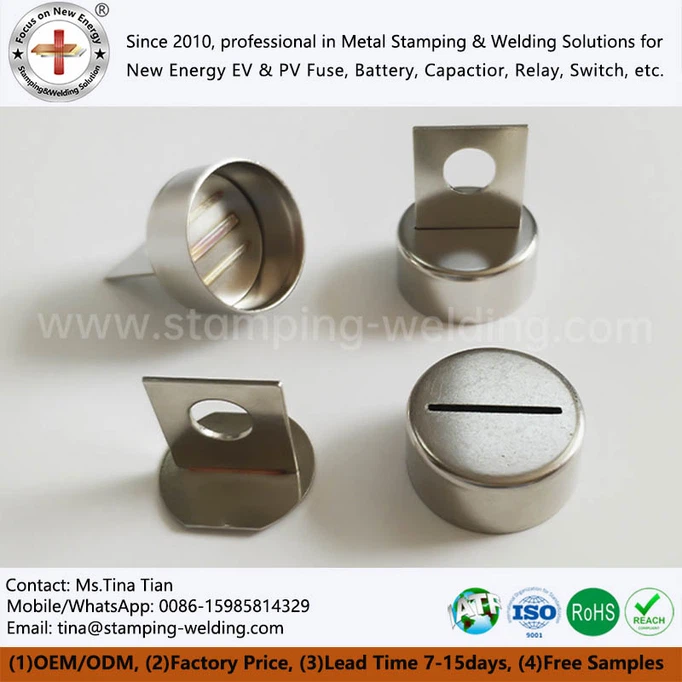

The End cap and contact are made of high-purity copper material and have been designed with precision cutting and structural optimization to expand the contact area for current transmission, effectively reducing voltage drop and heat loss during high current transmission. This design can meet the fast charging requirements of the 800V high-voltage platform for new energy vehicles, ensuring efficient power transmission.

The sealing cover adopts a cylindrical or square cylinder structure, which is precisely matched with the fuse ceramic tube. Combined with strengthened sealing technology, it can effectively isolate pollutants such as moisture and dust, and prevent battery electrolyte leakage. In addition, the connection layer achieves a firm connection between the Fuse cap and contact and the cover body through brazing or spot welding processes, supplemented by structural locking components to enhance overall vibration resistance and avoid poor contact or loosening caused by high-frequency vehicle vibration.

In the power battery pack, the End cap and terminal serve as the last line of defense for short circuit protection of the main circuit, stably connecting the battery to the external circuit to ensure safe power transmission and reduce the risk of short circuit. In the DC fast charging port, especially in the 800V high-voltage fast charging scenario, this component can withstand instantaneous high current surges, provide reliable safety circuit breaking function, and help improve charging efficiency and safety.

In the motor controller, End cap contact can effectively protect precision electronic components such as inverters from surge current damage, ensuring efficient operation of the motor control system and achieving stable power output.

As the 800V high-voltage platform gradually becomes mainstream, Outer cap and contact are upgrading towards higher rated voltage, lower contact resistance, and stronger environmental adaptability. Some new designs are beginning to integrate temperature or current monitoring interfaces to enhance the real-time sensing capability of vehicle battery management systems.

At the same time, lightweight and high integration have become important directions for optimizing Outer cap and terminal in the future, driving the continuous evolution of components in terms of security and performance.

If you need to further understand the technical parameters or customized solutions of the End cap and contact, please feel free to contact us at any time. We will provide you with professional technical support and services.
