Multi Layers Copper Foil Flexible BusBar enables a new upgrade in high-current conductive connections

As new energy, power equipment, and high-end industrial manufacturing continue to upgrade towards higher power, higher density, and higher reliability, traditional rigid conductive connectors are gradually becoming unable to adapt to complex working conditions and precise installation requirements. A high-performance flexible conductive component-Multi Layers Copper Foil Flexible BusBar-has become the preferred solution in the field of high current transmission due to its unique structure and comprehensive performance advantages, and has also provided a new direction for the iteration of conductive connection technology in the industry.

From the perspective of core structure and processing technology, the base layer of the multi-layer copper foil flexible busbar is composed of stacked ultra-thin copper foil or copper strips with a thickness of 0.1mm to 1mm. This multi-layer thin-film structure is the key to its outstanding performance. The end connection process is divided into two categories. One is solderless molecular diffusion welding, which uses high temperature and high pressure to achieve metallurgical bonding of copper atoms at the contact surface, resulting in extremely low conductivity loss and extremely strong connection stability. The other is brazing and pressing process, which uses special brazing filler metal to press multiple layers of copper foil together to create a robust and durable connection terminal. To further improve durability and conductivity stability, the terminal surface is often treated with tinned copper busbar, also known as tin plated copper busbar, which enhances corrosion resistance and effectively reduces contact resistance. The outer layer of the product is covered with a flame-retardant and pressure-resistant insulating sleeve, comprehensively improving safety and meeting the safety specifications of various power and new energy scenarios.

Compared to ordinary cables of the same cross-sectional area, Copper BusBars have a stronger current carrying capacity, and their compact sheet structure saves installation space, making them suitable for high-density equipment integration needs. The multi-layer thin sheet design provides a larger heat dissipation area and higher heat dissipation efficiency compared to a single thick copper busbar, which can avoid overheating problems caused by long-term transmission of high current and ensure the continuous and stable operation of equipment. This feature is particularly prominent under high-frequency and high-power conditions, effectively mitigating the performance loss caused by the skin effect.

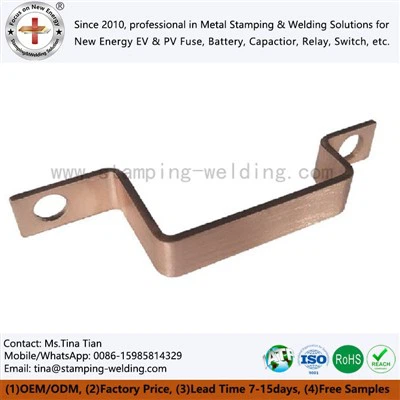

Currently, these flexible busbar products have achieved large-scale application in multiple fields, covering several high-requirement core scenarios. In the new energy sector, the Automotive Copper Busbar is a core application area, widely used for connecting electric vehicle battery pack modules, drive motor systems, and charging pile equipment, adapting to the special operating conditions of high voltage, high current, and high vibration in vehicles. In the power equipment field, the Flexible copper laminated busbar is mainly used for flexible conductive connections between high and low voltage switchgear, distribution panels, transformers, and motors, ensuring stable and reliable power transmission.

With the continuous development of the new energy industry and high-end manufacturing, the demand for high-current, high-reliability, and flexible conductive connections will continue to rise. Multi Layers Copper Foil Flexible BusBar, with their unique technological advantages and scenario adaptability, are expected to be applied in more industrial and consumer sectors in the future, helping to upgrade the performance of related equipment and promote high-quality development of the industry.

For product parameters, customization options, and compatibility selection of Multi Layers Copper Foil Flexible BusBar, please feel free to contact us for professional technical support and detailed cooperation consultation.
