Technical system and application analysis of Energy storage system cabinet

The Pylontech us5000 cabinet is a device specifically designed for storing electrical energy, consisting of a battery pack, inverter, control chip, and other core components. The main function is to store electrical energy when the power supply is sufficient, and release electrical energy during peak demand or insufficient power supply. With advantages such as high energy density, fast response, and long service life, Solar battery storage cabinets have become a key component of modern energy systems.

The Energy storage system cabinet mainly consists of battery modules, battery management system (BMS), inverter, control system, cooling system, as well as casing and connectors. The battery module is the core of energy storage, and common types include lithium-ion batteries, lead-acid batteries, etc; BMS is used to monitor battery status, manage charging and discharging processes, and implement overcharge, overdischarge, and overcurrent protection; The inverter is responsible for converting DC power into AC power for external use; The control system realizes operation monitoring and energy scheduling; The cooling system ensures that the equipment operates within a safe temperature range.

In terms of working principle, Battery energy storage cabinet is mainly used for power grid peak valley balance, backup power supply for generator sets, smoothing of wind and solar power generation, and emergency power supply for microgrids. When the electricity consumption of the power grid is high, the energy storage cabinet converts the stored electrical energy into AC power output through a converter, providing support for the power grid; When the power consumption of the grid is low, the charging control module obtains electrical energy from the grid or renewable energy generation equipment for storage. During the charging process, the system detects the battery status in real-time and achieves balanced charging to extend the battery life; During the discharge process, a suitable AC or DC power supply can be output according to the load demand.

According to its structural form, Pylontech energy storage cabinets are mainly divided into the following types: discrete energy storage cabinets, where each component is independently placed inside the cabinet and connected by cables, with low failure rates and easy maintenance and expansion; Combination energy storage cabinet, with each functional module installed in an independent cabinet, can be freely combined according to needs, with high flexibility; Base type energy storage cabinet, with batteries and power electronic equipment installed on a sealed base, can be directly deployed outdoors, occupying a small area and easy to install; Integrated energy storage cabinet, with all components integrated into one cabinet, compact structure, easy to move and quickly deploy, suitable for mobile energy systems or small power grids. In addition, lithium iron phosphate energy storage cabinets are widely used in small and medium-sized commercial and industrial power environments due to their high safety and long cycle life.

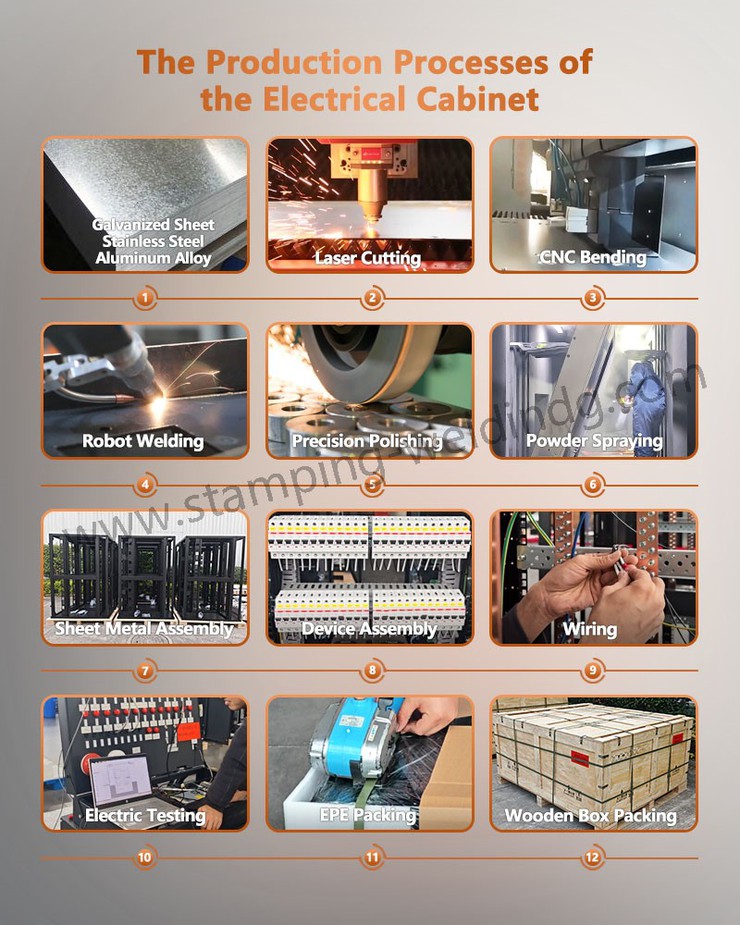

In terms of production process, Outdoor energy storage cabinets usually include the following steps: designing and engineering planning based on customer needs, determining capacity, battery types, and control systems; Purchase materials such as batteries, electronic components, and metal casings; Manufacturing battery modules BMS, Control panel and other components; Complete the assembly of the entire machine and conduct functional and performance testing; Implement quality control to ensure compliance with standard specifications; On site installation, debugging, and operational verification; And provide after-sales service and technical support to ensure the long-term stable operation of the system.

Liquid cooled energy storage cabinets play an important role in multiple scenarios. In home settings, it can be used to store new energy sources such as solar and wind power as backup power sources for power outages or remote areas, and help reduce electricity costs. In commercial areas, energy storage cabinets provide backup power and grid peak regulation for commercial facilities, enabling rapid power supply in the event of grid failures while reducing electricity bills during peak hours. In industrial areas, through centralized management and scheduling, energy storage cabinets help balance the power system, store energy, and provide backup power, improving energy efficiency and power supply reliability.

In addition, CCS cabinets are widely used in communication base stations, data centers, and transportation facilities. In communication base stations, it serves as a backup power source to ensure signal transmission in case of power grid failures; In data centers, provide stable backup power for servers, networks, and cooling systems, and store electricity during periods of low electricity prices to reduce energy costs; In transportation facilities such as subways, bus stations, and highways, energy storage cabinets ensure the continuous operation of key equipment in case of power grid abnormalities, ensuring the normal operation of the transportation system.

If you need to further understand the selection schemes, system configurations, or project implementation support of the Energy storage system cabinet in different scenarios, please feel free to contact us for professional advice. We will provide targeted technical solutions and full cycle service integration based on your actual electricity needs and application environment.
