Sheet Metal Stamping Parts
The Sheet metal stamping parts are fluid purification interface and structural support in the engine lubrication system, fuel system, and intake system. It serves three functions in the oil filter element: supporting filter paper folds, guiding bypass valves, and intercepting pollutants. Can maintain the synergy between opening accuracy, structural stiffness, and corrosion resistance life under cyclic pressure pulsation composite working conditions.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

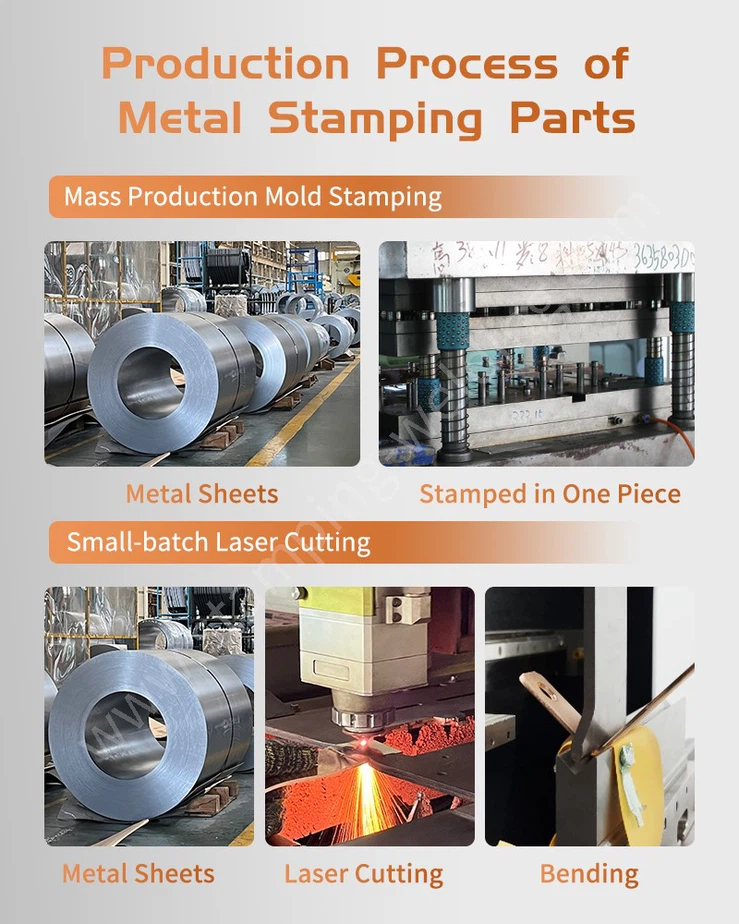

Sheet metal stamping parts are functional steel components formed through precision cold stamping technology, with SGCC hot-dip galvanized steel plate as the core substrate. They can be customized to various types of steel such as low carbon steel, medium carbon steel, alloy steel, etc. according to working conditions. During the production process, the press machine and customized molds apply controllable mechanical pressure to steel plates and strips, causing directional plastic deformation or separation cutting of materials, and completing complex structures such as punching, bending, flanging, stretching, and hollow mesh holes in one piece, accurately adapting to the filtration, diversion, support, and protection structures of automotive air filters, oil filters, fuel filters, and air conditioning filters.
Key technical parameters for engineering selection
dimensional accuracy
The standard precision range for Sheet metal stamping parts is ± 0.1mm to ± 0.3mm. High precision filters and structural components made using high-end molds and precision stamping processes can have tolerances controlled within ± 0.03mm, meeting the assembly requirements.
01
plate thickness
The thickness selection range of Custom metal stamping parts is wide, ranging from a minimum of 0.1mm ultra-thin steel sheet to a maximum of 20mm thick walled structural components; Thin gauge plates are commonly used to balance the permeability and overall rigidity of the filter.
02
Hardness index
Precision metal stamping maintains a Brinell hardness of 100-250HB; high carbon steel parts strengthened by quenching and tempering heat treatment have a Rockwell hardness of HRC 55 or higher, suitable for long-term use in wear-resistant conditions.
03
yield strength
Low carbon steel yield strength 200-300MPa, medium carbon steel 300-500MPa; High strength alloy steel, after special treatment, can have a yield strength exceeding 1000MPa, effectively resisting plastic deformation caused by static loads.
04
Engineering purpose positioning
Oil filter element filtration
Steel welding stamped parts can intercept impurities such as metal shavings and carbides in engine oil, prevent oil blockage, and protect engine bearings and piston rings.
Air filter filtration
Progressive die stamping can prevent dust and sand from entering the intake system, avoiding cylinder wear and ensuring fuel combustion efficiency.
Fuel filter filtration
Progressive die heavy metal stamping can filter out moisture and particulate matter in the fuel, prevent nozzle blockage, and improve engine stability.
Production advantages
Controllable quality of raw materials
Custom carbon steel stamping strictly selects SGCC hot-dip galvanized steel plates and various specifications of carbon steel raw materials, and conducts mechanical property sampling at the factory. Standardized board pretreatment, removing oil stains and oxide layers.
01
Precision molds and stable stamping
The Strength metal stamping parts are produced using exclusive customized molds, with reasonable control of mold gaps to ensure stable dimensional accuracy. Integrated stamping forming reduces secondary processing errors and enhances batch interchangeability of parts.
02
Strong process adaptability
Optimize stamping parameters for galvanized sheet metal and high-strength carbon steel to effectively avoid coating damage, material cracking and forming defects. It can process multi-specification plates ranging from thin to thick, fully meeting customized production demands for auto filter cartridges, filter screens.
03
Whole process quality control
Supervise the entire process from molding, shaping to surface treatment to eliminate internal stress during processing. Unified size and appearance inspection of Sheet metal stamping parts products, strict control of factory yield, and reduction of later use failures.
04
contact us
Xiamen Apollo Stamping Welding Technology Co., Ltd is a professional service provider for new energy metal processing solutions. We can help you accurately match your needs and maintain the bottom line of device safety. Welcome to consult us.
