Prismatic Cell Aluminum Shell
Deep Drawing Aluminum Battery Shells: Manufactured using 3003-H14 aluminum alloy for high strength-to-weight ratios in LiFePO4 battery enclosures.
Precision Wall Thickness Control: Multi-stage deep drawing ensures consistent wall thickness tolerances down to 0.02 millimeters across deep cavities.
Laser Welding Compatibility: Clean surface metallurgy optimizes laser beam absorption for defect-free automated laser welding.
Hermetic Sealing & Pressure Safety: 100 percent helium leak tested with controlled burst pressure validation on top covers.
Custom OEM & ODM Engineering: In-house tooling development, DFM optimization, and PPAP Level 3 documentation for EV and ESS programs.
IATF 16949 Quality Management: Automotive-grade production with in-line optical and CMM dimensional inspection.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Prismatic Cell Aluminum Shell operate under rigorous mechanical stress, thermal cycling, and internal pressure demands in modern energy storage and EV platforms. As a specialized source manufacturer, Xiamen Apollo Stamping Welding Technology Co., Ltd provides high-precision deep-drawn aluminum battery shells tailored for LiFePO4, NCM, and custom prismatic cell configurations. Utilizing multi-station hydraulic press lines and high-grade 3003/3005 aluminum alloys, we maintain precise wall thickness consistency, sharp radii control, and flat bottom geometries to prevent swelling during electrochemical operation. Our integrated tool design team optimizes drawing steps to eliminate material thinning and structural micro-cracks, ensuring high structural integrity for modular and cell-to-pack (CTP) battery systems.
Product features
Superior Temperature Adaptability
The prismatic cell aluminum shell features exceptional wide-temperature performance (-30°C to 60°C), making the aluminum shell for lithium ion battery cell ideal for extreme environments. Its advanced thermal management system ensures stable operation in both freezing winters and scorching summers, perfect for outdoor energy storage and electric vehicles in harsh climates.
Enhanced Safety & Reliability
Engineered with multiple protection mechanisms, the lithium cell battery aluminum shell incorporates explosion-proof vents and short-circuit prevention. Its robust aluminum casing provides superior impact resistance and structural integrity, meeting strict international safety standards for worry-free operation.
Optimized Energy Efficiency
The li cell aluminum shell utilizes high-density electrode design to maximize energy output while minimizing size. With low internal resistance and high discharge efficiency, it delivers consistent power for applications requiring long runtime and compact solutions.

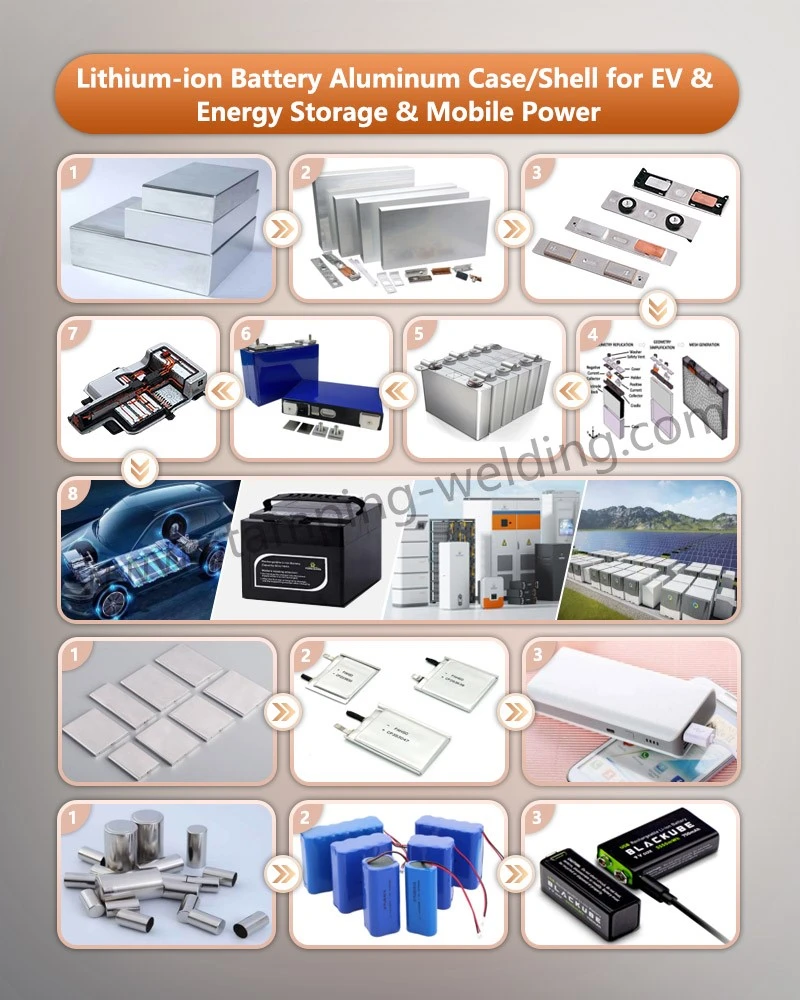

Application Fields
Electric Vehicles (EVs)
The lithium cell aluminum shell is widely used in electric cars, buses and trucks due to its high energy density and excellent thermal performance. Its durable construction ensures reliable power supply for vehicle propulsion systems, supporting fast charging and long driving ranges.
Energy Storage Systems (ESS)
For residential and industrial energy storage, the aluminum shell for lithium ion battery cell provides stable performance with its wide temperature tolerance (-30°C to 60°C). It's ideal for solar/wind power storage, grid stabilization and backup power solutions.
Industrial Equipment
The lithium cell battery aluminum shell powers heavy machinery, marine equipment and telecom devices with its vibration resistance and long cycle life. Its robust design withstands harsh operating conditions in mining, construction and marine applications.
Frequently Asked Questions
Q: How do you prevent sidewall thinning and wrinkling during deep drawing of tall Prismatic Cell Aluminum Shell?
A: We use multi-station progressive dies paired with precise blank holder force control and specialized synthetic lubricants. Finite element analysis (FEA) during tool design allows us to optimize draw ratios and inter-stage annealing, maintaining wall thickness within ±0.02mm.
Q: What surface preparation is applied to ensure defect-free laser welding with the top cover?
A: Shells undergo multi-stage ultrasonic degreasing, acid etching, and deionized water rinsing to remove all drawing oils and oxide films. This process yields a clean surface state that eliminates porosity and cracking during high-speed laser welding.
Q: Can you develop custom tooling for non-standard cell dimensions or specific OEM designs?
A: Yes. Our in-house tool design and precision machining center (utilizing WAIDA optical profile grinding and slow-wire EDM) manufactures custom dies. We convert STEP files into functional prototypes and PPAP Level 3 production within short lead times.
Contact Us
Submit your 2D/3D CAD drawings (STEP, IGES, or DWG formats) alongside target annual volumes for a comprehensive DFM review, material utilization analysis, and direct factory quote within 24 hours.
