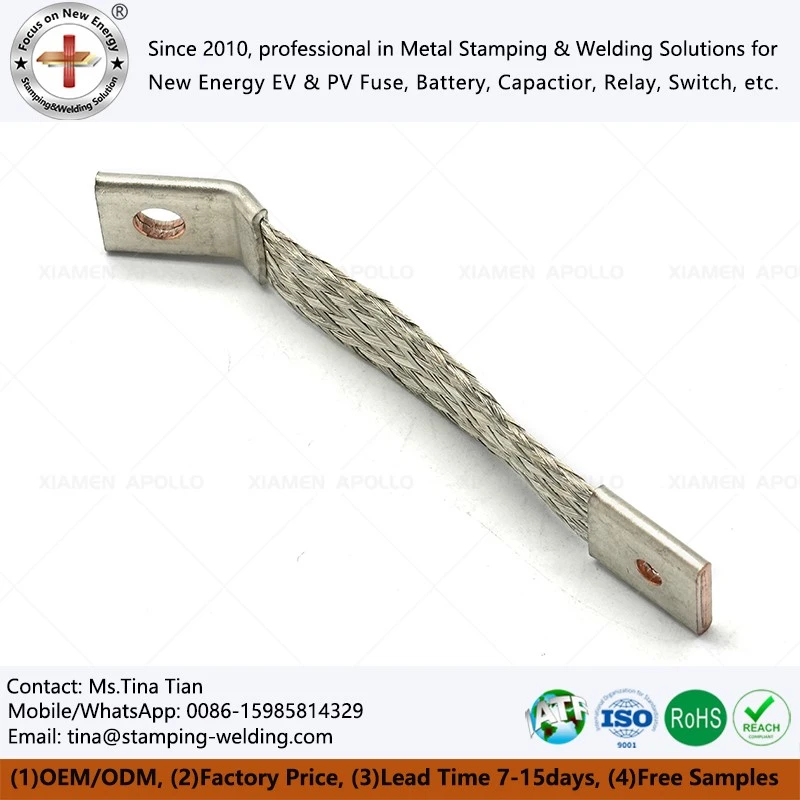

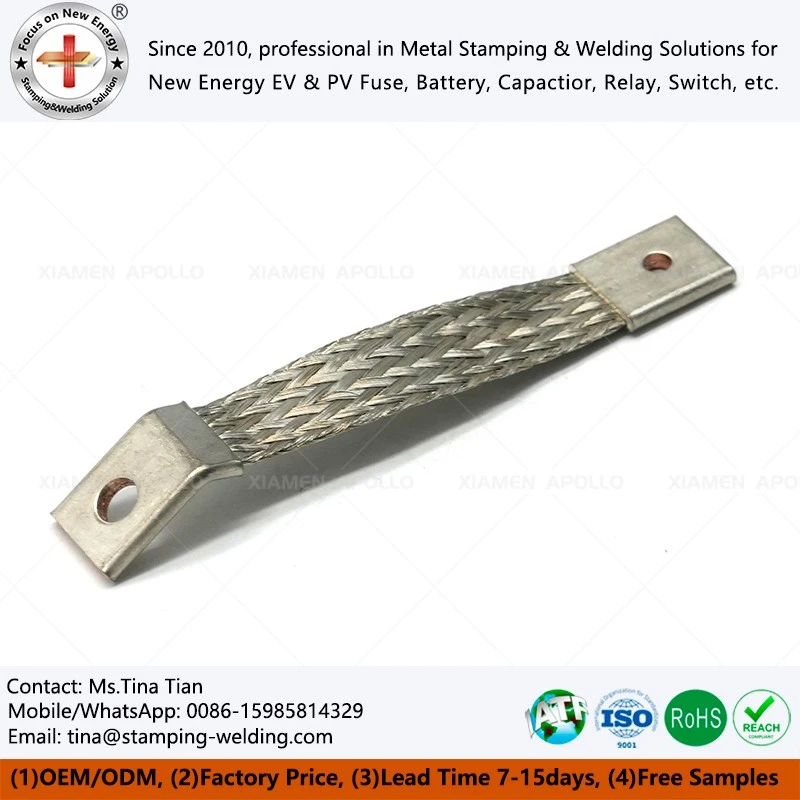

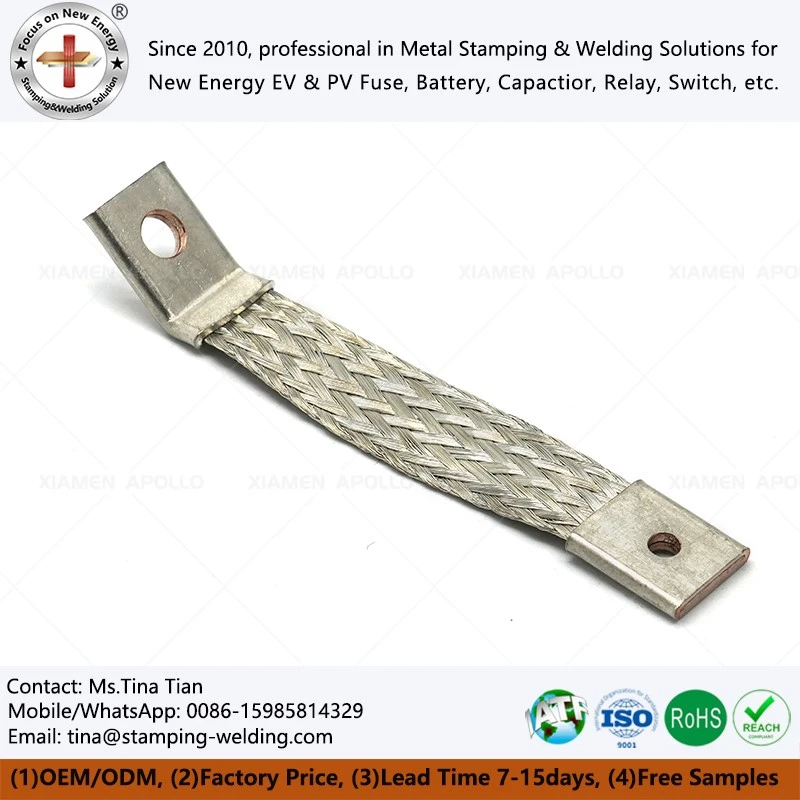

Flexible Conductive Tin Plated Copper Braided Wire Connector
The Flexible Conductive Tin Plated Copper Braided Wire Connector provides flexible current and grounding connections for EV battery packs, ESS, switchgear, transformers, and solar PV systems. In-house braiding, terminal forming, welding, tin plating, and testing support customized production, with IATF 16949 and ISO 9001 quality systems for consistent batch delivery.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Flexible Conductive Tin Plated Copper Braided Wire Connector is designed for electrical connections that require current conduction with controlled mechanical flexibility. Multi-strand copper wires form the flexible conductor, while tin plating helps protect the copper surface against oxidation and supports stable contact performance. The connector can be supplied with welded, crimped, formed, or drilled terminals according to the installation design.For applications requiring repeated movement, vibration absorption, or thermal expansion compensation, the braided structure allows controlled flexing without relying on a rigid copper bar.
Technical Specifications of Flexible Conductive Tin Plated Copper Braided Wire Connector
| Parameter | Typical / Available Specification |
|---|---|
| Conductor Material | Soft copper / T2 / C1100 |
| Electrical Conductivity | Up to ≥99.9% IACS for applicable copper grade |
| Surface Treatment | Tin plated |
| Braid Construction | Single or multi-layer |
Applications of Flexible Conductive Tin Plated Copper Braided Wire Connector
EV Battery Pack Module Interconnects
Serves as a flexible bridge between battery cells and high-voltage distribution units (PDUs) to prevent terminal cracking caused by road shock and thermal deformation.
Commercial Energy Storage Systems (ESS)
Provides safe, high-current flexible connections between battery racks, circuit breakers, and power conversion systems (PCS) for Soft Copper Tinned Wires.
Industrial Transformers & Switchgear
Used as a tinned copper braid wire grounding jumper and main earthing link to handle short-circuit faults without mechanical degradation.
Solar PV Combiner Boxes & Inverters
Serves as braid copper flexible tinned copper braided connector links in outdoor units requiring high corrosion resistance under humid environmental conditions.
Quality Assurance & Testing of Flexible Conductive Tin Plated Copper Braided Wire Connector
Terminal Pull Test
Tensile testing checks the mechanical strength of crimped or welded terminal connections for Flexible Conductive Tin Plated Copper Braided Wire Connector.
Tin Plating Inspection
Tin-plated surfaces are inspected for coating coverage and consistency to support oxidation resistance.
Welding Quality Control
Welded terminals are inspected for joint integrity, weld consistency, and connection stability for Grounding Braids Wire Tin Plated.
Frequently Asked Questions about Flexible Conductive Tin Plated Copper Braided Wire Connector
Why is tin plating used on copper braided connectors?
+
-
Tin plating improves surface oxidation resistance and helps maintain stable electrical contact in humid or exposed environments. Grounding Braids Wire Tin Plated are therefore suitable for applications requiring long-term environmental resistance.
Can these braided connectors be used for transformer and switchgear grounding?
+
-
Yes. Tinned Copper Braid Wire Grounding Jumper assemblies can serve as grounding or earthing links in transformers and switchgear. The flexible braid accommodates equipment movement while providing a conductive path during fault-current conditions.
What does the terminal pull test verify?
+
-
The terminal pull test evaluates the mechanical strength of crimped or welded connections. It helps verify that the terminal remains securely attached to the copper braid under mechanical loading and vibration.
How is tin plating quality inspected?
+
-
Braided Tin Coated Copper Flexible Connectors are inspected for tin-plated surface coverage and consistency. The inspection helps identify incomplete coating or surface defects that could affect oxidation resistance and long-term electrical contact.
How is welding quality controlled for braided connectors?
+
-
For welded terminals, Braided Copper Flexible Connector With Tin Ends assemblies are inspected for joint integrity, weld consistency, and connection stability. Weld parameters and finished joints can be verified according to the approved product specification.
Contact Us
Send your 2D/3D drawing, current rating, braid dimensions, terminal requirements and plating specification for engineering review.
We can evaluate the conductor structure, terminal design, manufacturing process and inspection requirements before quotation.
