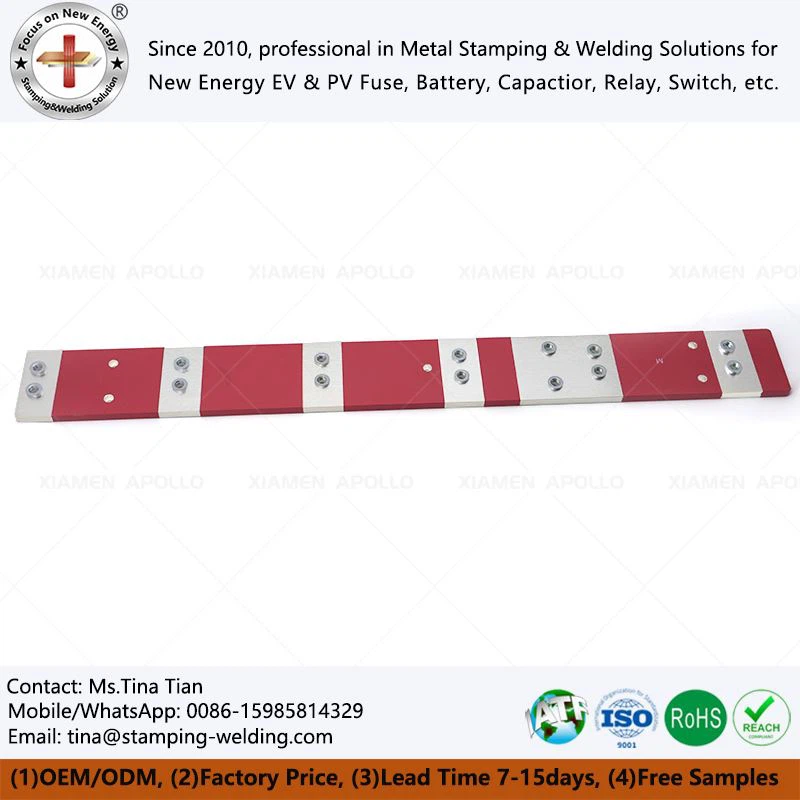

Bus Bar With Insulated Epoxy Powder Coating
In the engineering practice of new energy and power electronic systems, the insulation treatment of busbars is not only related to electrical safety, but also directly affects the thermal management efficiency and power density of the system. Bus Bar with Insulated Epoxy Powder Coating are precision components that use thermosetting epoxy resin materials to form a dense and continuous insulating layer on the surface of copper or aluminum conductors through electrostatic spraying or fluidized bed processes.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Bus Bar with Insulated Epoxy Powder Coating are core transmission components in high-voltage power distribution systems for new energy and power electronics. They use high-purity copper/aluminum as conductor substrates and form a dense insulating layer on the surface through a professional thermosetting epoxy powder coating process, resulting in excellent conductivity, insulation performance, and environmental adaptability.
Core Functions
High-efficiency power distribution

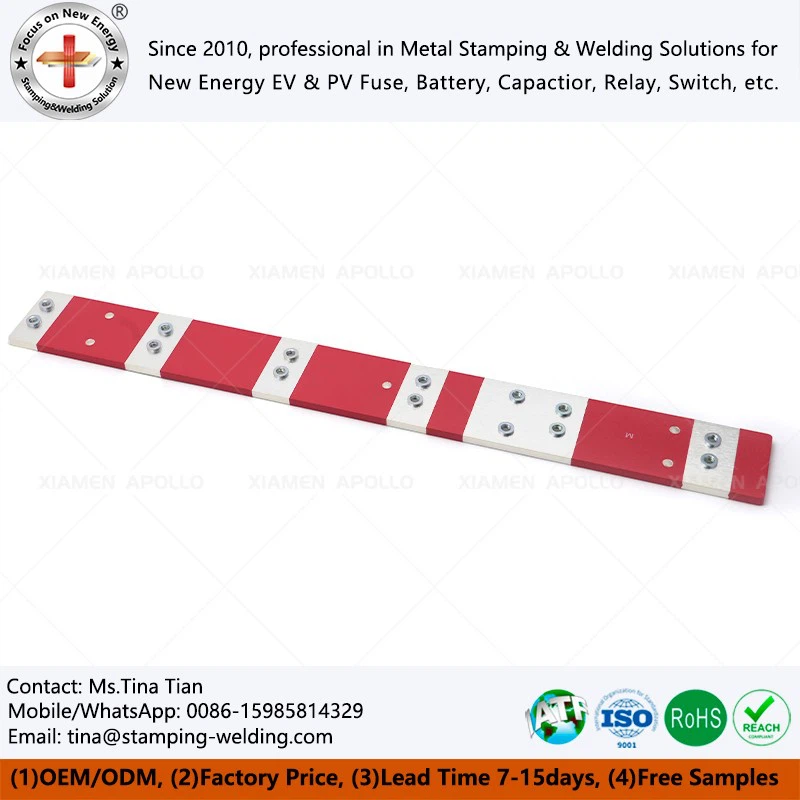

As the backbone of power transmission in new energy systems, the Epoxy Bus Bar Coating can efficiently connect the generator, energy storage unit, and load center. Its high conductivity keeps transmission losses below 0.5%, meeting the needs of energy-saving and consumption-reducing projects.
High-voltage protection
The dense, non-porous insulation layer allows the Nickel-Plated Insulated Bus Bar to withstand 1.5 times its rated voltage, making it suitable for 200V-1500V high-voltage systems. It suppresses voltage spikes and ensures long-term stable system operation.
Environmental adaptability
The epoxy powder insulation layer is resistant to damp heat corrosion, making the Insulated Copper Bus Bar suitable for various harsh engineering environments. It has passed xenon lamp aging tests, with an estimated service life of ≥20 years, reducing later maintenance costs.
Safety protection
By isolating live conductors from the environment, the Tin-Plated Insulated Bus Bar reduces the risk of electric shock and short circuits. With an IP55 protection rating, it meets UL V-0 flame retardant standards, satisfying safety compliance requirements.
Technology adaptability
Voltage Adaptability
The insulation layer thickness can be flexibly adjusted to adapt to 1kV-35kV systems, covering voltage requirements in various scenarios without requiring Epoxy Spray Copper Battery Bus Bar replacement, reducing selection complexity.
Current Adaptability
Conductor cross-sections can be customized, with copper and aluminum substrates capable of carrying 2000A and 1200A respectively, adapting to multi-power systems. The Powder Coated Bus Bars balances cost and transmission performance.
Scenario Adaptability
Multiple structures and coatings can be customized to adapt to various fields and scenarios, compatible with mainstream components, enabling seamless integration into new energy systems.
Packaging and Transportation
To ensure the integrity of the Bus Bar with Insulated Epoxy Powder Coating during warehousing and transportation, guaranteeing the integrity of the insulation layer, conductor structure, and appearance, and meeting the bulk delivery requirements of engineering procurement, we employ customized protective packaging and a professional logistics support system to comprehensively mitigate transportation risks, taking into account the characteristics of the insulation coating needing to be protected against compression and the conductors needing to be protected against deformation. For logistics, we select well-known companies with qualifications for large-item transportation, implementing full-process tracking services. For cross-border and long-distance transportation scenarios, we provide additional reinforcement and protection to prevent cargo tipping and collisions, ensuring that products maintain factory quality standards from the factory to the project site, guaranteeing the timeliness and safety of bulk delivery, and reducing the risk of transportation losses.
Contact Us
If you require product selection, customized pricing, or sample testing services for Bus Bar with Insulated Epoxy Powder Coating tailored to your specific engineering needs, please feel free to contact us. Our professional engineering team will provide you with one-on-one technical support to help you efficiently complete procurement and project implementation.
