Analysis of hdhc tinned copper busbar Performance Characteristics and Application Scenarios

In the fields of power distribution and industrial electrical transmission, various high-performance conductive bar materials are continuously being upgraded. Among them, hdhc tinned copper busbar, with its excellent comprehensive performance, has become a core conductive component in high-current transmission scenarios, widely adaptable to the harsh power conditions in many fields. This type of bar uses copper material with a purity of over 99.9% as its base, relying on the material characteristics of high density and high conductivity. The base material itself has excellent basic electrical and thermal conductivity properties, and at the same time, a tin layer is covered by a surface electroplating process, which, unlike ordinary bare copper conductors, achieves a dual improvement in electrical performance and physical protection performance.

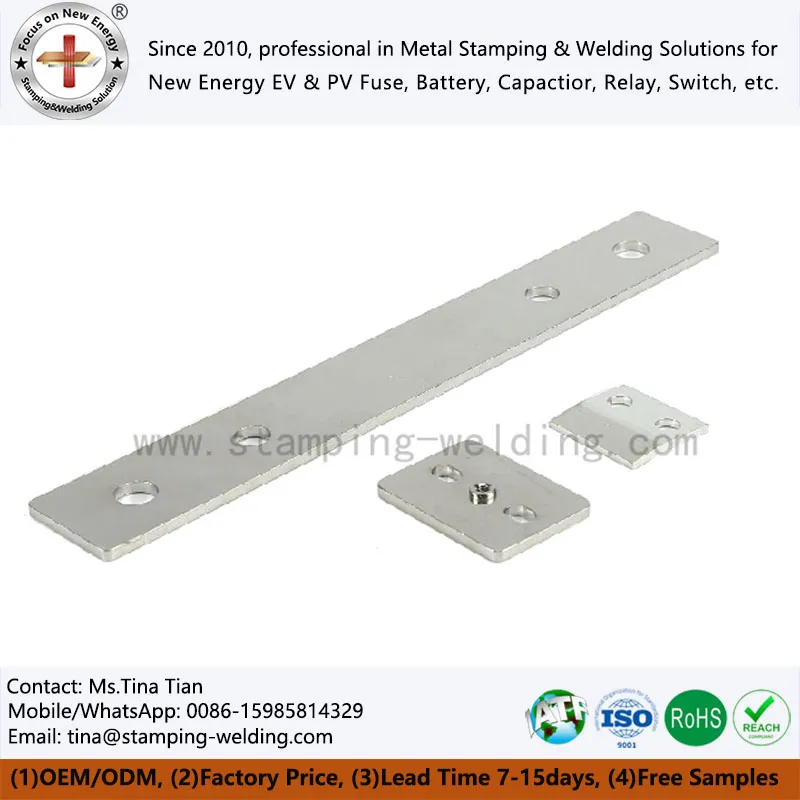

From a product structure and manufacturing process perspective, the core advantage of the Tin Plated Copper Bar lies in the organic combination of copper-based material and tin plating technology. As the core conductor responsible for collecting, distributing, and transmitting large currents in power distribution systems, the Flat Copper BusBar typically adopts a conventional rectangular structure, but custom-shaped specifications can also be made according to equipment operating conditions. The large cross-sectional area design ensures the basic conditions for stable transmission of large currents. The tin plating coating on the surface serves as a crucial protective structure. Busbar Coating effectively isolates external corrosive factors such as air, moisture, and salt, solving the industry pain points of bare copper conductors being prone to oxidation, blackening, and corrosion, and significantly extending the service life of electrical equipment.

Compared to traditional conductive conductors, the Tin Coated Copper BusBar offers multiple practical advantages. Firstly, it boasts outstanding electrical transmission stability, combining the ultra-high conductivity of high-purity copper with the conductive transition advantages of tin. This significantly reduces losses and voltage drops during current transmission and connection processes, ensuring the stability of the power system. Secondly, the tin-plated structure provides excellent solderability, allowing for efficient and reliable connections with various terminals and conductive components, simplifying equipment assembly. Furthermore, the tin layer's hardness surpasses that of the copper substrate, resisting physical wear during equipment installation and operation vibrations, thus enhancing product adaptability to various operating conditions.

With its comprehensive advantages of corrosion resistance, low loss, easy assembly, and high wear resistance, hdhc tinned copper busbar have been widely adopted in core scenarios across multiple industries. In the traditional electrical distribution field, they can be adapted to the main and branch circuit power transmission of equipment such as high and low voltage switchgear, substations, and distribution boxes. In the new energy industry, they can meet the high-precision conductivity requirements of photovoltaic and wind power inverters, as well as electric vehicle power drives and battery management systems. In the communications electronics field, they can provide high-reliability current transmission for communication base stations and data center PDU equipment, while also being stably adapted to harsh and complex outdoor conditions such as high temperature, high salt, and high humidity, making them a cost-effective core conductive material in the industrial electrical field.

For high-quality hdhc tinned copper busbar solutions suitable for various operating conditions, please feel free to contact us. We can provide you with professional and reliable power conductive material selection and matching services.
