Detailed explanation of Energy storage system cabinet

The Pylontech us5000 cabinet is a device specifically designed for storing electrical energy, consisting of core components such as a battery pack, inverter, and control chip. Its core function is to store electrical energy when there is sufficient power supply and release it during peak or insufficient power demand, which is a key component of modern energy systems.

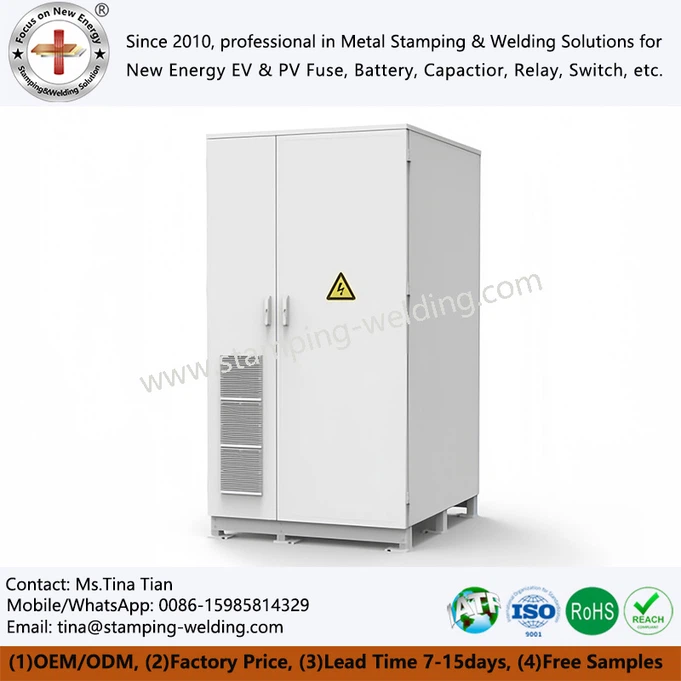

Energy storage system cabinet

The Solar battery storage cabinet mainly consists of battery modules, battery management system (BMS), inverter, control system, cooling system, and housing connectors. The battery module is the core of energy storage, and common types include lithium-ion batteries and lead-acid batteries; BMS is responsible for monitoring the battery status to prevent overcharging and overdischarging; The inverter converts direct current into alternating current; Control system management operation status and energy allocation; The cooling system maintains a safe temperature; The shell and connector provide protection and electrical connection.

In terms of working principle, the Battery energy storage cabinet achieves energy storage and release through DC/AC converters, and is applied in scenarios such as power grid peak valley balance, backup power supply, wind and solar power smoothing, and microgrid emergency. During charging, BMS detects the battery status in real-time and balances the charging process; During discharge, output AC or DC electrical energy according to the load demand.

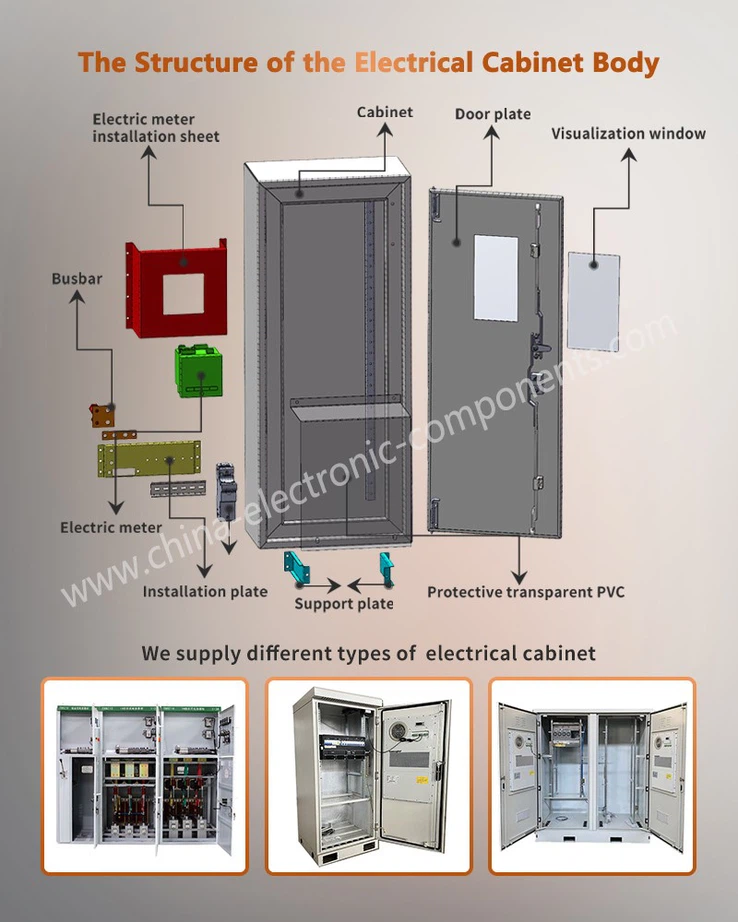

The structure of the Energy storage system cabinet

Outdoor energy storage cabinets can be divided into three types based on their structure: discrete (with independent components, easy to maintain and expand), modular (flexible combination, strong customization), base type (sealed design, suitable for outdoor use), integrated type (compact and portable, suitable for mobile or small systems), and lithium iron phosphate energy storage cabinets (larger in volume, used in commercial or industrial environments).

The application scenarios of Liquid cooled energy storage cabinet cover households (storing new energy, backup power, saving electricity bills), commercial areas (backup power, regulating grid peak), industrial areas (balancing power, improving efficiency), communication base stations (ensuring power supply), data centers (backup power, reducing electricity costs), transportation facilities (ensuring equipment operation), etc.

The production process of Energy storage integrated cabinet includes design engineering (determining capacity, battery type, etc.), material procurement, component manufacturing (battery modules, BMS, etc.), assembly testing, quality control, installation and commissioning, and after-sales service.

In terms of future trends, Outdoor cabinet energy storage systems will develop towards technological upgrades (increasing energy storage density and intelligence), cost reduction (large-scale production), standardization and modularization (easy deployment), diversified energy integration (combining hydrogen energy, etc.), and policy support (tax incentives, subsidies).

As a key equipment for energy transformation, the customized solution and professional technical support of the Energy storage system cabinet are crucial to the success of the project. If you need to further understand product specifications or obtain customized services, please feel free to contact us at any time. We will provide you with professional consultation and support.
