Electrical bus bar arrangement: the underlying logic for stable operation of power systems
Apr 29, 2026
Basic Definition and Electrical Connotation of ABCN Phase Sequence

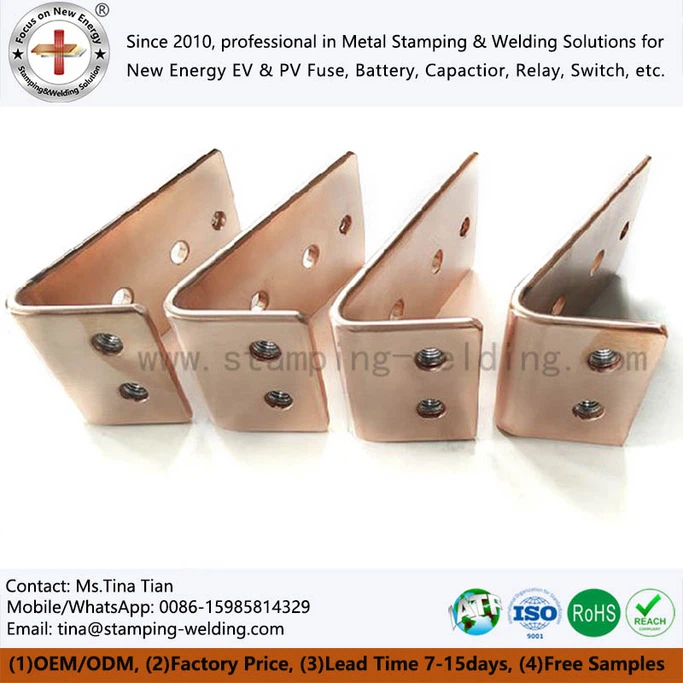

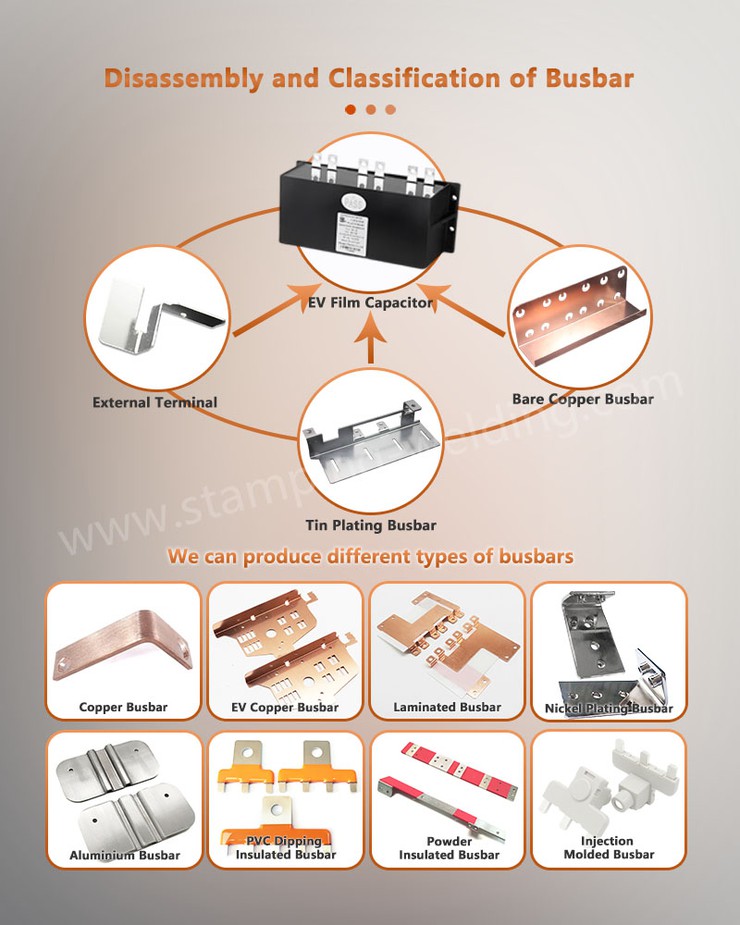

The Electrical bus bar, with a well-organized internal layout and smooth surface, is the core carrier for power transmission and distribution, responsible for conducting high currents, and serving as a key connection hub between transformers, switchgear, and various electrical loads. The copper bars in the distribution cabinet are not randomly arranged, but strictly follow the industry's unified phase sequence specifications. The ABCN arrangement is a universal standard for the distribution system and an important foundation for ensuring the safe and stable operation of power equipment.
In the power distribution system, phase A, phase B, and phase C are the three phase AC power lines, commonly known as live wires. The three-phase voltages differ by 120 degrees in timing, forming the core architecture of three-phase power supply. N-phase is a neutral neutral wire, mainly used to guide three-phase unbalanced currents and provide voltage reference for single-phase electrical equipment. Although PE protection ground wire is not included in the ABCN arrangement sequence, it is an essential safety protection circuit in the distribution system. It is uniformly marked with yellow and green colors to establish a bottom line for electrical safety. The Busbar electrical phase sequence specification commonly used in the industry mainly refers to the arrangement sequence of phases A, B, and C.
Standard Arrangement Rules
In order to achieve safe operation, reliable maintenance, and industry standardization of the power system, mainstream electrical specifications at home and abroad have established unified standards for the ABCN phase sequence layout of Electrical bus bars inside distribution cabinets, mainly divided into two forms: horizontal arrangement and vertical arrangement.
When the Electrical copper busbar is arranged horizontally, the A-phase, B-phase, C-phase, and N-line are arranged in sequence from front to back based on the perspective of the front operation of the distribution cabinet. The A-phase is close to the operation side, and the N-line is set on the innermost side.
When the Ground bus bar is arranged vertically, it strictly follows the order of A phase, B phase, C phase, and N line from top to bottom, with A phase at the top and N line at the bottom. In addition to the physical layout, the industry has fixed color identification standards: phase A is yellow, phase B is green, phase C is red, N line is light blue, and PE ground wire is yellow green dual color. Corresponding color codes are marked at the end of the copper bar and connection positions for electrical personnel to quickly identify the phase line attributes.
The core practical value of standardized arrangement
Strictly following the ABCN phase sequence arrangement is not a formal requirement, but rather a multiple technical value that combines safety, equipment operation, maintenance management, and industry standardization.
Firstly, it can ensure the safety of operation and maintenance. Electrical operators often carry out high-risk operations such as maintenance, power outages, and grounding at various distribution stations. The unified and fixed Copper solid bus bar phase sequence layout forms a standardized operation logic, which can quickly and accurately identify phase lines, greatly reducing the hidden dangers of misoperation and accidental touch, and safeguarding personal and equipment safety.
Secondly, it can ensure the smooth operation of electrical equipment. The working logic of three-phase motors, frequency converters, capacitor compensation devices and other equipment is closely related to the phase sequence. Standardizing the ABCN layout can prevent motor reversal, abnormal equipment vibration, component damage and other faults caused by phase sequence disorder, and maintain the continuous stability of production electricity.
At the same time, it can also improve the efficiency of Power busbar fault diagnosis and system management, unify the phase sequence to highly match the electrical drawings, wiring schemes, and on-site physical layout. When a fault occurs in the distribution system, technicians can quickly trace and diagnose it, greatly simplifying operation and maintenance work such as voltage detection and power quality analysis. In addition, the unified phase sequence standard also promotes the standardization of distribution equipment manufacturing, laying the foundation for modular and standardized design and production of distribution cabinets, simplifying the design and assembly process, and ensuring the structural unity and stable performance of similar products.
Phase sequence specification and quality control of distribution equipment

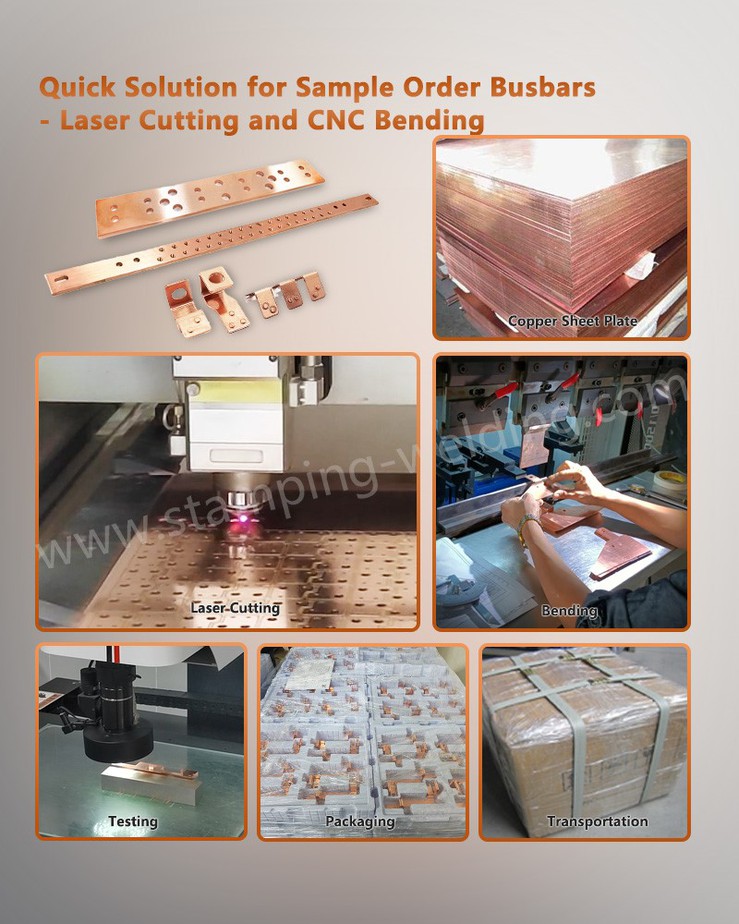

Throughout the entire manufacturing process of the distribution cabinet, from selecting materials for Bus bar electric, precise cutting, bending and forming, to on-site assembly and fixation, the accuracy of ABCN phase sequence layout is always an essential principle that cannot be exceeded.
Ensuring accurate phase sequence arrangement is only a basic requirement for the manufacturing of distribution equipment. In practical production applications, it is also necessary to strictly control key process details such as electrical clearance, creepage distance, rated current calculation, and dynamic stability verification. Only by maintaining strict control of the High voltage busbar in every process, adhering to phase sequence specifications and electrical design standards, can the overall performance of the distribution cabinet be guaranteed from the source, endowing power equipment with long-term stable, safe and reliable operation capabilities, and laying a solid foundation for the operation of the entire power distribution system.
