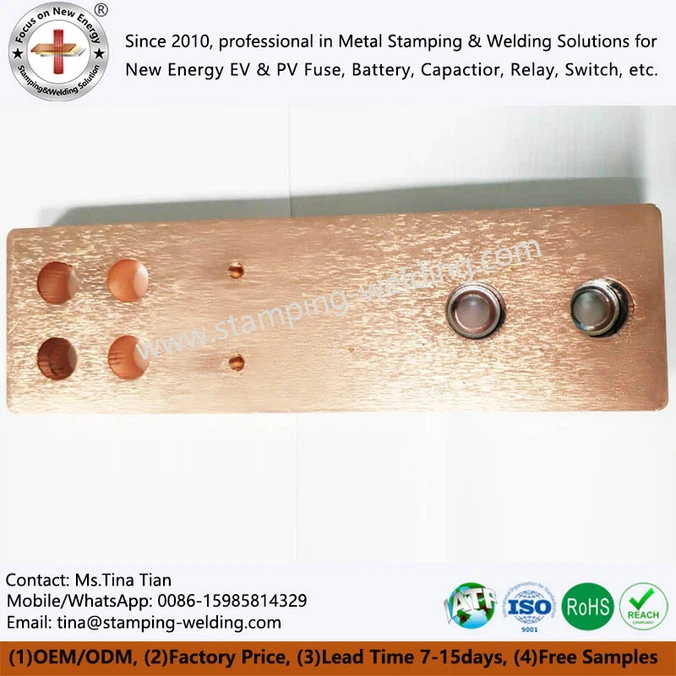

Copper Grounding Busbar: technical characteristics and application analysis

Copper grounding copper bar is the core component in the power system that connects electrical equipment and grounding devices. Its core function is to provide a low-impedance path for fault current or lightning current to ensure the safety of equipment and personnel. As a high-precision metal processing product, its performance directly determines the stability of the power system, and is especially indispensable in scenarios such as power distribution cabinets and frequency converters. From material characteristics to processing technology, the design of copper grounding bars must take into account conductivity, corrosion resistance and mechanical strength to meet the grounding requirements under complex working conditions.



























































Copper grounding copper bars are usually made of high-purity copper (such as T2 copper), with a copper content of ≥99.9%, a resistivity as low as 0.01724Ω·mm²/m, and electrical conductivity far exceeding that of aluminum (about 1.6 times that of aluminum). Its softening temperature reaches 518°C, and it can still maintain structural stability under high-temperature environments to avoid connection failure due to thermal deformation. The product supports customized cutting, and the length deviation can be controlled within ±0.3mm. Fine processing ensures a tight fit with the device terminals during installation. In addition, by adding trace amounts of alloy (such as 0.5%), the hardness and creep resistance can be improved without significantly reducing the conductivity, making it suitable for high vibration or frequent plugging and unplugging scenarios.













































































The production process requires multiple processes such as smelting, rolling, cutting, and surface treatment. In the smelting stage, the impurity content is strictly controlled through spectral analysis to ensure copper purity; the cold working process is used in rolling to increase the hardness while retaining the material's toughness and avoiding cracking during bending; CNC equipment is used in the cutting process to ensure dimensional accuracy and cut flatness. Surface treatment options include tin plating, silver plating or passivation to further enhance corrosion resistance. Quality testing covers indicators such as conductivity, tensile strength, salt spray test, etc. For example, tinned copper rows need to pass a 500-hour neutral salt spray test to ensure long-term stable operation in acid and alkali environments.

























































Compared with aluminum busbars, copper grounding bus bar have better conductivity and stronger corrosion resistance, and are especially suitable for outdoor or high-humidity scenes. Compared with galvanized steel busbars, copper busbars have lower resistivity and can discharge fault current more efficiently. Compared with pure copper busbars, micro-alloyed copper busbars (such as containing 0.5% alloy) increase their mechanical strength by more than 20% while maintaining conductivity, making them more suitable for frequent disassembly and assembly or high vibration environments. In addition, copper busbars have excellent processability and support complex shapes such as bending, punching, and tapping to meet customized grounding needs. For example, in data centers or subway projects, ring or row grounding networks can be designed according to equipment layout.















































































Our company specializes in providing various types of high-reliability grounding conductive products, including the Copper Grounding Busbar mentioned in the article. We strictly control every aspect from material selection, processing to testing to ensure that the products have excellent electrical conductivity, anti-corrosion and mechanical properties and can meet the needs of various demanding power application scenarios. If you need to know specific product specifications, technical parameters or obtain customized solutions, please feel free to inquire at any time.
