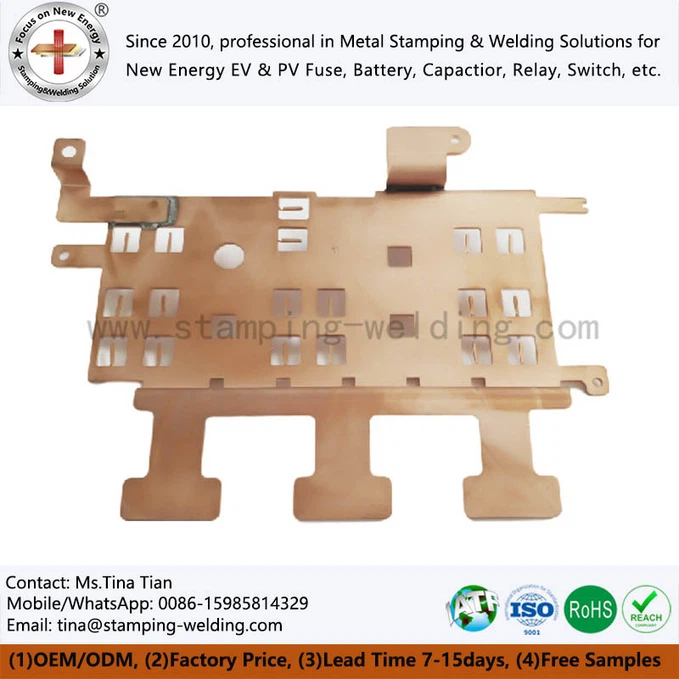

EV Capacitor Busbar Technology Analysis

EV BusBar is a vital connecting component in power electronic systems. Its essence is a conductive metal bar specially used to connect capacitor banks. As a key node in the circuit, it can not only connect multiple capacitors in series or parallel to build the required voltage level and capacitance value, but also undertakes the task of supporting and fixing capacitors and conducting current efficiently. In complex power transmission and distribution networks, this component ensures the stable flow of electrical energy from the power source to the load and is an indispensable basic component in modern electrical equipment.

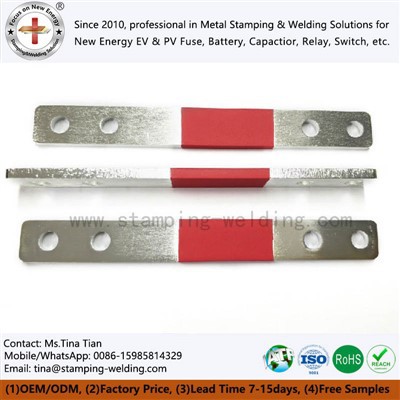

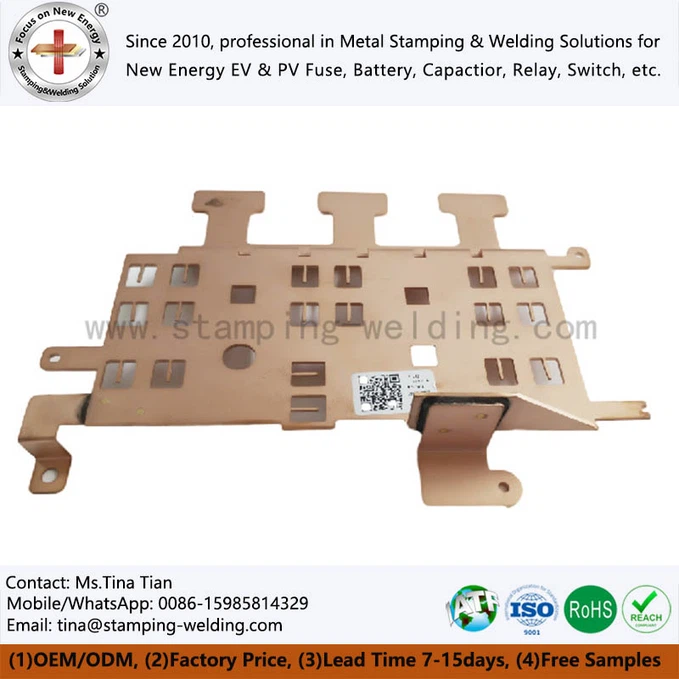

BusBar Car usually consists of two or more conductors, which are isolated by insulating materials. Conductors are mostly made of copper and undergo surface passivation treatment to improve conductivity. The conductor shape can be designed as round, oval, rectangular, etc., according to the connection method and installation requirements. The conductor spacing and the selection of insulating materials directly affect the electrical performance of the busbar. In Busbar Automotive applications, reasonable structural design is crucial to system stability.

























































The core function of capacitor busbars is to optimize circuit connections. Through series connection, the voltage withstand capability of the system can be improved; through parallel connection, the total capacitance value can be significantly increased. In addition to basic electrical connections, busbars also function as Automotive Power Connectors, providing solid mechanical support for capacitors.



Especially under harsh working conditions of high temperature and high pressure, a reasonable busbar design can assist in heat dissipation and prevent local overheating. In the field of new energy vehicles, EV BusBar serves as a bridge between the battery pack and the electronic control system, responsible for the collection and transmission of large currents. Its low impedance characteristics are crucial for reducing power loss.















































































The thickness and width of the conductor should be selected according to the rated current and voltage of the capacitor, and the heat dissipation performance should be taken into consideration. Materials should have good electrical conductivity and oxidation resistance to reduce the risk of connection failure. Insulation materials need to have excellent voltage resistance and high temperature resistance to ensure the safety and reliability of the DC Capacitor Busbar. The shape and size of the busbar should be designed according to the actual installation environment, taking into account the installation posture, space layout and heat dissipation requirements of the capacitor. For the busbar for Power Capacitor and busbar for Busbar Film Capacitor, the correct selection is directly related to the reliability of the entire machine.





Our company has long been focusing on high-performance connection solutions in the fields of EV Capacitor Busbar. We use highly conductive copper materials and high-quality insulation materials to ensure that the busbars have excellent conductivity, heat dissipation and insulation properties, helping customers achieve efficient and safe operation of the system.
