Application and installation specification of Grounding copper busbar in power distribution system

Copper bus bars for earthing system are critical conductors used for equipment grounding in electrical systems. Their core function is to provide reliable connections between electrical equipment and grounding devices, ensuring the safety of personnel and equipment. In modern power systems, it is both a core conductive component and an important connection framework for electrical circuits, widely used in distribution equipment, UPS power supplies, data centers, communication base stations, and new energy power control systems.

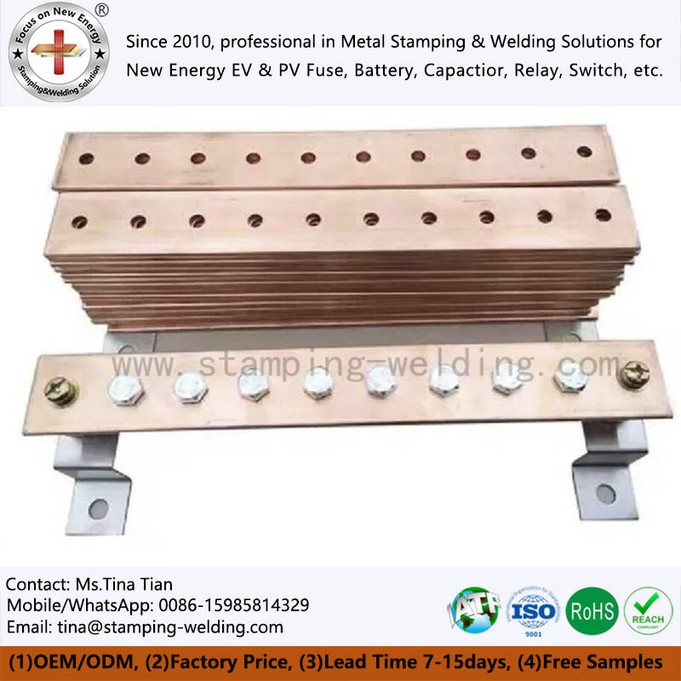

The Copper grounding busbar includes vertical copper connection busbars, wall mounted grounding kits, tin plated grounding rods, terminal copper busbars, distribution busbars, and copper strip busbars. High purity oxygen free copper is commonly used, which has the characteristics of low resistivity, good conductivity, and easy processing. It can stably carry large currents and achieve reliable grounding and current distribution.

Grounding bar holes can be divided into four categories based on materials and processes: red copper busbars, tin plated copper busbars, circular copper busbars, and right angle copper busbars. The red copper busbar adopts T2 oxygen free copper with a copper content of ≥ 99.95%, excellent conductivity, and is suitable for high reliability requirements;

Tin plated Copper ground bus bar has a protective layer on its surface, which can effectively prevent oxidation and improve corrosion resistance. It is commonly used in underground and humid environments; The surface of the circular copper busbar is smooth without sharp corners, and there is no discharge hazard, making it suitable for use in high-voltage equipment. Copper busbar has excellent overall conductivity, second only to gold and silver, and also has good thermal stability and mechanical strength, which can meet the long-term full load operation needs.

Ground bus bar electrical panels are widely used in power systems, with three core scenarios. In high and low voltage distribution cabinets, used as U, V, W three-phase busbars and PE grounding busbars, yellow, green, red, and yellow green dual color markings are painted according to specifications to enhance system safety and maintainability.

In the main circuit connection, Copper busbar for uninterrupted power stock is commonly used for high current circuits such as phase lines, neutral lines, and ground lines, which can effectively reduce contact resistance and improve system safety levels. Tin plating and embossing are often used for cabinet connection parts, combined with conductive paste to reduce oxidation and improve contact stability.

In the communication room and data center, unified grounding management is achieved through dedicated grounding kits to ensure equipotential between equipment and racks, avoiding signal interference and electrical damage.

Copper bus bar taped has multiple outstanding performances and can adapt to complex usage requirements in multiple scenarios. One of them has excellent corrosion resistance and strong stability in non oxidizing acid-base and seawater environments, suitable for use in underground engineering, marine power distribution and other scenarios.

The second one has good processing plasticity and moderate strength, and can be formed through processes such as rolling, extrusion, stamping, bending, etc. It can produce complex structured Power distribution bus bar systems.

Thirdly, it has excellent weldability and platability, supports multiple welding methods, and can also be electroplated with nickel, chromium, or hot-dip tin to meet the conductivity and anti-corrosion needs of different working conditions.

It has antibacterial and non-magnetic properties, does not produce magnetic field interference, and is suitable for grounding systems of high-precision measurement and control equipment and medical electrical equipment.
