The core of power conductors: electrical copper bus bar specifications, current carrying capacity and process analysis

In power transmission and distribution systems, the stability and reliability of conductor materials are crucial. Copper busbars occupy an irreplaceable position in various industrial and civil power distribution fields due to their excellent electrical conductivity, mechanical strength and corrosion resistance. As a long conductor with a generally rectangular or chamfered rectangular cross-section, it is widely used in distribution cabinets, substations and main lines of large mechanical equipment. For professional Copper BusBar Manufacturers, an in-depth understanding of their specifications and processing standards is the basis for ensuring product quality.

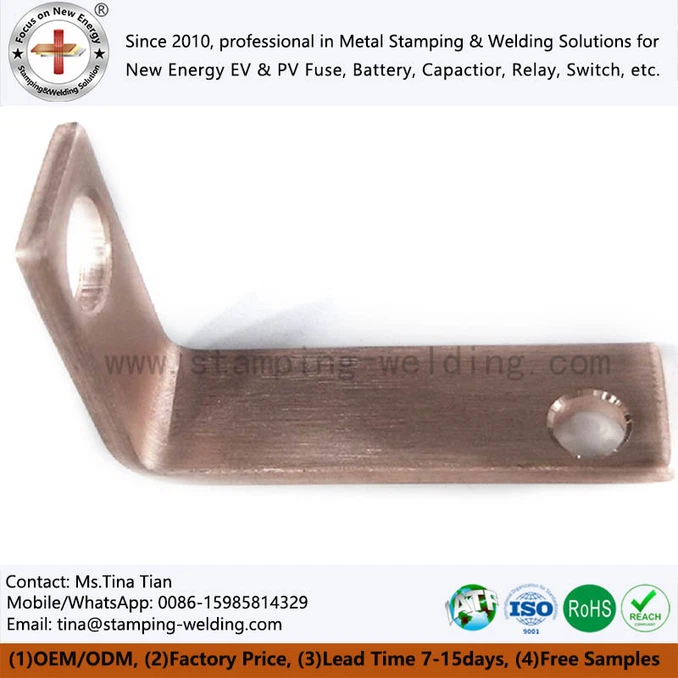

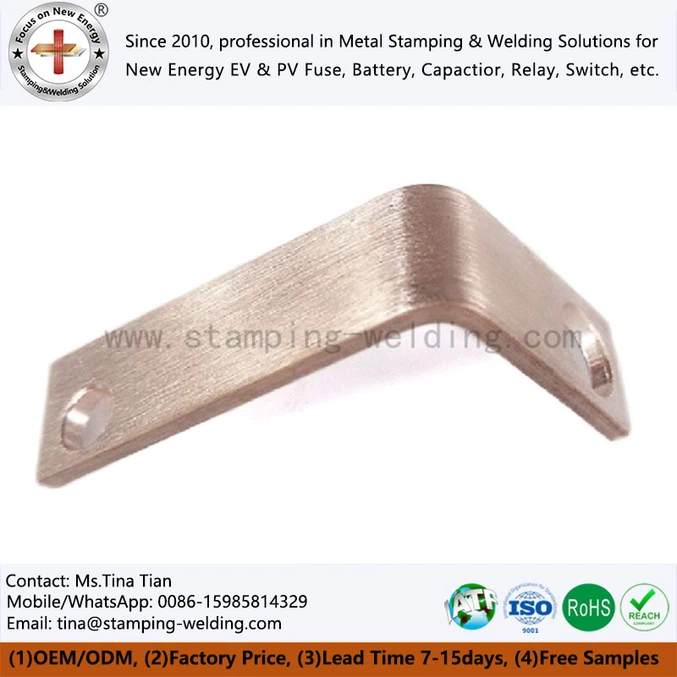

The specifications of copper busbars are usually defined by two dimensions: width and thickness, in millimeters. For example, "TMY-60×6" means a hard copper busbar with a width of 60 mm and a thickness of 6 mm. In terms of materials, pure copper commonly used in industry is divided into T1, T2, and other grades. Among them, T2 copper contains no more than 0.1% impurities in total and has good conductivity. In addition to conventional rectangular cross-sections, Custom BusBar solutions are also available on the market according to specific electrical needs to accommodate complex installation spaces.

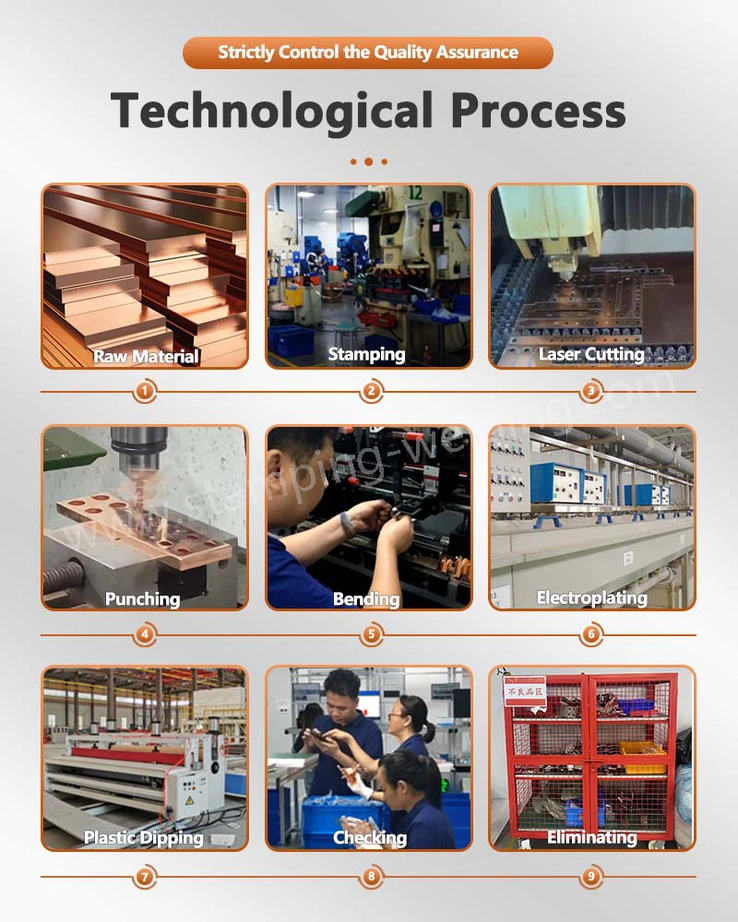

The processing quality of copper busbars directly affects the safe operation of the power system. The main processes include: Cutting and punching: Cut the materials accurately according to the drawings, and punch holes at the connections. The hole diameter and position accuracy affect the contact resistance. Bending: The bending radius should be reasonable to avoid cracks or excessive deformation and prevent local overheating. Surface treatment: The connection parts can be tin-plated or silver-plated to enhance corrosion resistance and reduce contact resistance. This is a necessary process for Copper Ground Bus Bars and other grounding purposes. Connection and installation: When tightening with bolts, ensure that the contact surface is flat and clean, and use a torque wrench to reach the specified torque value. Too loose or too tight can cause heat or mechanical damage. For compact electronic devices, PCB Bus Bars are increasingly being used due to their good spatial adaptability and uniformity of current distribution.















































































The cost of copper materials is relatively high, so on the premise of meeting the current carrying capacity and safety requirements, copper busbar specifications should be reasonably selected to optimize costs. At certain current levels, although aluminum busbars are cheaper, they have poorer conductivity, require larger cross-sectional areas, and require higher connection processes. For systems that require positive and negative bipolar power supply, the combination selection of Positive and Negative Bus Bars needs to consider current balance and insulation spacing simultaneously. In addition, Solid Copper Bus Bar is suitable for high-current uninterrupted power supply scenarios because of its high overall structural strength and uniform temperature rise.





Our company focuses on the field of high and low voltage power distribution, providing customized electrical copper bus bar solutions. The products cover AC and DC busbars, high voltage and low voltage series, and can provide supporting busbar connection systems for ABB, Siemens, Eaton, Mersen, and other brand equipment. We are committed to providing customers with reliable electrical connection products and professional technical support. Welcome to inquire and cooperate.
