Thin-Wall Deep Drawing for Next-Gen Prismatic Battery Casing: Controlling Wall Uniformity and Corner Radii

Thin-wall deep drawing is the primary forming challenge for large-capacity prismatic battery aluminum cases above 300Ah. Reducing shell thickness to 0.6–0.8mm improves gravimetric energy density but increases risks of wall thinning, corner cracking, dimensional deviation, and laser sealing failure.



Xiamen Apollo Stamping Welding Technology Co., Ltd. controls thin-wall battery shell deep drawing through multi-stage drawing dies, progressive forming simulation, controlled lubrication, CMM inspection, and surface preparation processes designed for high-volume EV battery enclosure production.

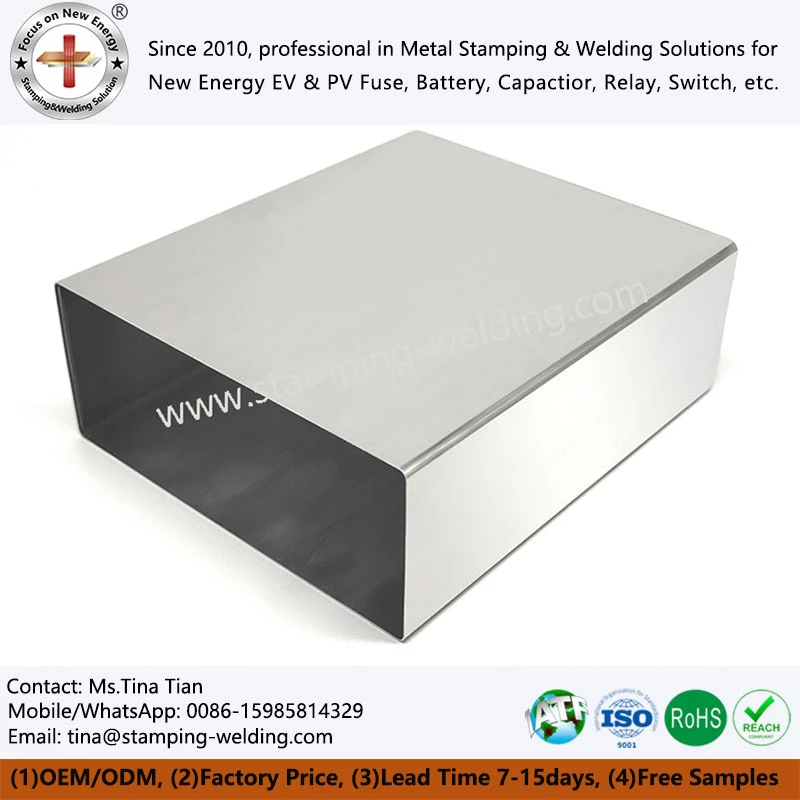

Large-format prismatic lithium battery cells require higher internal volume utilization. For 314Ah and above capacity cells, aluminum casing designs are moving toward thinner walls while maintaining mechanical strength against internal gas pressure, electrode expansion force, and vibration loads.



A typical prismatic battery enclosure requires:

Material: Aluminum alloy 3003-H14, 3003-O, 5052-H32 or customer specified grades

Wall thickness: 0.6–0.8mm

Dimensional tolerance: ±0.01mm for critical sealing areas

Flatness control: according to battery module assembly requirements

Surface cleanliness: compatible with laser welding sealing process

Burst pressure verification: according to cell safety validation requirements

The main forming difficulty is not simply reducing material thickness. The challenge is maintaining uniform wall distribution after deep drawing deformation.



During deep drawing, material flows from the flange area into the cavity. Excessive tensile stress causes corner cracking, while insufficient material flow creates wrinkles and uneven wall thickness.



Key process variables include:



Parameter	Engineering Impact	Typical Control Method
Drawing ratio	Determines forming feasibility	Multi-stage drawing calculation
Punch radius	Controls tensile stress concentration	Precision die machining
Die clearance	Influences wall thinning	±0.01mm machining control
Lubrication coefficient	Affects material flow	Automated lubricant application
Blank holder force	Prevents wrinkles	Servo press adjustment
Material hardness	Determines deformation behavior	Incoming material inspection





Drawing Ratio Calculation Based on Aluminum Material Flow
Thin-wall battery shell deep drawing cannot be completed through a single forming operation.
For aluminum battery enclosures, excessive single-step deformation may exceed the material elongation limit and generate:
Sidewall thinning
Corner fracture
Bottom deformation
Micro cracks invisible during visual inspection
Apollo applies multi-stage drawing processes to gradually redistribute forming stress.

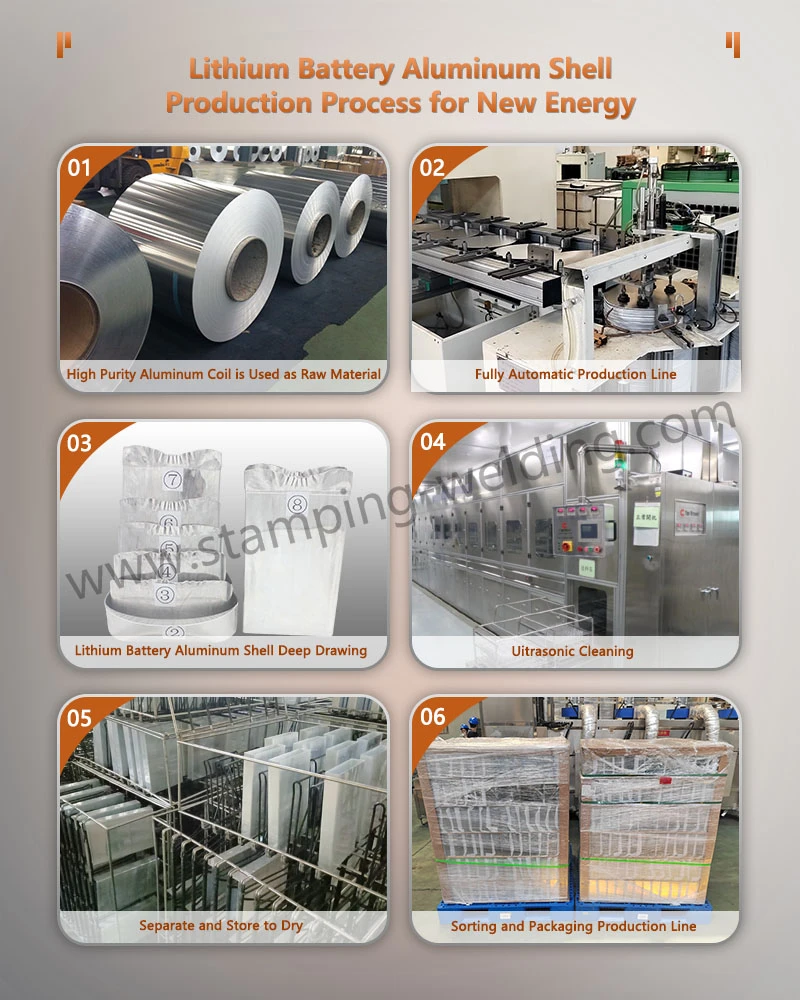

Typical process sequence:
1. Blank preparation and precision cutting
2. First drawing operation
3. Intermediate stress-relief forming
4. Secondary and tertiary drawing
5. Calibration drawing
6. Trimming and dimensional correction
The relationship between drawing ratio and material flow is evaluated through:

Drawing Ratio = Blank Diameter / Punch Diameter

For thin aluminum shells, optimized multi-stage drawing reduces localized strain concentration and improves wall thickness consistency.



Progressive Die Design and Step Thinning Control
High-volume EV battery casing production requires stable tooling performance.
Apollo develops dedicated deep drawing dies with:
Progressive forming stations
Precision guide pillars
Hardened die inserts
Controlled forming radius
Automated lubrication channels
The objective is not maximum deformation per stroke but controlled deformation distribution.



Process Method	Wall Thickness Result	Production Stability
Single-step deep drawing	Higher thinning risk at corners	Low
Two-stage drawing	Improved wall distribution	Medium
Multi-stage deep drawing	Stable 0.6–0.8mm walls	High
Step thinning drawing	Optimized material flow	High



For OEM battery casing programs requiring millions of pieces annually, progressive die durability and repeatability directly affect production yield.



Request Free DFM Evaluation & Quote

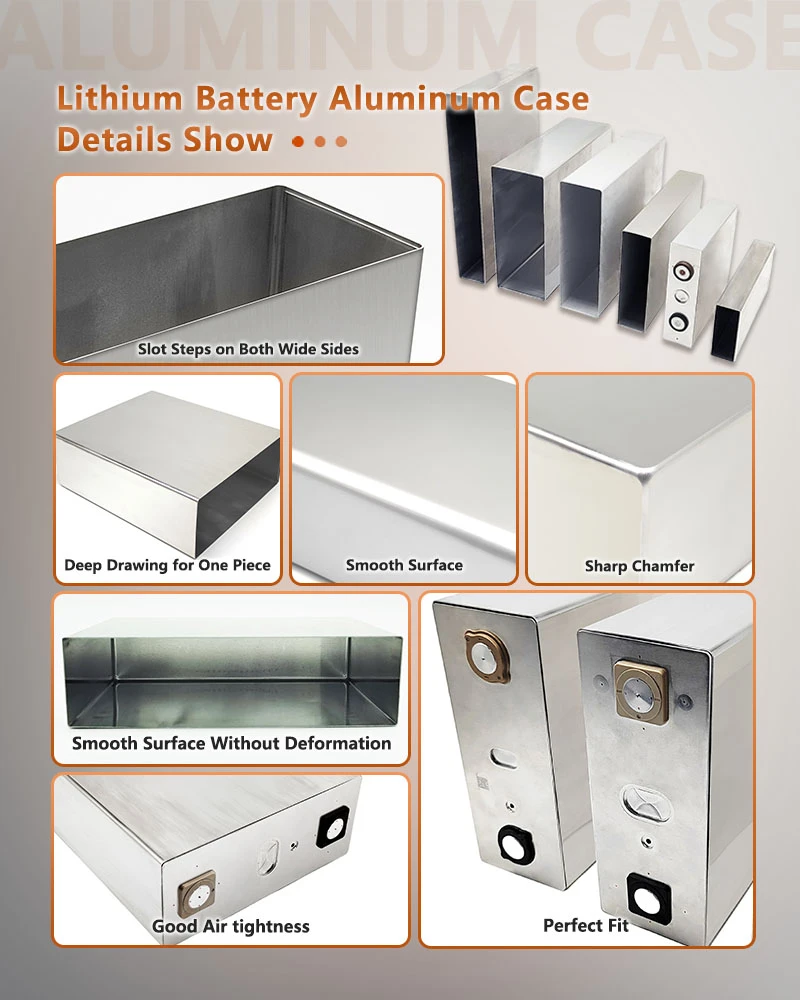

R-Angle Design Influence on Aluminum Shell Reliability
The corner radius (R angle) is one of the most sensitive parameters in prismatic battery casing design.

A smaller corner radius improves internal volume utilization but increases:
Tensile stress concentration
Local wall thinning
Material hardening
Crack initiation probability
A larger corner radius improves formability but reduces available cell volume.
Engineering optimization requires balancing:



Corner Radius Design	Advantages	Risks
Small R angle	Higher energy density	Increased cracking risk
Large R angle	Better forming reliability	Reduced internal capacity
Optimized R transition	Balanced strength and volume	Requires simulation validation



Apollo evaluates corner transition geometry using:
Finite Element Analysis (FEA)
Material forming simulation
Cross-section thickness measurement
CMM dimensional inspection

Long-Cycle Expansion Resistance of Battery Aluminum Enclosure
During long-term cycling, lithium cells experience:
Electrode expansion
Gas generation pressure
Thermal cycling stress

The aluminum enclosure must maintain structural integrity without deformation affecting:
Electrode alignment
Module assembly accuracy
Laser sealing quality

A stable deep drawing process ensures:
Uniform wall thickness
Controlled corner stress
Consistent sealing surface geometry







Multi-Stage Ultrasonic Cleaning Before Laser Sealing
After deep drawing and trimming, aluminum battery shells contain:
Drawing lubricant residue
Metal particles
Oxide contamination
Organic surface compounds
These contaminants directly influence laser welding performance.

Apollo uses multi-stage ultrasonic cleaning processes:
1. Alkaline degreasing
2. Ultrasonic cleaning
3. DI water rinsing
4. Drying treatment

Surface cleanliness inspection
The cleaned surface is evaluated through:
Surface energy measurement
Dyne value testing
Visual contamination inspection

Higher surface energy improves:
Laser beam absorption consistency
Weld penetration stability
Sealing reliability

Laser Welding Performance Requirements for Battery Sealing
Prismatic battery casing sealing commonly uses laser welding because of:
Low thermal deformation
High welding speed
Precise heat input control
The aluminum shell must provide:



Requirement	Target Value
Surface cleanliness	Stable dyne value before welding
Dimensional tolerance	±0.01mm sealing area
Weld penetration	Controlled according to design thickness
Leak testing	Helium leak test/pressure validation
Material compatibility	3003 aluminum laser welding



Poor surface preparation may result in:

Porosity

Incomplete penetration

Leakage failure

Reduced cycle life



Download Busbar Design Specification





In-House Tooling Development and Precision Stamping Control
Apollo develops battery enclosure tooling internally, including:
Deep drawing die design
Progressive die manufacturing
Mold trial validation
Process parameter optimization

Tooling validation includes:
Dimensional inspection
Material flow analysis
Trial production verification
CMM measurement reports

The production system follows automotive quality requirements:
IATF 16949-certified quality management
PPAP Level 3 documentation support
SPC process monitoring
Traceability management

Quality Inspection System for Thin-Wall Aluminum Battery Cases
Thin aluminum shells require inspection beyond conventional stamping measurements.
Apollo applies:



Inspection Method	Purpose
CMM inspection	Critical dimension verification
Thickness measurement	Wall uniformity control
Metallographic analysis	Material deformation evaluation
Burst pressure test	Structural reliability validation
Surface inspection	Laser welding preparation control



Production targets include:

Stable batch consistency

Repeatable forming accuracy

Reduced welding defect probability

Long-term supplier reliability





Material	Mechanical Characteristics	Typical Application
3003-H14	Good corrosion resistance, balanced strength and formability	EV prismatic battery cases
3003-O	Higher ductility for deep drawing	Complex thin-wall forming
5052-H32	Higher strength and fatigue resistance	Structural battery housings
6061-T6	High strength but lower deep drawing suitability	Machined structural parts



For deep drawing applications requiring 0.6–0.8mm wall thickness, aluminum grade selection directly affects:

Maximum drawing ratio

Corner crack resistance

Tool life

Production yield





What is the typical lead time for PPAP Level 3 prismatic battery aluminum case OEM projects?
Apollo typically provides prototype validation samples first, followed by PPAP Level 3 documentation and mass production scheduling based on tooling approval and customer requirements.

How does Apollo control cracking during thin-wall battery shell deep drawing?
Apollo controls cracking through multi-stage drawing, optimized corner radius design, lubrication management, and forming simulation to maintain stable aluminum material flow.

What inspection methods verify aluminum battery enclosure wall thickness accuracy?
Apollo uses CMM inspection, thickness measurement, dimensional reports, and process monitoring to verify thin-wall battery casing consistency.
