Why Engineers Prefer Powder Coating Insulation Busbars for High-Voltage Systems

High-voltage systems (like grid substations and new energy converters) need safe, durable insulation. Powder coating insulation busbars are key components here. It uses epoxy powder to form a hard, even insulation layer on copper or aluminum busbars. Unlike traditional tape insulation, it resists high voltage and heat better. Now, with global grid upgrades (e.g., China's UHV grid expansion), engineers increasingly choose this busbar. This article will explain why engineers prefer it, cover its core advantages and applications, and introduce Xiamen APOLLO's high-quality products.





1. Resists High Voltage Without Breakdown​

Busbar epoxi powder coating creates a dense insulation layer. It can withstand voltages up to 35kV or higher-far more than the 10-15kV limit of tape insulation. This keeps high-voltage systems from shorting due to insulation failure.​



2. Uniform Coating Avoids Local Weak Spots​

Insulation coating busbar uses electrostatic spraying for powder application. The coating thickness (usually 80-150μm) is even everywhere. There are no thin spots that could break down under high voltage, ensuring full-system safety.​



3. Low Dielectric Loss Saves Energy​

The epoxy powder in busbar epoxi powder coating has low dielectric loss. Even under long-term high-voltage operation, it doesn't waste much energy as heat. This matches engineers' goals of improving system efficiency.





1. Epoxy powder coat busbar can handle high temperatures. Its insulation layer stays stable at 120-150℃. In high-voltage systems (like transformer outlets), where temperatures rise quickly, it won't melt or peel.​



2. Unlike plastic-insulated busbars, epoxy powder coat busbar doesn't become brittle in cold weather (as low as -40℃). This makes it suitable for outdoor high-voltage systems in cold regions, without insulation cracking.​



3. The powder coating also resists thermal shock. When high-voltage systems start or stop suddenly, temperature changes sharply. The coating stays attached to the busbar, avoiding insulation damage.





1. Resists Corrosion and Wear​

Epoxy powder coated busbars have a tough outer layer. It blocks moisture, salt spray, and industrial chemicals from touching the busbar. In coastal or industrial high-voltage sites, this prevents corrosion and extends the busbar's life.​



2. No Peeling or Aging Easily​

Traditional insulation tapes often peel off after 3-5 years. The powder coating on insulation coating busbar bonds tightly to the metal. It can last 15-20 years without aging or peeling-cutting maintenance frequency for engineers.​



3. Easy to Clean and Inspect​

The smooth surface of epoxy powder coated busbars doesn't collect dust or dirt. Engineers can wipe it clean quickly during inspections. They can also check for damage easily, without removing layers of insulation.





Powder coating insulation busbars are widely used in engineer-designed high-voltage systems. In UHV substations, it connects transformers and circuit breakers-high voltage resistance ensures grid stability. In wind or solar power plants, it links converters to the grid-heat resistance handles power fluctuation temperatures. In industrial high-voltage lines (like for steel mills), it powers heavy equipment-corrosion resistance stands up to factory environments. Even in urban high-voltage distribution cabinets, it ensures safe power delivery to residential areas, meeting engineers' demands for reliability.

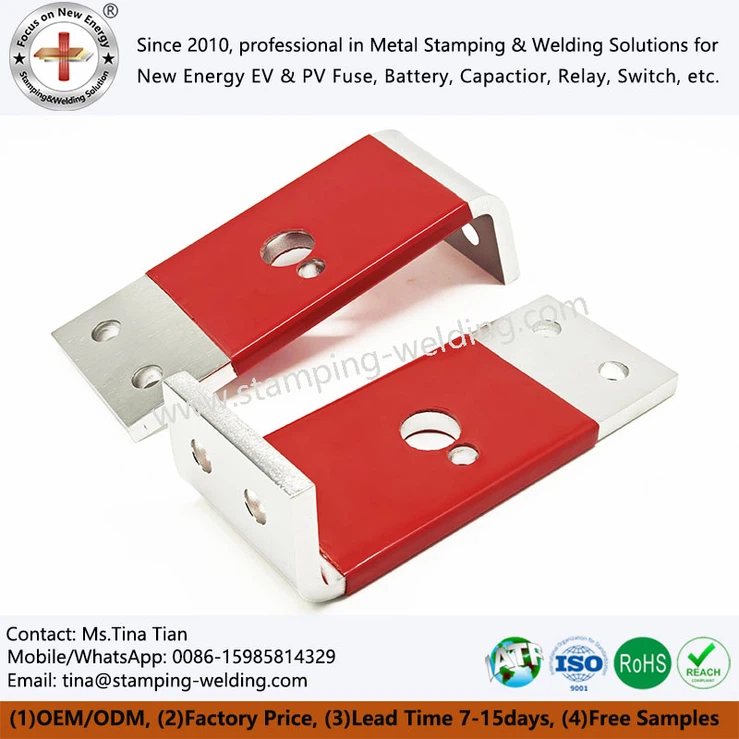

Xiamen APOLLO specializes in producing powder coating insulation busbar for high-voltage systems. Our busbars use 99.95% pure copper as the base, ensuring excellent conductivity. We use high-grade epoxy powder (meets IEC 60454 standards) for coating-applied via automated electrostatic spraying for 100% uniformity. The coating can withstand 40kV voltage and -40℃ to 150℃ temperatures.



We offer global delivery via sea, land, and air: small batches for cabinets arrive in 7-10 days, large orders for substations ship in 15-20 days. All our products (including epoxy powder coated busbars and insulation models) have ISO 9001, CE, and UL certifications-meeting global engineering standards. We also provide custom services: need insulation coating busbar with specific thickness, length, or color? Our team works with engineers to design solutions. At Xiamen APOLLO, we deliver the reliable, high-performance busbars engineers prefer for their high-voltage systems.
