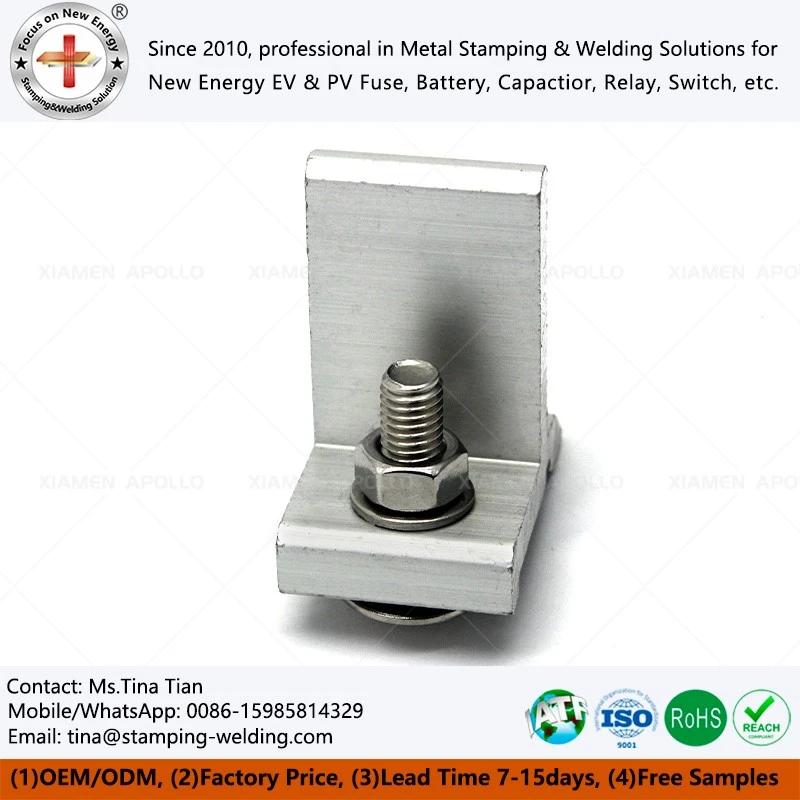

Solar Panel Mount End Clamp
The Solar Panel Mount End Clamp is a critical connecting component in photovoltaic (PV) mounting systems used to secure the ends of PV modules. Typically installed at both ends of a module array, it utilizes lateral clamping force to firmly lock the modules onto the mounting rail system, thereby preventing displacement, uplift, or loosening caused by wind loads, snow loads, or prolonged vibration. Widely used in ground-mounted power plants, commercial and industrial rooftop systems, agrivoltaics, and distributed PV installations, this product serves as a vital component for ensuring the long-term stable operation of modules and the structural integrity of the system.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The core functions of the Solar Panel Mount End Clamp are reflected in the following aspects:
Securing Module Ends
By precisely matching the dimensions of the PV module frame, it reliably clamps the end modules, ensuring an orderly arrangement and preventing slippage.
Load Transfer and Structural Stability
It evenly transfers external loads-such as wind and snow-to the mounting rail system, avoiding localized stress concentrations.
Vibration and Loosening Resistance
It maintains a stable clamping force amidst long-term thermal expansion/contraction and micro-vibrations, thereby reducing maintenance frequency.
Enhancing Overall System Safety
It preserves structural integrity under extreme weather conditions (such as strong winds, sandstorms, and freezing temperatures).
Application Advantages: Seamless Adaptation Across Diverse Engineering Scenarios
Commercial, Industrial, and Residential Rooftops (Metal/Concrete)
For roofs with strict load-bearing limits, these lightweight, high-strength aluminum alloy clamps provide equivalent mechanical strength while significantly reducing the structural load on the roof.
Utility-Scale Ground-Mounted Plants (Mountainous & Open-Field)
In desert or mountainous sites characterized by rugged terrain and strong winds, the Aluminum Accessories for Solar Mounting System Solar Clamp Kit Base's efficient installation capabilities significantly shorten the lengthy construction timelines typical of remote field projects.
Floating & Coastal Solar (Agrivoltaic/Fishery-Solar Hybrid)
Featuring a highly corrosion-resistant combination of premium stainless steel and anodized aluminum, the Solar Pane Clamps Aluminum Solar L Foot For Solar Mounting is perfectly suited for environments with high humidity and saline mist.
Detail Showcase: Quality in the Fine Points
Thread Protection
Inspect the embedded nut at the base of the clamping block; you will find the internal threads coated with anti-rust grease or protected by a plastic sleeve. This prevents oxidation before installation, which could otherwise make threading the bolt difficult.
Beveled Edges
All sharp edges are beveled for a smooth, rounded feel. This design not only ensures safety but also prevents the edges from cutting the installer's gloves or damaging the End Clamp for Solar Panel Mounting's protective film during installation.
Anodized Finish
The high-quality anodized surface features a refined matte texture and uniform color. It resists marks from firm fingernail scratches and does not attract fingerprints.
Bolt Head
The bolt head features a hex socket or Phillips drive design with a crisp, well-defined recess, eliminating the risk of stripping. The accompanying washer typically features anti-slip serrations to prevent the Solar Panel Mount Bracket End Clamp from rotating along with the bolt during tightening.
Manufacturing Process: Precision Engineering for Superior Quality
We operate professional Aluminum Solar End Clamp for Rooftop Mounting and precision CNC machining centers. Every stage of production-from raw material melting and extrusion forming to surface treatment, assembly, and inspection-adheres to the ISO9001 quality management system. Critical load-bearing components undergo multi-axis CNC precision machining, ensuring dimensional tolerances are controlled within ±0.2mm. Anodized surface finishes feature uniform thickness and consistent color, preventing color discrepancies that could otherwise compromise the project's overall aesthetic.
Automated pre-assembly steps are integrated into the production process to minimize human error. Each batch undergoes rigorous testing-including sampling tensile tests, torque verification, and environmental simulation-and is released for shipment only after meeting all standards. This end-to-end process control ensures high batch-to-batch consistency, making the products ideal for large-scale engineering procurement requirements.
contact us
For the procurement of large-scale photovoltaic power plants and engineering projects, the structural stability and batch consistency of Solar Mounting Component End Clamps directly determine long-term operational safety and maintenance costs. We offer integrated solutions-ranging from structural design compatibility and material upgrades to stable, large-scale delivery, and provide project-level technical collaboration alongside guaranteed long-term supply. We welcome you to submit drawings or project specifications to discuss engineering-grade customization.
