Epoxy Powder Coated Busbars: Enhancing Insulation And Efficiency

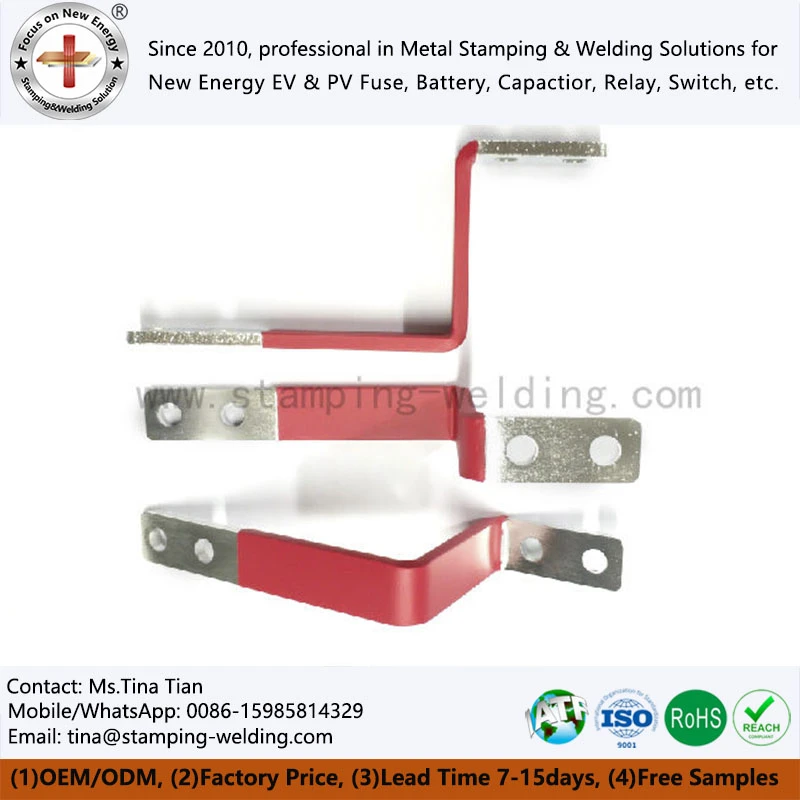

Epoxy Powder Coated Busbars are a type of electrical conductor used in various applications, including power distribution systems, switchgear, and high-voltage equipment. These busbars are coated with a layer of epoxy powder, which provides a high dielectric insulator on copper or aluminum conductors, ensuring a consistent insulation barrier. The coating is a free-flowing, thermosetting dry powder that creates a durable, protective surface when cured, with thickness ranging from 6 to 120 mils or .006 to .120 inches.







1, Superior Insulation Performance:

The epoxy resin powder provides high electrical insulation, effectively preventing short circuits and leakage.

2, Heat Resistance:

The coating maintains stable physical and electrical properties in high-temperature environments, meeting the demands of new energy equipment.

3, Corrosion Resistance:

The layer resists moisture, chemicals, and other corrosive substances, significantly extending the busbar's service life.

4, Mechanical Strength:

The hardened epoxy coating forms a durable protective layer, withstanding mechanical wear and external impact.

5, Efficient Production:

The coating process, including fluidized bed and electrostatic spray methods, allows for rapid and thick build, reducing production cycle times.



Epoxy Powder Coated Busbars are ideal for use in high-voltage environments such as distribution cabinets, transformers, and EV battery systems. They are also suitable for harsh environments that are humid or highly corrosive. The uniform insulation layer provided by the powder coating process makes it suitable for complex or irregularly shaped busbars, making it ideal for power busbars in new energy battery systems.

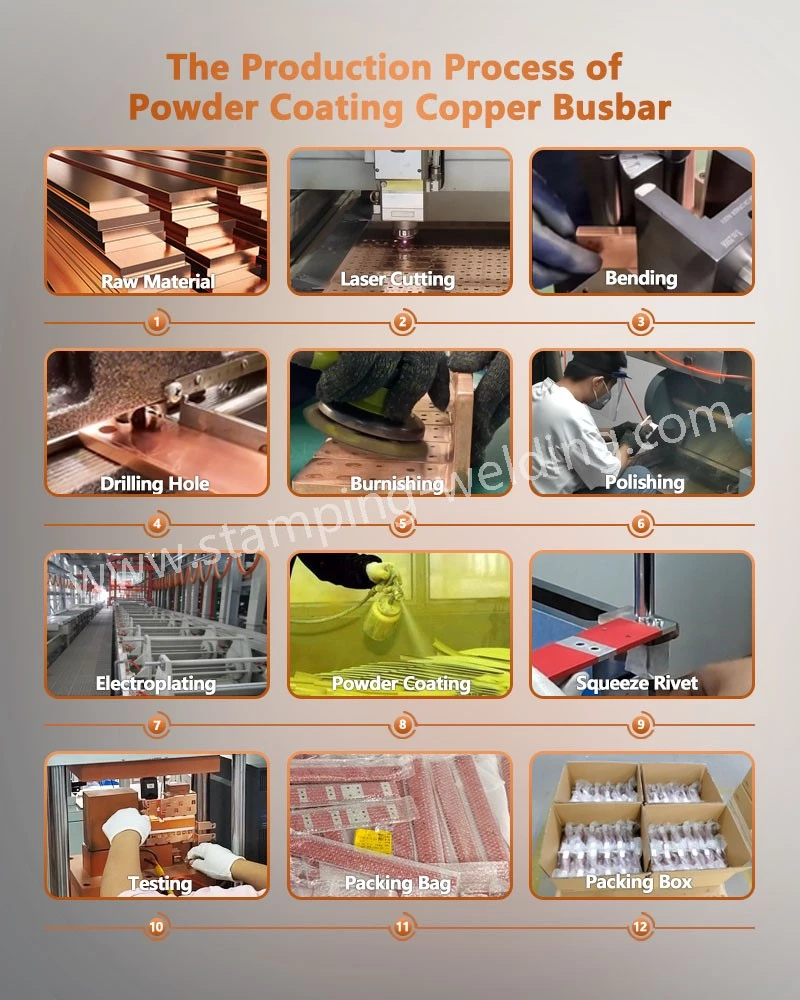

Raw Material Preparation: The process of producing Epoxy Powder Coat Busbar starts with the acquisition of raw copper material, which is the base for the busbars.

Laser Cutting: The raw material is precisely cut into the required shapes using laser cutting technology for accuracy.

Bending: The cut pieces are then bent into the desired form to create the busbar structure.

Drilling Holes: Necessary holes are drilled into the busbars for mounting or other functional purposes.

Burning: This step likely refers to the removal of any residues or surface treatments to prepare the busbars for coating.

Polishing: The busbars are polished to ensure a smooth surface, which is important for the adhesion of the epoxy powder coating.

Electroplating: The busbars undergo electroplating to enhance their conductivity or to provide a base layer for the epoxy coating.

Powder Coating: The busbars are coated with epoxy powder, which is then cured to form a hard, insulating layer.

Squeeze Rivet: This step involves the assembly of the coated busbars, possibly using rivets for secure connections.

Testing: The finished busbars are tested to ensure they meet the required electrical and mechanical specifications.

Packing Bag: The busbars are then packed in bags to protect them from damage and contamination.

Packing Box: Finally, they are boxed for shipment or storage, completing the production process to be a complete Epoxy Powder Coating Insulated Busbar.







The technical specifications of Epoxy Powder Coating Insulated Busbar include a thickness range of 0.4-0.8mm, an insulating material of epoxy, a dielectric strength of 20KV/mm, a withstand voltage of 5000V, and a temperature resistance of 150°C.These specifications ensure that the busbars can perform reliably under various operating conditions.





Epoxy Powder Coated Busbars offer a reliable and efficient solution for electrical insulation in high-voltage and harsh environments. Their combination of high insulation performance, heat resistance, corrosion resistance, and mechanical strength makes them indispensable in modern electrical systems.As the demand for reliable and efficient power distribution systems continues to grow, Epoxy Powder Coat Busbar will remain a critical component in ensuring system safety and stability.
