PVC Dipping Insulated Busbar: The Revolutionary Force in New Energy Electrical Connections

With the vigorous development of the new energy industry, efficient and safe electrical connections have become a crucial support for industry development. The PVC Dipping Insulated Busbar, with its excellent performance, has become an indispensable core component in new energy electrical systems, ensuring the stable operation of electrical equipment.​

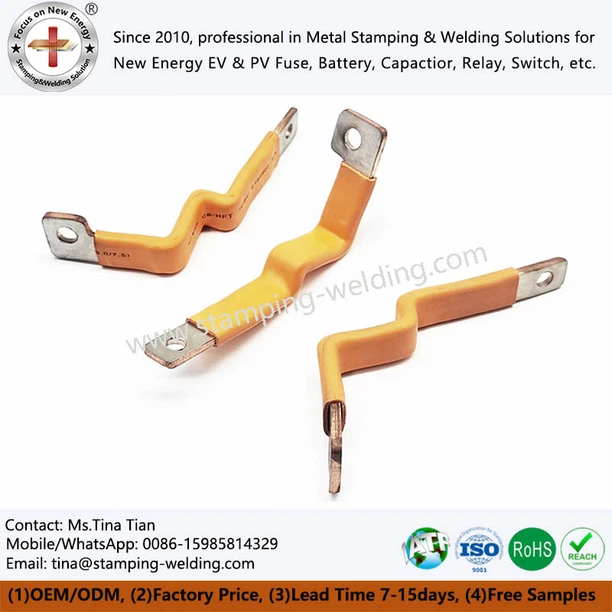

The PVC Dipping Insulated Busbar is an electrical connection component that evenly covers a layer of polyvinyl chloride (PVC) insulation on the surface of a copper busbar through a special process. This insulation layer can not only effectively isolate the current, preventing electric leakage and short - circuit accidents but also provide physical protection for the busbar, enhancing its abrasion resistance and corrosion resistance. Compared with traditional insulation methods, the insulation layer of the PVC Coated Bus Bars is closely bonded to the busbar, not easy to fall off, and has good flexibility and mechanical strength, which can adapt to complex installation environments and electrical requirements. It plays an important role in stably transmitting large currents in new energy electrical systems.​

The Dip Insulated Busbar produced by our factory uses high - purity red copper as the busbar base material. Red copper has excellent electrical conductivity and good processing performance, which can ensure efficient current transmission in the busbar and reduce energy loss. The polyvinyl chloride (PVC) material used for surface dipping has excellent insulation performance, with extremely high insulation resistance, effectively blocking current leakage. Meanwhile, PVC material also has good chemical corrosion resistance, able to withstand the erosion of acids, alkalis, and other chemicals, adapting to different working environments. In addition, PVC material has good flame retardancy. It is not easy to burn when exposed to an open flame and can quickly self - extinguish, greatly improving the safety of the electrical system. This combination of materials enables the PVC Dipping Insulated Busbar to operate stably in complex environments such as high - temperature, humid, and highly corrosive conditions.​

​

Our production process for Plastic Dipping Copper Busbar is rigorous and advanced. First, high - quality red copper raw materials are selected and processed into busbar shapes that meet the specifications through high - precision cutting and rolling equipment. Then, the busbars undergo surface treatment. Through grinding, polishing, and cleaning, surface impurities and oxide layers are removed to ensure the surface of the busbars is clean, enhancing the adhesion between the dipping layer and the busbars. Subsequently, it enters the crucial dipping process. Professional dipping equipment is used to immerse the busbars in a tank of molten PVC powder. Through the hot - dipping process, the PVC powder evenly adheres to the surface of the busbars and quickly solidifies to form an insulation layer. After dipping, according to customer requirements, the busbars can be further processed, such as tin - plating to form the Tin Coated Insulated Flat Copper Bus Bar for Battery or nickel - plating to produce the PVC Dipping Nickel Plated Copper Bus Bar for EV Battery. Finally, a comprehensive quality inspection is carried out on the finished products, including insulation performance testing, mechanical strength testing, high - temperature and low - temperature resistance testing, etc., to ensure that each Dip Insulated Busbar meets high - standard requirements.​

The PVC Coated Bus Bars have a wide range of applications in the new energy field. In the electric vehicle industry, it is widely used in the electrical connections inside the battery pack and the connections between the battery, motor, and electronic control system. As a key electrical component of electric vehicle batteries, its good insulation and electrical conductivity can ensure the safe and stable operation of the battery system. Meanwhile, in energy storage power stations, Plastic Dipping Copper Busbars are used to connect energy storage battery modules and converter equipment, ensuring the efficient storage and release of electrical energy. In new energy power generation systems such as photovoltaics and wind power, it can be used to collect and transmit electricity, stably delivering the electricity generated by power generation equipment to the grid. In addition, PVC Coated Bus Bars can also be applied in scenarios such as industrial electrical equipment and data centers, providing reliable electrical connection solutions for various electrical systems.​

As a professional red copper busbar factory in China's new energy industry, the Dip Insulated Busbar we produce have significant advantages. In raw material procurement, we have established long - term partnerships with high - quality suppliers, strictly screening red copper and PVC materials to ensure the quality of raw materials. In production, we have introduced internationally advanced production equipment and technology, combined with independently developed innovative processes, enabling high - precision and high - efficiency production. The dimensional accuracy and uniformity of the insulation layer of our products far exceed industry standards. We have a complete quality control system, strictly controlling every link from raw material inspection upon entry to finished product inspection before leaving the factory, ensuring stable and reliable product quality. In addition, we can also provide customers with customized services. According to different application scenarios and technical requirements, we produce dipping insulated busbar products of different specifications and surface treatments and offer professional technical support and high - quality after - sales service.​

With the continuous and rapid development of the new energy industry, the demand for PVC Dipped Insulated Bus Bar will continue to grow, and the industry will also put forward higher requirements for their performance. In the future, dipping insulated busbars will develop towards higher insulation performance, stronger mechanical strength, thinner and lighter designs, and intelligent monitoring. For example, by improving the PVC material formula and dipping process, the insulation performance and high - temperature resistance will be further enhanced. Using new processing technologies, lightweight designs of busbars can be achieved, reducing costs and installation difficulties. Our factory will continue to increase R&D investment, constantly explore new technologies and processes, optimize product performance to meet the increasingly diverse market demands, and actively expand domestic and foreign markets, enabling our PVC Dipping Insulated Busbar products to play a greater role in the global new energy field.
