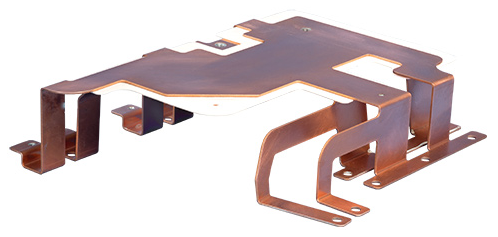

Stacked Busbar

INTRODUCE

——

A stacked busbar is a critical component within electrical distribution systems, designed to efficiently and safely transmit electrical power between various components such as circuit breakers, switches, and transformers. Unlike traditional busbars that consist of a single layer of conductors, stacked busbars employ a multi-layered or vertically aligned configuration, which optimizes space utilization and enhances the system's overall performance. By stacking conductive layers, these busbars can carry higher currents while minimizing the physical footprint, making them ideal for compact and densely populated electrical panels. Stacked busbars are a testament to modern engineering, as they address the ever-increasing demand for more efficient and space-saving solutions in electrical infrastructure, ensuring reliable power distribution in various applications, from industrial facilities to data centers.

ADVANTAGES

——

• Space Efficiency: Stacked busbars utilize vertical stacking of conductive layers, reducing the horizontal space required for power distribution. This compact design is particularly advantageous in applications where space is limited or expensive, such as in data centers and industrial facilities.
• Higher Current Capacity: The multi-layered configuration of stacked busbars allows for the efficient distribution of higher currents. This capability is crucial in situations where substantial power loads need to be managed without the need for oversized busbars or extensive cabling.
• Improved Heat Dissipation: Stacking the conductive layers increases the surface area for heat dissipation. This helps to maintain lower operating temperatures, which can prolong the life of the electrical components and reduce the risk of overheating-related issues.
• Enhanced Flexibility: Stacked busbars can be customized to accommodate various voltages, currents, and connection points, making them highly adaptable to different system requirements. This flexibility simplifies system design and installation.
• Reduced Maintenance: Due to their efficient design and enhanced heat dissipation capabilities, stacked busbars often require less maintenance compared to traditional busbar systems. This can result in cost savings and increased system reliability over time.
• Safety: Stacked busbars are typically designed with safety features like insulation and shielding to prevent electrical faults and reduce the risk of electrical shock or arc flash incidents. These safety measures are essential in protecting personnel and equipment.
• Aesthetics and Organization: Stacked busbars can contribute to a neater and more organized electrical panel layout. This can aid in troubleshooting and maintenance, as well as provide a cleaner appearance in applications where aesthetics matter.
• Scalability: Stacked busbars can be easily expanded or modified as system requirements change. This scalability is valuable in dynamic environments where power needs may evolve over time.

MARKET APPLICATION

——

The market application of stacked busbars has witnessed substantial growth and adoption across a wide range of industries, owing to their numerous advantages in electrical distribution systems. From industrial manufacturing to renewable energy generation, these innovative busbars have found versatile uses. Stacked busbars excel in optimizing space, enhancing power distribution efficiency, and ensuring reliable performance. They are particularly prominent in data centers, where space utilization is at a premium and electrical demands are high. Additionally, the renewable energy sector has embraced stacked busbars in photovoltaic inverters and wind turbine systems, where they improve energy conversion and help manage fluctuating power outputs. Their scalability, safety features, and adaptability to diverse voltage and current requirements make stacked busbars a vital component in modern electrical infrastructure, shaping how we distribute and manage electrical power across various market segments.

SURFACE TREATMENT

——

• Corrosion Resistance: Stacked busbars are often exposed to moisture, humidity, and other corrosive elements. Surface treatments such as galvanization, plating, or the application of corrosion-resistant coatings act as a barrier against corrosion, preserving the structural integrity of the busbars.
• Electrical Insulation: In certain applications, it's essential to insulate specific sections of the busbars to prevent electrical faults or short circuits. Surface treatments like insulating paints or epoxy coatings create a dielectric barrier that isolates conductive elements, enhancing electrical safety.
• Thermal Management: Efficient heat dissipation is critical for maintaining optimal busbar performance. Heat-conductive coatings or thermal interface materials can be applied to facilitate heat transfer and prevent overheating.
• Enhanced Contact Surfaces: Some surface treatments improve the contact surfaces of busbars, reducing electrical resistance and ensuring efficient power transmission. Silver plating or tin coatings are common choices for this purpose.
• Environmental Protection: Outdoor installations or harsh industrial environments demand surface treatments that safeguard busbars from UV radiation, chemicals, and contaminants. Weather-resistant coatings and encapsulation materials can be employed.
• Aesthetic Considerations: In applications where aesthetics matter, surface treatments can provide a polished, visually appealing finish, contributing to a neat and professional appearance.

STRUCTURAL CLASSIFICATION

——

• Single-Layer Stacked Busbars: This configuration involves a single stack of conductive layers. It is suitable for applications where moderate current loads need to be managed, and space constraints are not severe. Single-layer stacked busbars are commonly used in smaller electrical panels and low-to-medium voltage systems.
• Multi-Layer Stacked Busbars: Multi-layer stacked busbars feature several stacked conductive layers. This design significantly increases their current-carrying capacity, making them ideal for high-power applications, such as in industrial machinery, large data centers, and high-voltage substations. The added layers also enhance heat dissipation.
• Back-to-Back Stacked Busbars: In this configuration, two stacks of conductive layers are placed back-to-back, with each stack designed to handle different functions or voltages. Back-to-back stacked busbars are often employed in applications where isolation or segmentation of power sources is necessary, such as in electrical switchgear or power distribution units.
• Vertical Stacked Busbars: Vertical stacked busbars are designed to accommodate power distribution in tight, vertically oriented spaces. They are common in applications like server racks, where efficient space utilization and vertical power routing are essential.
• Laminated Stacked Busbars: Laminated stacked busbars incorporate layers of insulating material between the conductive layers. This design improves electrical isolation and reduces the risk of short circuits. Laminated stacked busbars are suitable for applications where electrical safety is paramount.
• Customized Configurations: Depending on specific requirements, stacked busbars can be customized to have unique structural designs, such as specific layer arrangements, cross-sectional shapes, and insulation schemes. These customizations cater to niche applications and specialized equipment.
