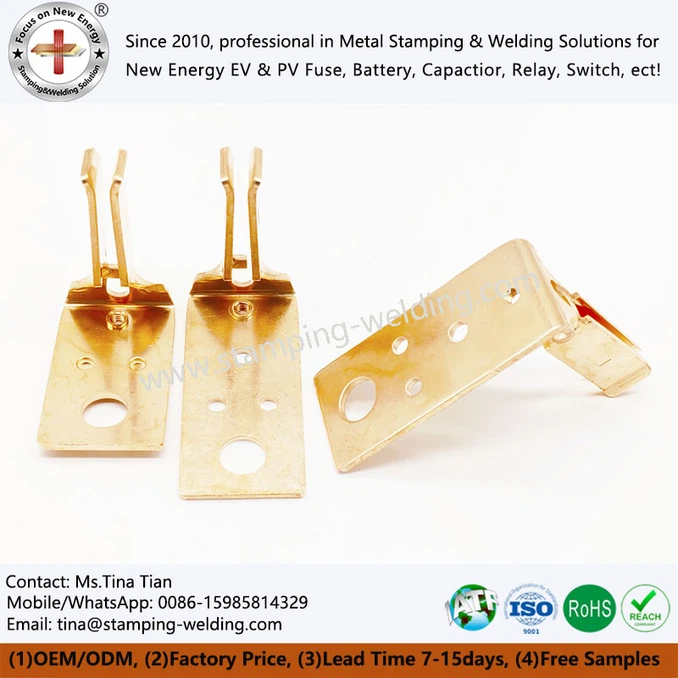

Analysis of fuse clip holder Manufacturing Process

Against the backdrop of steady development in the electronics and electrical industry, fuse clip holder, as core components ensuring circuit safety, have their product performance and safety directly determined by the standardization and refinement of their manufacturing processes. Currently, the industry's quality requirements for fuses and fuse holders are continuously increasing, driving the continuous optimization of fuse holder production processes and forming a standardized system covering the entire process from material preparation to finished product warehousing, thus contributing to the high-quality development of the industry.

The standardized production process for fuse holders requires strict control at multiple stages. From initial preparation to final warehousing, each step directly impacts the product's stability and reliability. The initial preparation stage mainly includes three core aspects: materials, tools, and environment. Regarding materials, standard-compliant insulating materials such as ceramics and plastics must be selected, and fuses, leads, wires, and other related accessories must be prepared to lay the foundation for subsequent production. For tools, cutting tools such as saws and cutting machines, drilling tools such as drills and drill bits, and polishing tools such as sandpaper and grinding heads are required. Regarding the environment, it is essential to ensure a clean and impurity-free working environment, while simultaneously checking that equipment is operating normally to guarantee production safety and product quality. These are fundamental requirements for the fuse and holder production process.

Material cutting and drilling are crucial steps in fuse holder manufacturing. Workers use specialized cutting tools to cut the insulating material to the appropriate dimensions according to product design requirements. Then, precise holes are drilled into the cut material to provide suitable positions for fuse installation and pins. After drilling, chamfering and deburring are performed to further improve the product's appearance and performance, preventing sharp edges from affecting subsequent assembly and safe use. This meticulous operation is also an important standard for distinguishing high-quality fuse holders.

The core assembly process focuses on product functionality and stability, mainly including two steps: fuse installation and lead soldering. During assembly, the fuse must be precisely inserted into the pre-drilled holes to ensure accurate positioning and secure fixation. Some products utilize an integrated assembly mode with a fuse holder and fuse itself, improving ease of use. The lead soldering process requires firmly soldering the leads to the fuse holder, strictly preventing incomplete or false soldering to avoid poor circuit contact and ensure the conductivity and safety performance of the fuse holder.

Quality control is implemented throughout the entire production process. After assembly, the product undergoes a series of inspections, including visual inspection, performance testing, cleaning and packaging, and final quality inspection. Visual inspection focuses on checking for cracks, damage, stains, loose pins, and short circuits. Performance testing involves withstand voltage and load tests to ensure compliance with industry standards. Some products designed for special applications are also compatible with 100A fuses to ensure safety under extreme conditions. Cleaning and packaging removes residual oil and dust from the product surface before sealing it with appropriate packaging materials to prevent damage during transportation and storage. Only after passing the final quality inspection can the product be put into storage, ready for shipment or storage.

Currently, the industry is not only focusing on optimizing the core processes of fuse clip holder, but also enriching its product categories, covering related supporting products such as fuse bases, fuse holder clips, and fuse clamps to meet the needs of various electronic and electrical devices. As market demands for circuit safety continue to rise, the manufacturing processes for niche products such as fuse clip clamps and clip fuses are also continuously being upgraded. In the future, fuse holder production will further develop towards refinement, standardization, and diversification, providing more reliable guarantees for the safe and stable operation of the electronic and electrical industry.

If you have a need for fuse clip holder and related products, or would like to inquire about product manufacturing details, please feel free to contact us to discuss cooperation and obtain customized solutions.
