Analysis of surface treatment process and application scenario characteristics of Copper sheet stamping
Apr 08, 2026
Overview of Copper sheet stamping surface treatment process

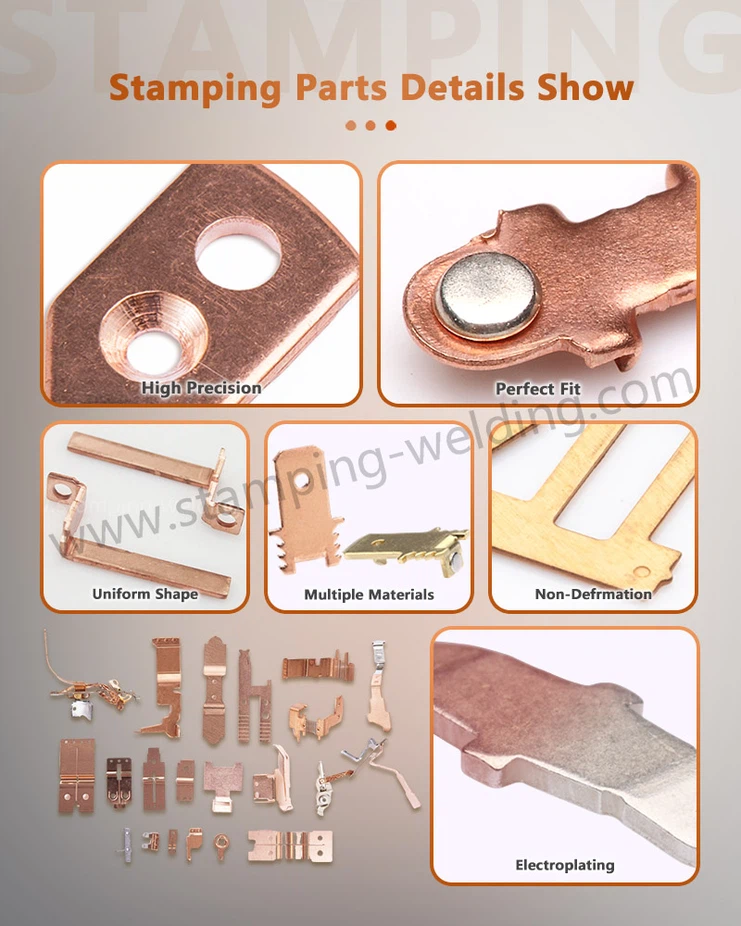

The surface treatment process of Stamping copper sheet mainly focuses on improving corrosion resistance, optimizing conductivity, enhancing surface smoothness, and strengthening coating adhesion. The commonly used processes in industry include electroplating, chemical treatment, and passivation oxidation, each of which is suitable for different product requirements and usage scenarios. Electroplated copper process is the most commonly used surface treatment method, which is divided into two categories: alkaline copper plating and acidic copper plating.
Alkaline copper plating is mainly used for bottom layer treatment, forming a uniform and dense thin copper layer on the surface of Custom copper stamping substrate to improve the adhesion of subsequent nickel, chromium, silver, gold and other coatings, and enhance the basic corrosion resistance; Acidic copper plating is used to thicken coatings, meeting the needs of copper stamping parts in high conductivity and high wear resistance scenarios, and comprehensively optimizing the conductivity and mechanical properties of the parts.
Chemical polishing and cleaning pretreatment
Chemical polishing and cleaning are pre-treatment processes before surface treatment. Immersing Copper sheet stamping into a specialized polishing solution can quickly remove residual oil stains, burrs, oxidation spots, and impurities during stamping processing, resulting in a smooth and even surface. This not only improves the appearance of the product, but also lays a good foundation for subsequent passivation, electroplating and other processes. At the same time, this treatment process can slightly enhance the surface's resistance to dirt and corrosion, which is an important step in improving the overall quality of Electrical copper stamping parts.
Passivation and anodizing treatment process
Passivation and anodizing are key advanced processes for improving the durability of Metal stamping parts electric copper, mainly targeting products exposed to humid and corrosive environments for a long time, fundamentally solving the problems of oxidation discoloration and corrosion. Passivation treatment does not require electricity, and a dense inert oxide film is rapidly formed on the surface of copper stamping parts through chemical reactions.
This process is easy to operate, cost-effective, and can effectively block the contact between air, moisture, and substrate, significantly improving the corrosion resistance and wear resistance of parts. It is the mainstream post-treatment process for most general copper stamping parts. Anodizing uses copper stamping parts as anodes, and generates a thicker and harder oxide film layer on the surface through electrolytic reactions.
Compared with passivation treatment, anodizing has higher corrosion resistance and surface hardness, and the appearance of the film layer can also be adjusted according to needs. It is suitable for Copper strip stamping that requires high performance and appearance, and can compensate for the defects of soft and easily oxidized surface of pure copper materials.
Process matching and characteristics for different application scenarios
The application scenarios of Copper stamped components cover multiple fields such as mechanical manufacturing, electronic appliances, building decoration, and aerospace. The requirements for surface performance, appearance, and accuracy vary significantly in different scenarios, and the surface treatment process needs to be matched accordingly.
In the field of mechanical manufacturing, copper stamping parts are mainly used for components such as bearing shells, gear connectors, and wear-resistant gaskets. By relying on the wear-resistant and anti friction properties of copper materials, combined with passivation or thin-layer electroplating treatment, the friction coefficient of mechanical operation can be effectively reduced, wear and noise can be reduced, and the service life of components can be extended.

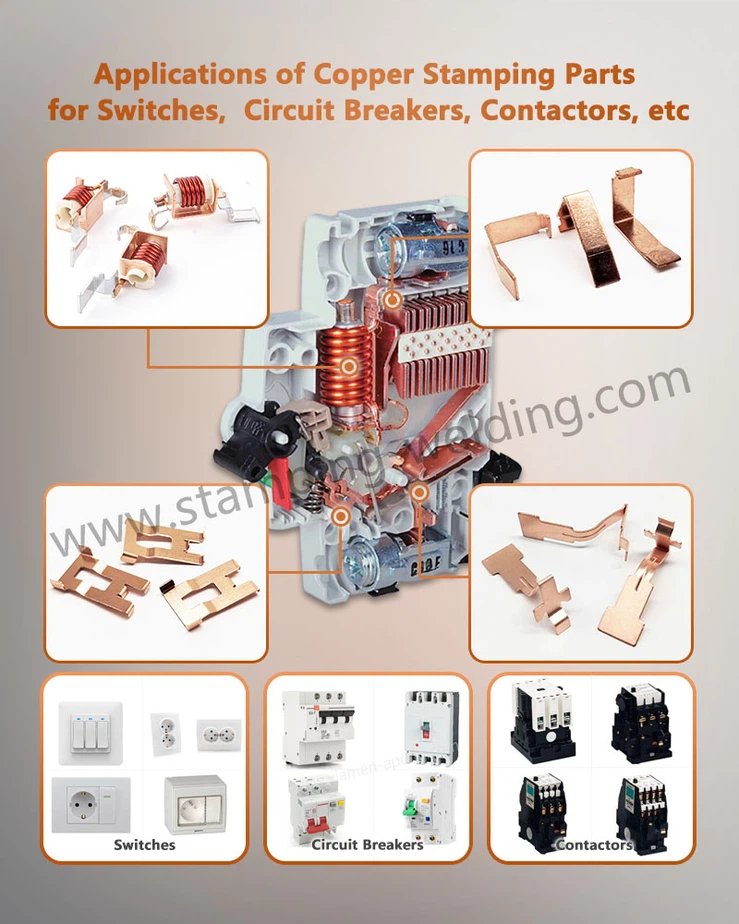

In the field of electronic appliances, Copper stamping processing connection, as a core basic component such as connectors, terminals, circuit board connectors, transformer coils, plug spring plates, etc., requires extremely high conductivity. It usually uses electroplated copper as the bottom layer or undergoes pure passivation treatment to ensure efficient current transmission, prevent poor contact caused by oxidation during long-term use, and ensure the stable operation of electronic and electrical products.
In the field of architectural decoration, Cross copper metal stamping is commonly used for decorative components, curtain wall accessories, metal decorative strips, etc. The core requirements are appearance texture and long-term weather resistance. Generally, chemical polishing and passivation treatment are used to maintain the metallic luster and unique texture of copper materials. At the same time, it has excellent weather resistance and anti-aging performance, taking into account both decoration and practicality. It is not easy to rust and fade after long-term use.
In the aerospace field, Precision copper stamping parts need to cope with complex environments such as extreme high and low temperatures, strong radiation, and high vacuum, with strict requirements for surface stability, conductivity, and mechanical strength. Anodizing or high-precision electroplating treatment is usually used to ensure that the parts do not fail under extreme working conditions and to guarantee the reliability of signal transmission and structural connections.
