Analysis of the Application and Advantages of Copper Braided Flexible Busbar Connectors in New Energy Storage Cabinets

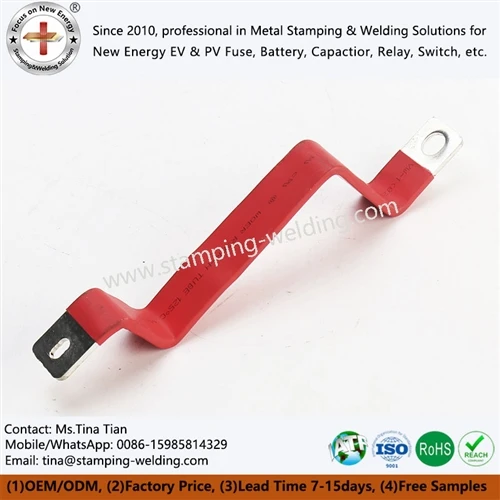

The Copper Braided Flexible Busbar Connector is a flexible conductive component manufactured from high-purity copper wire, copper foil, or tinned copper materials using processes such as braiding, crimping, and welding. Compared to traditional rigid copper busbars, these braided flexible connectors offer superior flexibility, current-carrying capacity, and mechanical shock absorption, enabling reliable high-current connections in applications such as new energy storage cabinets, battery systems, and power electronics. Their flexible conductor structure effectively mitigates connection stresses caused by vibration, thermal expansion and contraction, and assembly tolerances during equipment operation.

Inside energy storage cabinets, battery clusters are densely packed, rendering traditional rigid copper busbars and round cables prone to multiple inherent flaws during long-term operation. Continuous thermal expansion and contraction of cells during charge-discharge cycles cause minute displacements; rigid connections lack the necessary buffer, making terminals highly susceptible to cracking or fracturing. Furthermore, the combination of transport shocks, operational vibrations, and assembly dimensional tolerances leads to stress concentrations, resulting in poor contact and localized overheating. These systems handle high DC currents ranging from hundreds to thousands of amperes; round cables suffer from significant skin effects, high AC impedance, and substantial Joule losses, while also occupying excessive cabinet space-hindering compact system integration. Additionally, dust and humidity within the cabinet can easily trigger short circuits caused by surface tracking on conductive parts; standard connectors lack flame-retardant insulation, significantly increasing safety risks during operation and maintenance. The flexible braided structure of flat braided shunts was specifically designed to comprehensively resolve these critical connection challenges in high-voltage energy storage cabinets.

Compared to rigid busbars and standard cables, tinned copper braided flexible connectors offer significant structural advantages; when paired with standardized selection criteria, they ensure the long-term, stable operation of energy storage equipment. Key advantages include:

First, vibration and fatigue resistance: they buffer equipment vibrations and displacements caused by the thermal expansion and contraction of battery cells, thereby extending the equipment's trouble-free operating time.

Second, a flat, flexible structure: this accommodates the compact layout of energy storage cabinets and effectively saves internal wiring space.

Third, excellent heat dissipation and electrical conductivity: the multi-layer copper braid structure mitigates the skin effect and reduces heat loss associated with high currents.

Fourth, reliable safety protection: the outer V-0 rated flame-retardant insulation sheath prevents short circuits and tracking, making the connectors suitable for complex operating environments involving humidity and dust.

Engineering selection must adhere to specific standards: match the conductor cross-section to the maximum charge/discharge current to prevent overheating; allow for an appropriate bending radius during installation to avoid copper strand breakage; utilize ultrasonic welding or high-pressure crimping for terminals, and conduct regular inspections and tightening; and select insulation sheaths that withstand temperatures ranging from -40°C to 125°C and comply with UL and GB flame-retardancy standards.

Flexible flat copper braid connectors span the entire conductive path on the DC side of energy storage systems, with three core application scenarios covering the complete energy storage cabinet assembly:

1. Interconnections within and between battery modules: They accommodate the minute displacements caused by cell expansion and contraction during charge/discharge cycles, thereby preventing failures associated with rigid connections.

2. Connections between battery clusters, DC busbar cabinets, and PCS (Power Conversion System) inputs: They compensate for assembly tolerances and equipment vibrations, avoiding heat generation caused by stress concentration.

3. Dynamic conductive nodes within high- and low-voltage switchgear: Serving as an alternative to traditional round cables, they enable high-current (thousands of amperes) flat-profile routing in confined spaces and reduce overall circuit impedance.

Our company specializes in a comprehensive range of conductive components, including Copper Braided Flexible Busbar Connector for energy storage and epoxy-coated copper busbars. Leveraging our group's end-to-end manufacturing system, we possess in-house capabilities for stamping, welding, CNC machining, electroplating, and mold development, ensuring full control over every stage of production. With 30 years of technical expertise in the electrical industry, we offer both standard products and customized, cost-optimized solutions. Our products hold ISO9001, IATF16949, RoHS, and REACH certifications. We are committed to localized service in overseas markets and offer rapid prototyping (1–2 days), mold development and delivery (20–30 days), and volume supply (15–20 days) to meet the diverse requirements of various projects.

If you are seeking flexible connection solutions for new energy storage cabinets, battery systems, or high-current applications, we can provide professional design recommendations for Copper Braided Flexible Busbar Connector tailored to your specific current requirements, spatial constraints, and operating environments. Please contact us for detailed technical support and product solutions.
