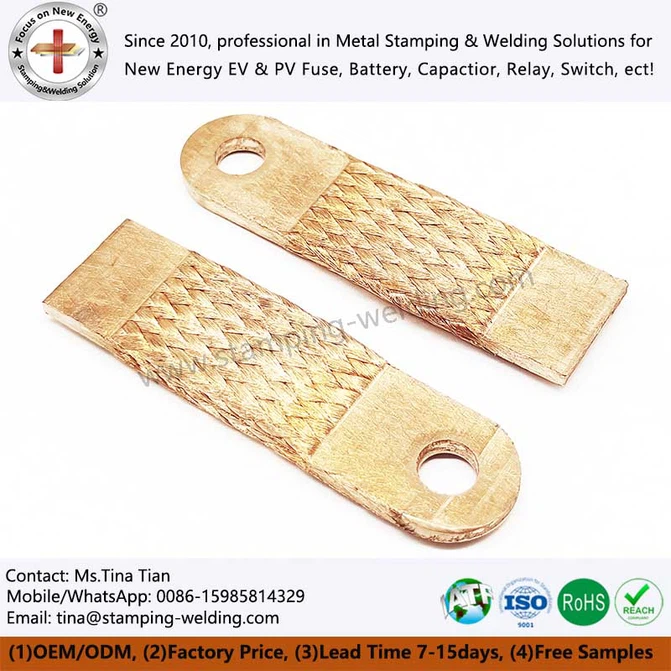

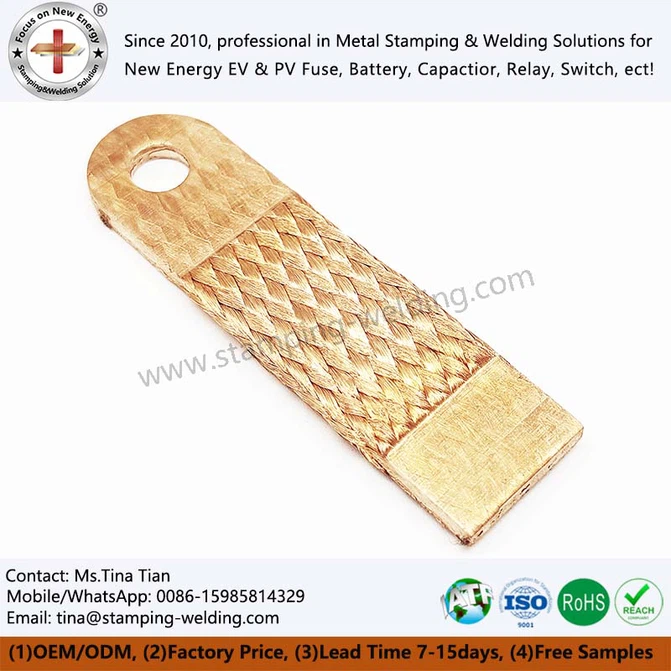

Copper Flexible Braided Bus Bar: Innovative Conductive Solution for Power Transmission

As a sub-category of wire and cable products in the electrical engineering field, Copper Flexible Braided Bus Bars are advanced conductive components specifically designed for power transmission. Their function lies in utilizing high-conductivity copper materials to achieve low-impedance current transmission, while their unique flexible structure allows them to easily adapt to complex and variable installation environments. In fields with stringent requirements for power transmission stability, such as industrial equipment, new energy systems, and data centers, flexible copper busbars demonstrate superior performance advantages, making them an idealternative to traditional rigid busbars.

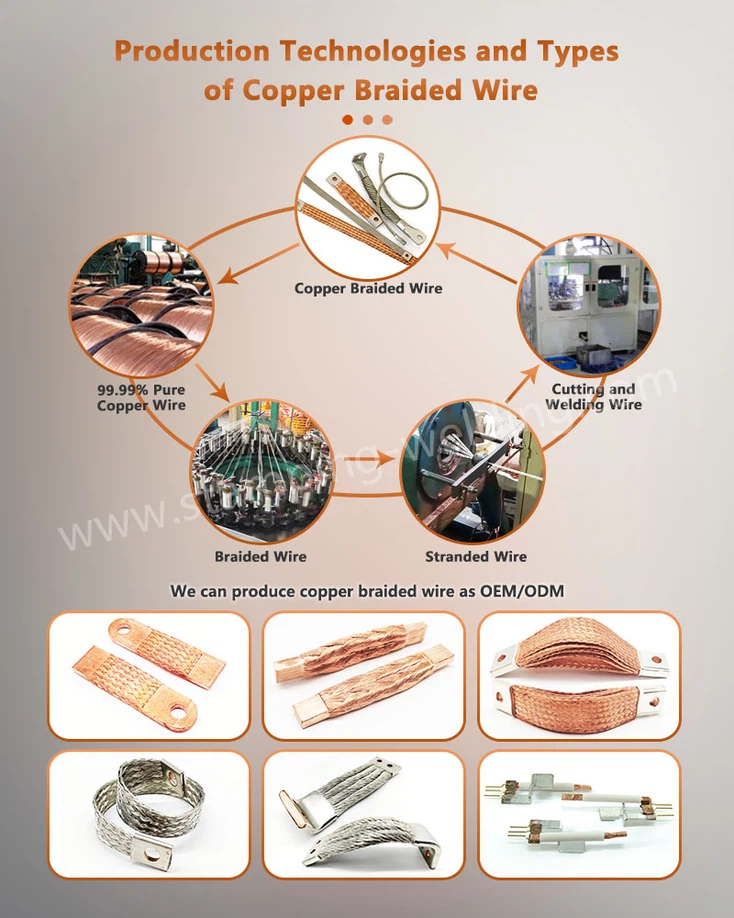

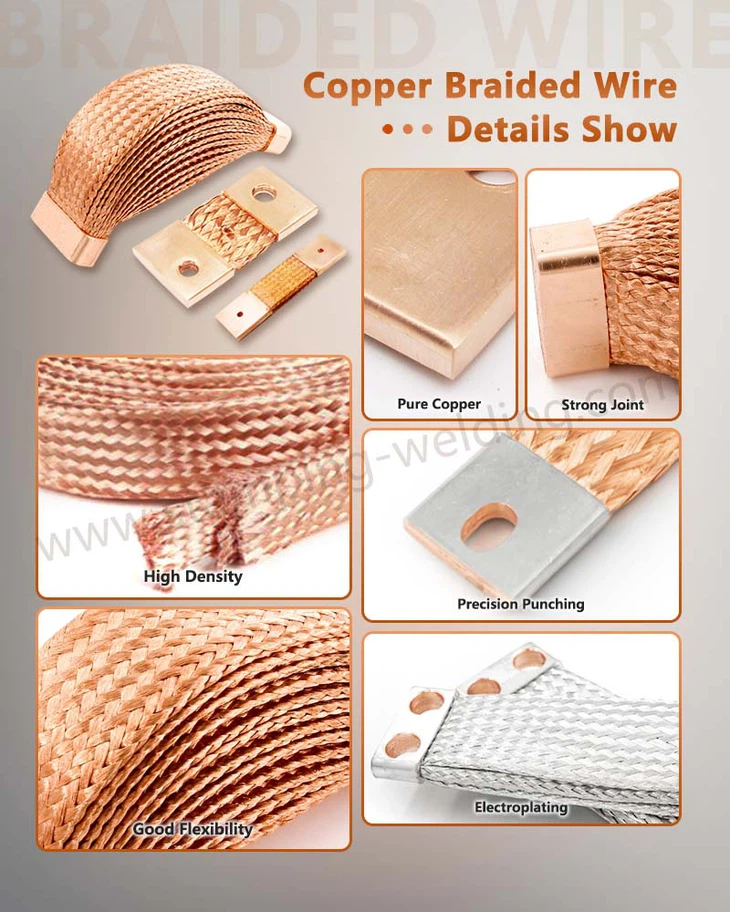

The flexible copper busbar uses high-purity electrolytic copper as the conductor base material and forms a flexible structure through multi-layer copper foil superposition or a weaving process. Among them, the braided form of Copper Braided Wire is particularly outstanding in dynamic applications that require repeated bending. This design not only ensures the high conductivity of copper (the conductivity can reach more than 98% under international standards), but also reduces the mechanical stress during installation through its flexible characteristics. Flexible busbar structures represented by Flexible Braided BusBar can effectively absorb vibration and thermal displacement during equipment operation. The outer layer is usually wrapped with an insulating material, such as heat shrink tubing or silicone, to prevent short circuits and improve environmental resistance. The low impedance feature comes from the physical properties and structural design of copper - the conductor cross-sectional area is optimized to reduce resistance, and the flexible structure avoids the increase in resistance caused by bending of the hard busbar. In this type of application, Flexible Copper BusBar manufacturers usually use braid density and end welding process as core quality control points.













































































This type of Flexible Insulated Copper Busbars is widely used in complex scenarios that require efficient power transmission and limited space, demonstrating strong adaptability. In the field of industrial automation, flexible copper busbars are an ideal connection solution for dynamic components such as robotic arms and servo motors. They can adapt to the fatigue stress caused by repeated movements of equipment and replace traditional hard busbars that are easy to break.
In the field of new energy, especially in photovoltaic inverters and energy storage systems, its low impedance characteristics directly translate into a reduction in energy loss, improving the overall conversion efficiency of the system. In data centers that have strict requirements on power supply stability, high conductivity design supports the stable operation of high-power servers, and Copper Braided Busbars For Electrical provide great convenience for complex wiring between dense cabinets. In addition, strict compliance with production specifications of international standards (such as IEC 60228) ensures wide compatibility of products at different voltage levels (such as 400V to 1000V) and in different geographical environments.















































































The highlight of the core technology of Flat Copper Braid Flexible is that it balances electrical conductivity and mechanical adaptability, and has excellent performance in practical applications. The high conductivity design increases transmission efficiency by approximately 10%-15%, while the flexible structure can withstand a bending angle of at least 90 degrees to meet complex wiring requirements. The production process, in line with international standards (such as the IEC 60228 conductor standard), ensures the consistency of the product, and its impedance value fluctuation range can be controlled within ±5%. The stable performance enables Braided Connectors to adapt to various scenarios with stringent power transmission requirements, providing a guarantee for the stable operation of the equipment.



























































When you choose our Copper Flexible Braided Bus Bar, you choose safety and efficiency. Welcome to contact us to obtain exclusive technical solutions.
