Core advantages and selection guide of Busbar heat shrink sleeve

PE heat shrink tube insulated busbar is a specialized material designed for busbar insulation protection, widely used in power equipment such as substations, electrical cabinets, high and low voltage switchgear, etc. Its core function is to achieve busbar protection through a dense insulation layer, shorten the insulation distance between phases, effectively avoid various electrical safety hazards, and ensure the stable operation of the power system. It is a key auxiliary component in the operation and protection of power equipment. With its multiple protection advantages, it effectively solves many problems such as safety, corrosion, and spatial layout that exist in traditional bare busbars, and has become an indispensable insulation protection product in the power industry.

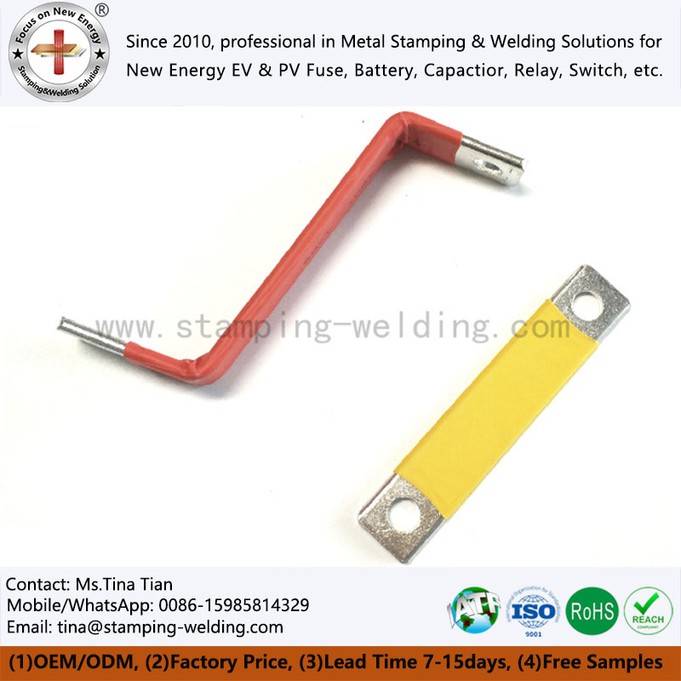

Busbar heat shrink sleeve

The wide application of Heat shrink tube polyolefin busbar is due to its multiple protection advantages that fit the power scene, accurately solving various pain points during the operation of bare busbar.

Firstly, to ensure the safety of personnel operations, in old-fashioned substations, when the switch busbar and busbar lack insulation protection, it is easy for maintenance personnel to touch live objects and get injured. The busbar heat shrink tubing can achieve effective insulation protection, greatly reducing the incidence of such safety accidents and improving the safety of maintenance operations.

Secondly, it has excellent anti-corrosion performance. Salt haze in coastal areas and industrial waste gas from heavy industries can cause corrosion to the busbar. PVC insulation busbar can effectively block such corrosive media, extend the service life of the busbar, and reduce equipment maintenance costs.

Thirdly, it is necessary to prevent short circuit faults caused by small animals. In substations, small animals approaching or touching exposed live objects inside the cabinet can easily cause phase to phase short circuits. The heat shrink tubing of the busbar can provide good insulation performance for the live conductors, and even if small animals enter, it can avoid tripping, burning and other faults.

Fourthly, it is suitable for harsh environments and protection against old equipment. As air pollution intensifies and the pollution level of substations increases, faults in old substations occur frequently. The Heat Shrink tubing busbar can provide comprehensive protection for the substation busbar, reduce the occurrence of faults, and ensure the normal operation of equipment.

Fifth, optimize insulation performance and spatial layout. Bare busbars not only pose safety hazards, but also have excessive insulation spacing between phases, making it difficult to meet design requirements. Busbar heat shrink tubing can prevent short circuits caused by foreign objects overlapping, while also resisting frost and condensation problems caused by large temperature differences and high humidity in northern autumn and winter, avoiding phase discharge and short circuits, and shortening the phase distance, achieving equipment structure compactness.

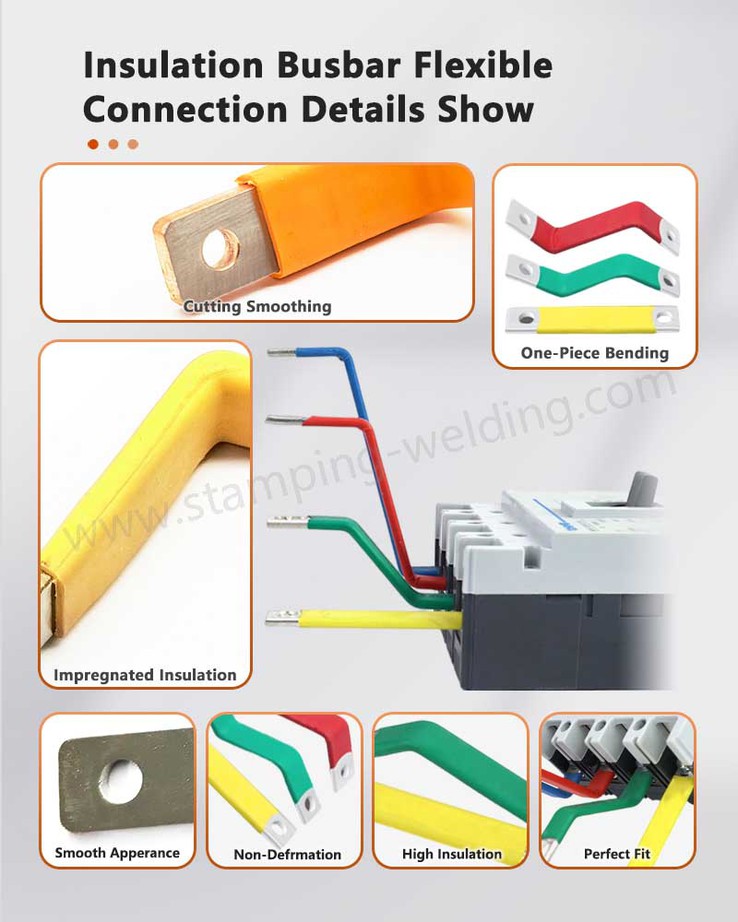

Details show of Busbar heat shrink sleeve

When choosing Busbar insulating tubing, it is necessary to consider the usage scenario and equipment requirements, and focus on the following points in order to select a suitable, safe, and durable product.

Firstly, to clarify the voltage level, it is necessary to determine the voltage level of the required busbar heat shrink tubing based on the actual application scenario. Common specifications include 1kv, 10kv, 35kv, and higher voltage. Voltage level matching is the basis for ensuring insulation protection effect and avoiding insulation failure caused by inconsistent levels.

Secondly, choose the appropriate diameter, which is the diameter of the heat shrink tubing for the busbar (such as 30mm for a diameter of 30mm). It is necessary to choose a product with a moderate diameter to ensure that it can tightly fit the busbar after heat shrinkage, without looseness or tightness, and to ensure protective performance.

Again, pay attention to product quality, which directly determines the safety and service life of use. It is important to focus on materials and workmanship. High quality materials and fine workmanship can ensure that Busbar insulation sheets have good heat and cold resistance and can adapt to different working conditions at high and low temperatures.

Finally, priority should be given to legitimate manufacturers with production licenses. Such manufacturers produce products with better quality assurance and can provide more comprehensive after-sales service to avoid affecting the normal operation of power equipment due to product quality issues.

The application scenarios of Heat shrink busbar are concentrated in the field of insulation protection of power equipment, and its core adaptation is in the following scenarios: in substations, it is used for insulation protection of high-voltage busbars, isolating pollutants and charged bodies, ensuring the normal and safe operation of the power system.

In electrical cabinets, it is used for busbar insulation protection, shortening phase to phase distance, preventing occasional short circuit accidents, and optimizing the spatial layout inside the cabinet.

In high and low voltage switchgear, busbar insulation protection is implemented to make the switchgear structure more compact, while blocking the corrosion of chemical substances on the busbar, ensuring the stable operation of the switchgear in all aspects.

Overall, the use of Customized busbar insulating tubes not only improves the safety of various electrical equipment, reduces the risk of leakage, but also helps the power system achieve long-term stable operation.

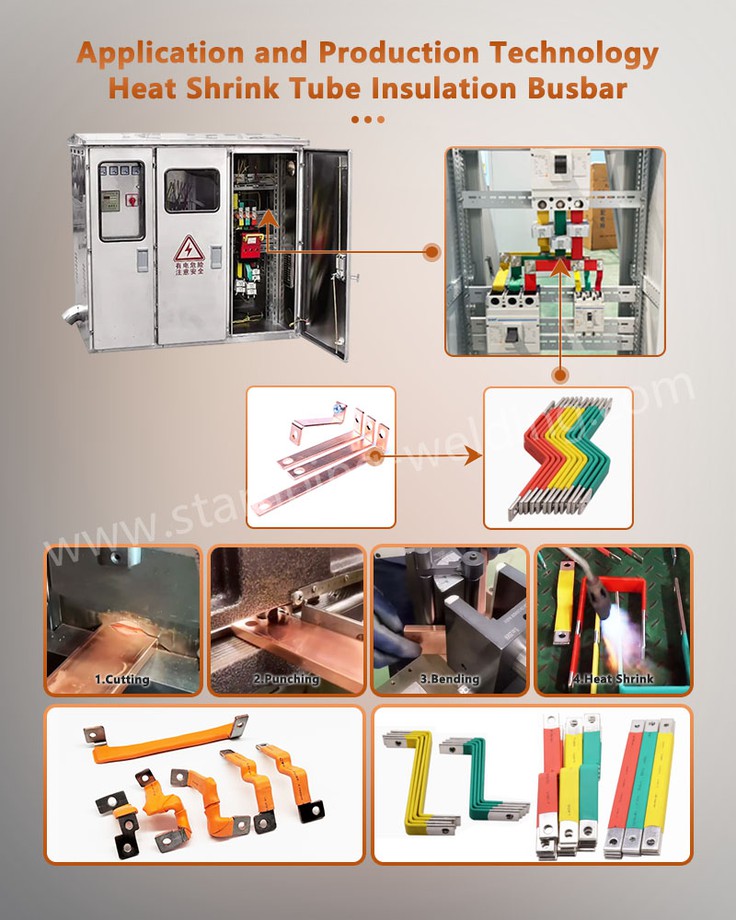

Applications and production technology of Busbar heat shrink sleeve
