Definition and structure of Energy storage cabinet for outdoor

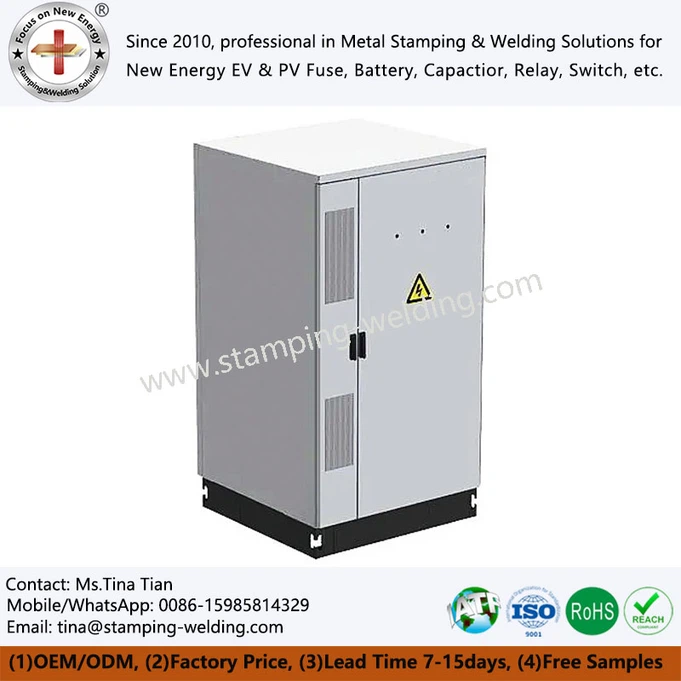

An Energy storage system cabinet is an integrated device used for storing electrical energy, typically consisting of key components such as a battery pack, inverter, and control chip. Its core function is to store electrical energy when there is sufficient power supply and release it for use when needed, commonly used to provide backup power and stabilize grid voltage.

In addition, the Pylontech us5000 cabinet can also smooth out power fluctuations when non grid connected new energy is connected to the grid, maintain grid stability, suppress load jumps, play a role in frequency and voltage regulation, and improve power factor.

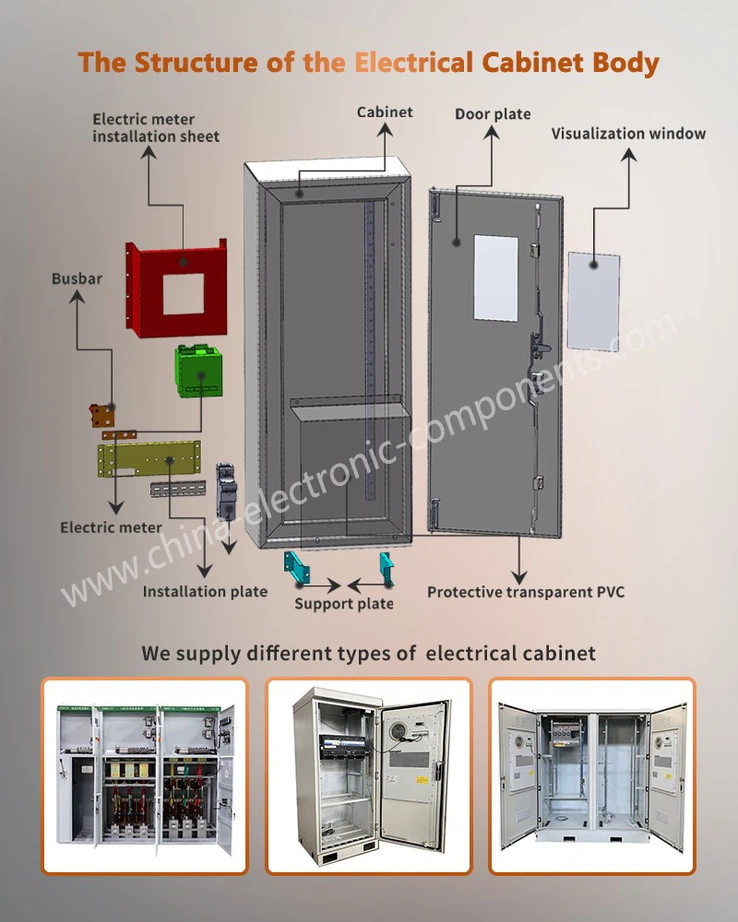

The structure of a Solar battery storage cabinet mainly consists of the following parts: the battery module serves as the energy storage core, used for storing electrical energy, and common types include lithium-ion batteries, lead-acid batteries, etc; The Battery Management System (BMS) is responsible for monitoring the battery status, controlling the charging and discharging process, preventing abnormal situations such as overcharging, overdischarging, and overcurrent, and ensuring the safe and efficient operation of the battery; Inverters convert stored DC electrical energy into AC electrical energy to adapt to power systems or other equipment.

The control system of the Battery energy storage cabinet monitors and controls the operational status, energy management, and communication functions of the energy storage units; The cooling system maintains the energy storage unit within a safe temperature range through components such as fans and heat sinks; The casing and connector provide mechanical support and protection to ensure electrical connection with external devices.

The faults of Outdoor energy storage cabinets mainly involve the following types: battery faults (such as battery aging, overcharging and discharging, internal short circuits, etc., which may lead to performance degradation or damage, affecting the overall operation of the battery pack); Electrical faults (such as overcurrent, overvoltage, undervoltage, insulation faults, etc., which may cause equipment damage or safety hazards); Mechanical failure (such as external impact, vibration, etc., which may cause damage or loosening of mechanical components of the Energy storage integrated cabinet); Environmental impacts (such as extreme temperature, humidity, corrosion, etc., which can affect equipment performance and safety); Design and manufacturing defects (defects in the design or manufacturing process that may also lead to system failures).

Liquid cooled energy storage cabinets can be classified based on their structure and battery type. In the structural classification, the components of a discrete energy storage cabinet are independently placed in the cabinet, which has a low failure rate, is easy to maintain, but occupies a large area and is expensive; The components of the modular energy storage cabinet are divided into independent cabinets, which can be freely combined to form different capacity systems, with high flexibility but complex installation; The base type energy storage cabinet battery pack and power electronic equipment are installed on the base, with a sealed design suitable for outdoor use, occupying a small area but with limited capacity; The components of the integrated energy storage cabinet are integrated into a single cabinet, which is compact and portable but has poor scalability and difficulty in troubleshooting.

In the classification of battery types, lithium-ion battery cabinets are efficient and environmentally friendly, with high charging and discharging efficiency, high energy density, long lifespan, and flexible customization of size and capacity; Lead acid battery cabinet technology is mature and cost-effective, but it has a high self discharge rate and requires regular maintenance; Super capacitor cabinets have fast charging and discharging, long lifespan, no pollution, strong adaptability, but low energy storage density and high cost; Photovoltaic energy storage cabinets are divided into centralized (large power plants) and distributed (household/industrial and commercial), adapting to different scene requirements.

As a key equipment for energy storage, the selection and deployment of an Energy storage cabinet for outdoor require professional support for specific scenarios. If you need further information on product specifications or customized solutions, please feel free to contact us at any time. We will provide you with professional technical consulting services.
