Detailed knowledge of essence of PLC cabinet components

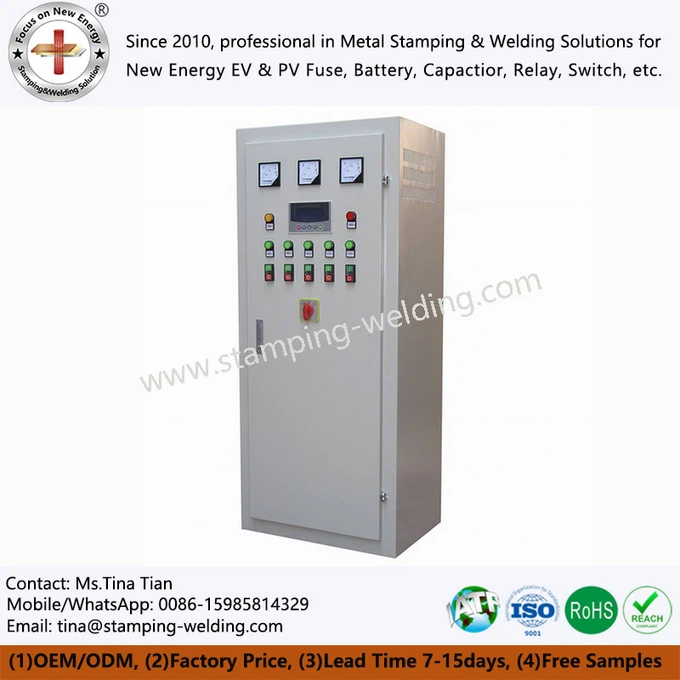

The Standard PLC cabinet has complete electrical protection functions for overload, short circuit, and phase loss. The overall structure is compact, the operation is stable, and the functional configuration is complete. It can be flexibly combined according to the actual control scale. It can achieve independent automatic control of a single cabinet or form a distributed control system through industrial Ethernet or fieldbus, which is suitable for various large, medium, and small industrial automation scenarios.

This type of Application cabinet is widely used in industries such as power, metallurgy, chemical, papermaking, and environmental wastewater treatment. It can achieve equipment automation and process automation control, support network communication and remote monitoring, and is the core equipment of modern industrial automation systems.

PLC cabinet components mainly consist of five basic components, which can be expanded according to engineering needs. The main air switch serves as the main power control unit for the cabinet, providing power management and basic protection for the entire system; PLC is the core control unit, and integrated models can be selected for small projects. For large and complex systems, modular card structures are used, and redundant solutions can be configured for key scenarios.

24VDC switch power supply is used for low-voltage power supply, and some PLC system cabinet for sewage have built-in power supplies that can be selected according to actual needs; Relays are used for signal voltage conversion to achieve matching and switching between PLC output and different voltage control circuits; Terminal blocks are used to standardize line connections and ensure stable signal transmission. If external instruments or network communication are required, auxiliary components such as air switches and switches can be added.

Electric cabinets PLC panel cabinets need to operate in a standardized environment to ensure long-term stability and reliability. The power supply supports DC24V and AC220V, with a voltage fluctuation range of -10%~+15%, a frequency of 50Hz, and a conventional protection level of IP41 or IP20.

The operating environment temperature of the PLC control cabinet power distribution panel should be controlled between 0 ℃ and 55 ℃, avoiding direct sunlight, with a relative humidity of less than 85% and no condensation; The installation location should be far away from strong vibration sources, avoiding continuous vibrations with a frequency of 10~55Hz. It is also prohibited to use it in environments with corrosive or flammable gases to prevent damage or failure of internal components.

The essence of an Industrial PLC cabinet is a specialized industrial control computer, consisting of six hardware modules. The power module provides stable power supply for the system and can adapt to a certain range of voltage fluctuations; The central processing unit (CPU) is the control center responsible for program execution, signal processing, and fault diagnosis. Large systems often adopt dual CPU redundancy design to enhance reliability.

The memory of Automation control cabinet is divided into system program memory and user program memory, which respectively store system software and control programs; The input-output interface circuit realizes on-site signal acquisition and control instruction output; The functional module is responsible for specialized control such as counting and positioning; The communication module is used to achieve networking, data transmission, and communication with the upper computer.

If you have any requirements for PLC cabinet components selection, customization, design, or technical solutions, please feel free to contact us at any time. We will provide you with a professional and reliable one-stop solution.
