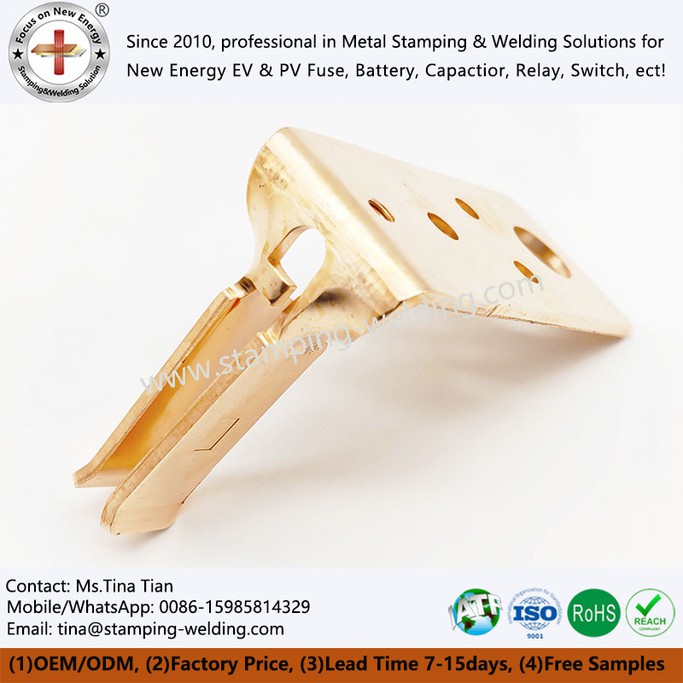

Fuse copper knife comprehensive analysis structure, function and application guide

Fuse copper knife is a basic equipment used in electrical systems to fix fuses and provide stable electrical connections. It is the core structural component of low-voltage fuses and, together with the fuse link and supporting components, forms a complete fuse protection device. The fuse holder achieves reliable electrical isolation through insulating materials, ensuring stable transmission of normal current.

At the same time, the Fuse copper holder has physical protection, dust and moisture prevention functions, which can effectively avoid damage to the fuse caused by external forces and environmental factors. In addition, it also supports quick replacement of fuses after faults, thereby improving the maintenance efficiency of the system.

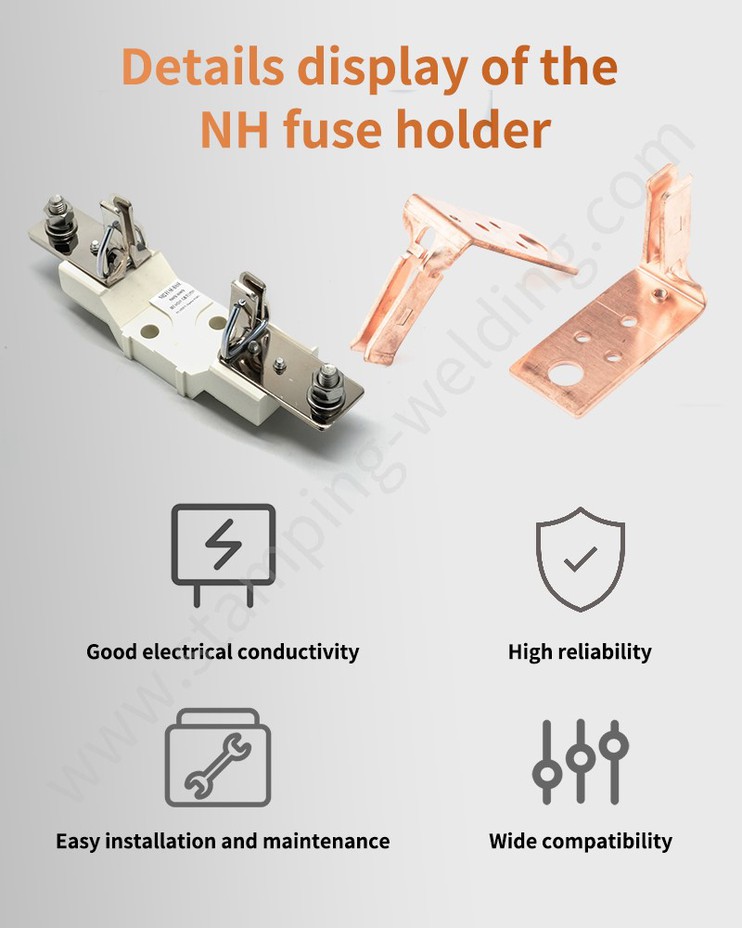

The Fuse copper knife itself does not directly disconnect the circuit, its main function is to provide a stable working platform for the fuse. When the circuit is overloaded or short circuited, the fuse is melted by heat to achieve power-off protection, while the base is responsible for ensuring that the fuse is securely installed and the electrical connection is reliable. The interior of the fuse holder is mainly composed of conductive sheets, insulation holders, connecting screws, and protective covers (or shielding covers).

The conductive sheet is made of high conductivity materials to achieve reliable connection between the power supply side and the load side; NH fuse base is used to support, fix, and isolate circuits; Connect screws to ensure stable wire connection; A protective cover or shield can prevent accidental electric shock and improve safety during use.

Copper knife for NH fuse can be classified according to installation methods, pole numbers, functions, and application areas. Common installation forms include DIN rail installation type and screw fixation type; Polar numbers cover 1P, 2P, 3P, and 4P; some products are equipped with fuse indicators for quick identification of fault states.

Pure copper base for NH fuse has multiple specifications, suitable for fuses of different sizes. Key electrical parameters include rated voltage and rated current, which can meet the needs of various scenarios such as industrial distribution, photovoltaic systems, charging stations, and automotive circuits. Among them, photovoltaic systems usually use high-voltage DC dedicated bases, while corresponding dedicated models need to be selected for automotive and charging pile applications. The modular and compact design also makes it easier to install and integrate into the system.

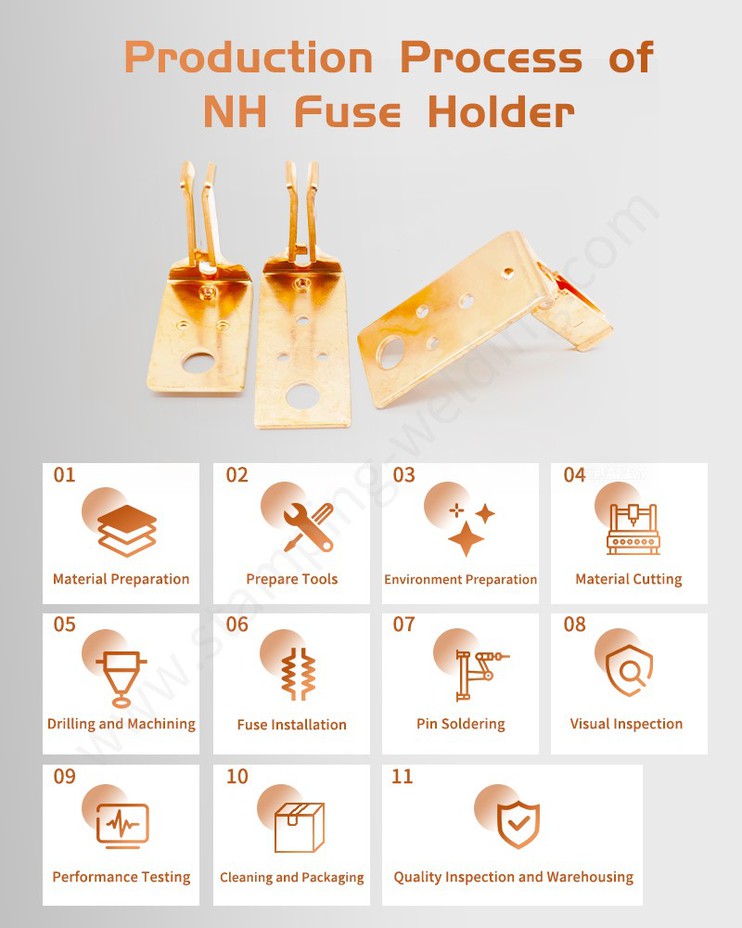

Copper holders for fuse base insulation components are mostly made of high-temperature and arc resistant resins, ceramics, or phenolic resin materials; Conductive components are mainly made of high conductivity materials such as pure copper and silver alloys, and some Knife contacts use quartz sand as the arc extinguishing medium inside to enhance safety performance. The manufacturing process focuses on material strength, insulation resistance, and environmental adaptability to ensure that the product can operate stably over a wide temperature range.

If you encounter any technical problems during the selection, parameter matching, installation and maintenance process of Fuse copper knife, please feel free to contact us at any time. We will provide you with professional technical consultation and selection suggestions to help ensure the safe and stable operation of your electrical system.
