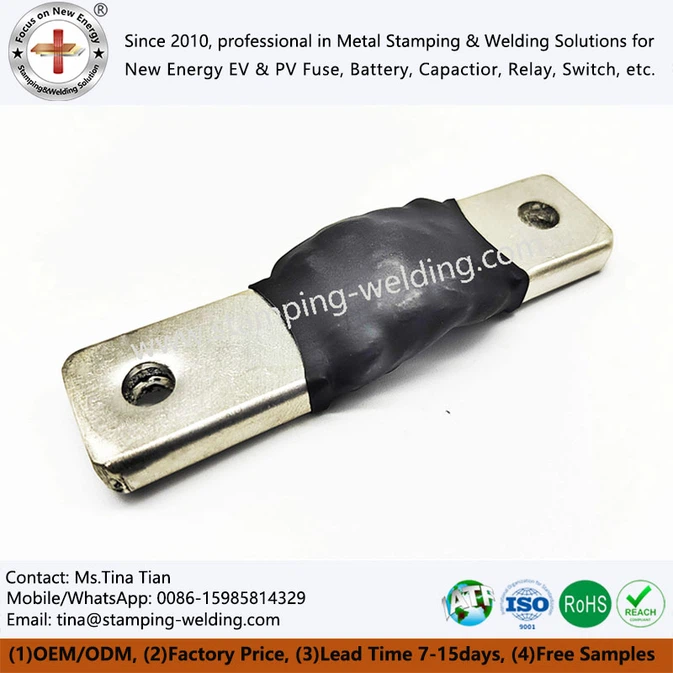

In-depth analysis of PE Heat Shrink Tube Insulated Busbar industry knowledge and product application guide

As the global manufacturing industry continues to upgrade, new energy, power and electrical, high-end equipment and other fields are booming. As a key insulation and protective material, PE Heat Shrink Tube Insulated Busbars have continued to increase market demand and technical standards. Heat shrink tubing plays an irreplaceable role in scenarios such as cable connection, terminal sealing, busbar insulation, and component protection due to its ability to shrink when exposed to heat and tightly wrap the covering. From basic colored insulated heat shrink tubing, black heat shrink tubing, to functional transparent heat shrink tubing, yellow and green two-color heat shrink tubing, double-walled heat shrink tubing with glue, to special applications such as Busbar Sleeves Insulation (busbar insulation sleeve), high-voltage busbar heat shrink tubing, cable heat shrink tubing finger sleeves, patterned heat shrink tubing, etc., the product series is increasingly enriched, which puts forward higher requirements for manufacturers' R&D capabilities, production processes and quality control.

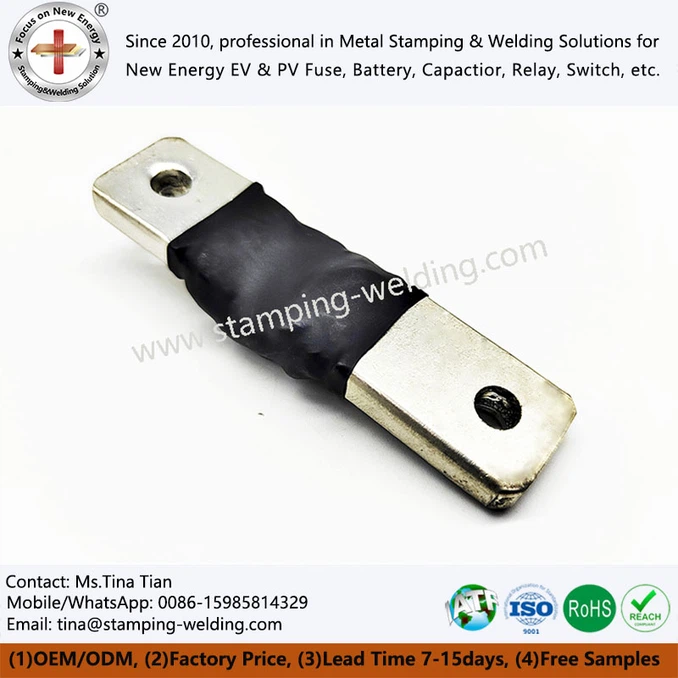

When selecting heat shrink tubing, it is important to understand the specific requirements of the application scenario. Factors such as voltage level, ambient temperature, chemical corrosion resistance, flame retardant requirements, mechanical protection level, and other factors need to be considered. For example, if sealing and waterproofing are required, double-walled heat shrink tubing with glue is a suitable choice; if there is a need for color identification, such as yellow and green for grounding, you must select accordingly. For high-voltage busbar insulation scenarios, Heat Shrink Tube Polyolefin Busbar (polyolefin busbar heat shrinkable tube) with uniform wall thickness and excellent tracking resistance needs to be selected; in outdoor or humid environments, moisture-proof and UV-resistant products should be selected; for joints with strict sealing requirements, double-walled heat shrinkable tubes should be selected. Products such as Busbar Insulating Tubing not only ensure electrical performance, but also need to have good mechanical properties to adapt to different working conditions.















































































General-purpose heat shrinkable tubes: Colored insulated heat-shrinkable tubes, black heat-shrinkable tubes, transparent heat-shrinkable tubes, and other general-purpose products with a wide range of applications. Colored insulating heat-shrinkable tubes can be used to distinguish lines and facilitate maintenance and management; black heat-shrinkable tubes have good light-shielding and weather resistance, and are suitable for general electrical insulation situations; transparent heat-shrinkable tubes make it easy to observe internal connections and are often used in scenes with high visualization requirements.
Functional heat shrinkable tubing: Yellow and green two-color heat shrinkable tubing is mainly used for grounding markings and complies with electrical safety regulations; double-walled heat shrinkable tubing has hot melt adhesive on the inner wall, which can fill gaps during the shrinkage process to achieve a good sealing effect. It is suitable for joints with high sealing requirements; patterned heat shrinkable tubing has special patterns on the surface, which increase friction and can be used in situations where anti-skid is required.
Special heat-shrinkable tubes: High-voltage busbar heat-shrinkable tubes, such as Heat Shrink BusBar, are used for insulation protection of high-voltage busbars and need to have high voltage resistance and tracking resistance; cable heat-shrinkable tube finger sleeves are used for sealing and insulation of cable terminals; EV Battery Connector-related heat-shrinkable tubes must meet the strict requirements of new energy vehicles for electrical performance, safety and durability.



























































As the industry continues to develop, Heat Shrink Tubing BusBar products continue to innovate. In terms of materials, the application of new polyolefin materials has improved the heat resistance, chemical corrosion resistance and mechanical properties of the products; in terms of technology, precision manufacturing technology has improved the dimensional accuracy and appearance quality of the products. At the same time, in order to meet the needs of new energy vehicles and other fields, heat shrinkable tube products are developing in the direction of thin wall, high precision and high performance. For example, Solid Insulation Tubing Busbar further reduces the volume and improves space utilization while ensuring insulation performance.





We also provide Customized Busbar Insulating Tube services. We can design and producePE Heat Shrink Tube Insulated Busbar products that meet specific specifications and performance requirements according to customers' specific needs to meet the personalized needs of different application scenarios.
