Power distribution cabinet electrical specification guide

The site selection and foundation construction of outdoor Power distribution cabinets are prerequisites for ensuring their stable operation, and must strictly comply with relevant regulatory requirements. In terms of site selection, priority should be given to areas with high terrain, dry and difficult to accumulate water, and low-lying areas should be avoided to prevent electrical accidents caused by flooding in rainstorm weather. For site selection in mountainous areas, priority should be given to locations with high slopes and good drainage;

At the same time, it is necessary to stay away from places with corrosive gases, dust, and flammable and explosive substances, such as around chemical industrial parks, and maintain a safe distance of not less than 50 meters from production areas to avoid corroding components or causing safety hazards; In addition, the site selection should be easy to operate, maintain, and repair. A minimum of 0.8 meters of passage should be reserved around the distribution cabinet, and nearby roads should meet the traffic needs of equipment transportation vehicles.

On the basis of basic requirements, a reinforced concrete structure should be used to ensure sufficient strength and stability. The foundation size should be 100-200 millimeters larger than the Key control cabinet shell, with a top level error of no more than 5 millimeters/meter and a height of no less than 300 millimeters to prevent rainwater from pouring in. The specifications and spacing of the embedded anchor bolts in the foundation should meet the installation requirements, with a diameter of no less than M12 and a spacing of no more than 500 millimeters, used to fix the distribution cabinet. ​

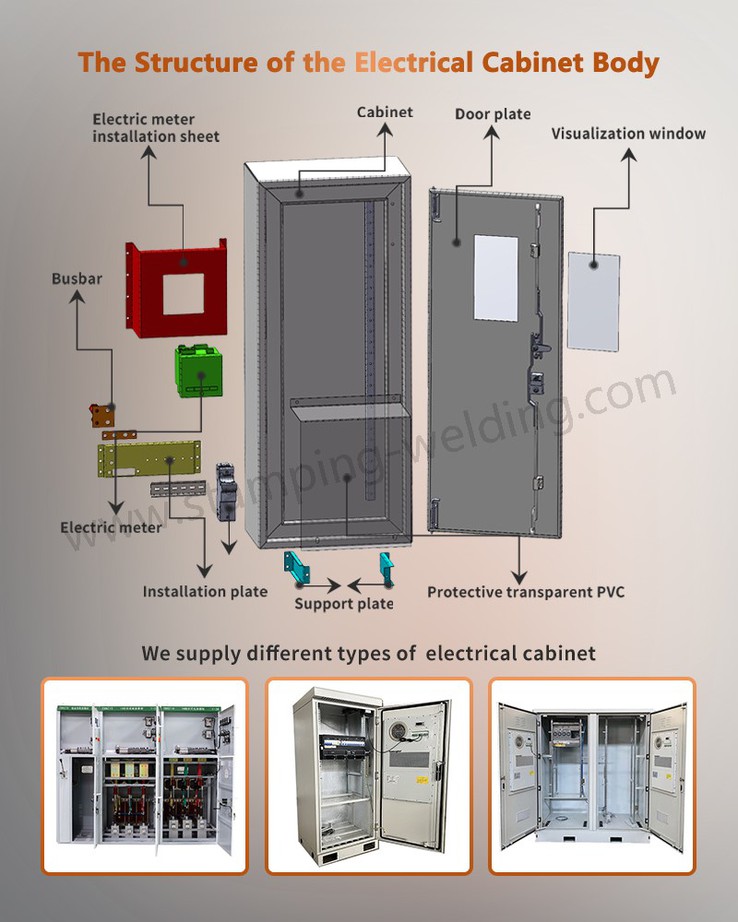

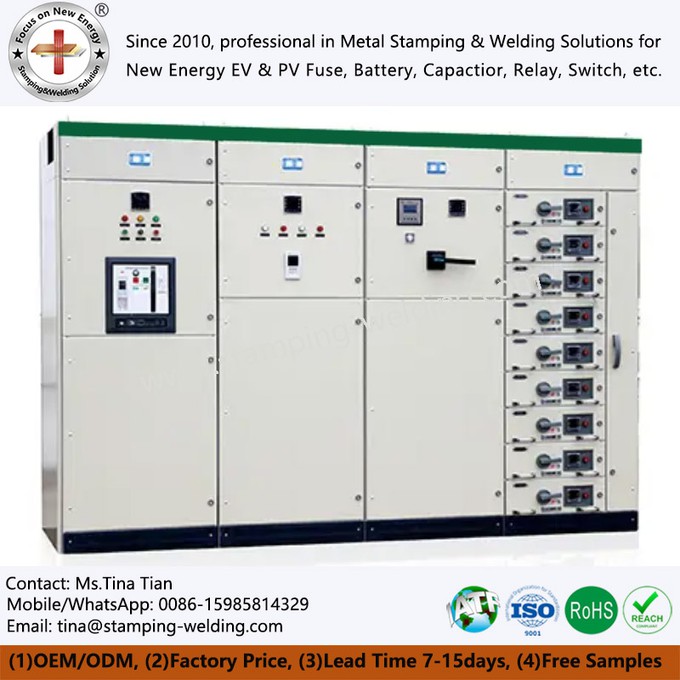

The structure and protective performance of the Power distribution cabinet directly determine its ability to adapt to outdoor environments, and it needs to meet the dual requirements of structural strength and protection level. The cabinet structure should be made of high-quality steel, with a thickness determined according to the size of the cabinet and the usage environment, not less than 1.5 millimeters, to ensure sufficient strength and rigidity to withstand mechanical stress and external impact forces; The cabinet should be reasonably partitioned, including busbar area, circuit breaker area, secondary circuit area, etc. Each partition should be separated by partitions with good insulation and fire resistance to prevent the spread of faults; At the same time, ventilation holes and heat dissipation channels with protective nets should be set up. The protective net can prevent small animals from entering and causing short circuits. The cross-sectional area of the heat dissipation channel should not be less than 5% of the cabinet cross-sectional area to ensure the heat dissipation of electrical equipment inside the cabinet.

In terms of protection requirements, the protection level of Access control cabinets should not be lower than IP54, which can effectively prevent dust and splashing water from entering from all directions. The protection level identification should be clearly marked in a prominent position; The cabinet sealing strip should have good weather resistance and elasticity, and be checked and replaced regularly every 2-3 years to prevent rainwater and dust from entering; The cabinet door needs to be equipped with an anti-theft lock, which tightly fits the cabinet after being closed, further enhancing the protective effect. ​

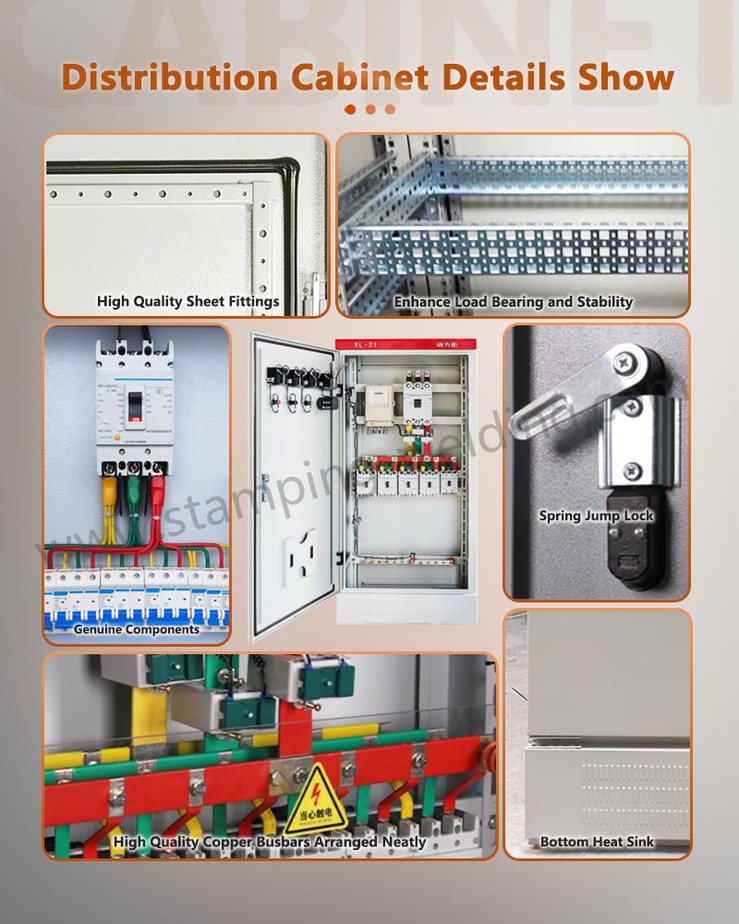

The standardized installation of electrical components is the core of the safe operation of Climate controlled cabinets, with a focus on the installation requirements of busbars and circuit breakers. The installation of busbars requires the use of copper or aluminum bars, with specifications determined based on the rated current and short-circuit current. Bolt connections are used, and the connection parts are treated with tin or silver plating to reduce contact resistance; The busbars are arranged neatly and orderly, with a phase sequence that complies with the regulations of yellow for phase A, green for phase B, and red for phase C. The distance between phases is not less than 50 millimeters, and the relative distance to ground is not less than 25 millimeters. At the same time, insulation supports made of ceramic or epoxy glass cloth materials are provided to fix the busbars and ensure insulation performance.

The installation of circuit breakers for Electrical control cabinets should be selected according to the nature and capacity of the load, with a rated current not less than the rated current of the load, and the opening and closing time meeting the design requirements; The circuit breaker is installed vertically in a position that is easy to operate and maintain, with securely and reliably connected wires, and a cross-sectional area that matches the rated current of the circuit breaker; In addition, circuit breakers need to be equipped with overcurrent, overvoltage, undervoltage and other protection devices, adjust the setting value according to the actual load situation, and have good arc extinguishing performance to ensure that the circuit can be quickly cut off in case of short-circuit faults. ​

The electrical specifications of Industrial control cabinet run through the entire process of site selection, foundation, cabinet, and component installation, and the implementation of each standard link directly affects the safety, stability, and service life of equipment operation. Strictly following site selection and basic standards can avoid safety hazards caused by environmental factors; Implementing the structure and protection requirements of Motor control cabinet can enhance the adaptability of equipment to harsh outdoor environments; Standardizing the installation of electrical components can ensure stable electrical performance of equipment and prevent electrical failures from occurring. Only by fully implementing various standards can we ensure the long-term safe and stable operation of outdoor distribution cabinets, and provide reliable guarantees for various outdoor electricity scenarios. ​
