PV Cable Clips
PV cable clips are highly reliable fasteners—made of engineering plastic or metal—designed for securing cables and managing cable routing within solar photovoltaic systems. Their primary function is to ensure the secure fastening and orderly routing of cables among PV modules, mounting structures, and combiner lines, while maintaining long-term stability against environmental factors; this enhances the operational safety and maintenance efficiency of the entire PV power plant. In large-scale ground-mounted plants, distributed rooftop systems, and BIPV (Building-Integrated Photovoltaics) applications, cables are continuously exposed to UV radiation, wind loads, temperature cycling, and mechanical vibrations. Without effective securing, these conditions can lead to cable abrasion, loosening, sagging, or even electrical hazards.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PV Cable Clips During the installation of photovoltaic (PV) power plants, attention is often focused on PV modules, inverters, and mounting structures, while a seemingly minor yet critical component-the cable clip-is frequently overlooked. Without effective securing and management, the densely arranged DC cables connecting PV strings and inverters are susceptible to displacement, friction, and even insulation damage caused by factors such as wind-induced vibration, gravity, temperature fluctuations, and animal activity. Any minor point of damage can pose a potential electrical safety hazard to the entire PV system.

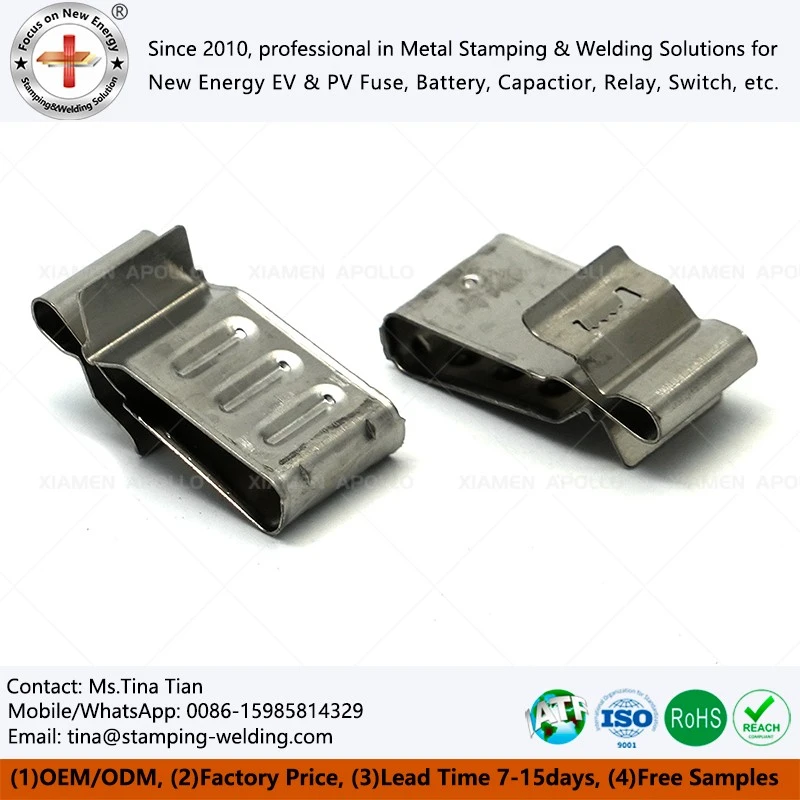

This product is a specialized cable clip designed for PV power generation systems, primarily used to secure, organize, and protect the cables connecting PV modules, inverters, and junction boxes. The product range includes both stainless steel and engineering plastic clips, catering to diverse installation environments and project requirements. It is suitable for a wide range of applications, including rooftop PV systems, ground-mounted power plants, PV carports, and agrivoltaic installations.
In-Depth Analysis of Product Advantages
Stable Performance
The stainless steel material maintains its mechanical properties under extreme temperatures (-40°C to +85°C)-far outperforming standard materials-and prevents loosening caused by seasonal thermal expansion and contraction.
Cost Optimization:
Although the initial investment is slightly higher, the total cost of ownership (TCO) over the product's lifecycle is lower due to its exceptional longevity and minimal maintenance requirements. Ease of installation allows for a 20–30% reduction in labor costs for Solar Panel Cable Clips Stainless Steel.
Environmental Sustainability
The materials are fully recyclable, and the manufacturing process prioritizes low-carbon techniques, helping customers meet their green certification goals for Stainless PV Wire Clip.
High Compatibility
Compatible with frame thicknesses from leading PV module brands (such as Jinko, LONGi, and Trina) and suitable for a wide range of roof types (including clay tile, color steel, and concrete).
Detail Showcase: A Close-Up Look at Engineering Quality
| Chamfered Cable Entry | The Solar PV Cable Clips clamp opening features a distinct chamfered guide and a flared structure. This detail allows cables to slide easily into the clamp during "blind" installations at heights-eliminating the need for strenuous prying and significantly improving the installation experience. |
| Anti-Slip Serrations and Rubber Lining | Contact surfaces gripping the cable feature either injection-molded rubber pads or precision anti-slip serrations. These elements not only enhance friction against smooth cable jackets but also provide shock absorption, protecting the cable from deformation caused by excessive compression. |

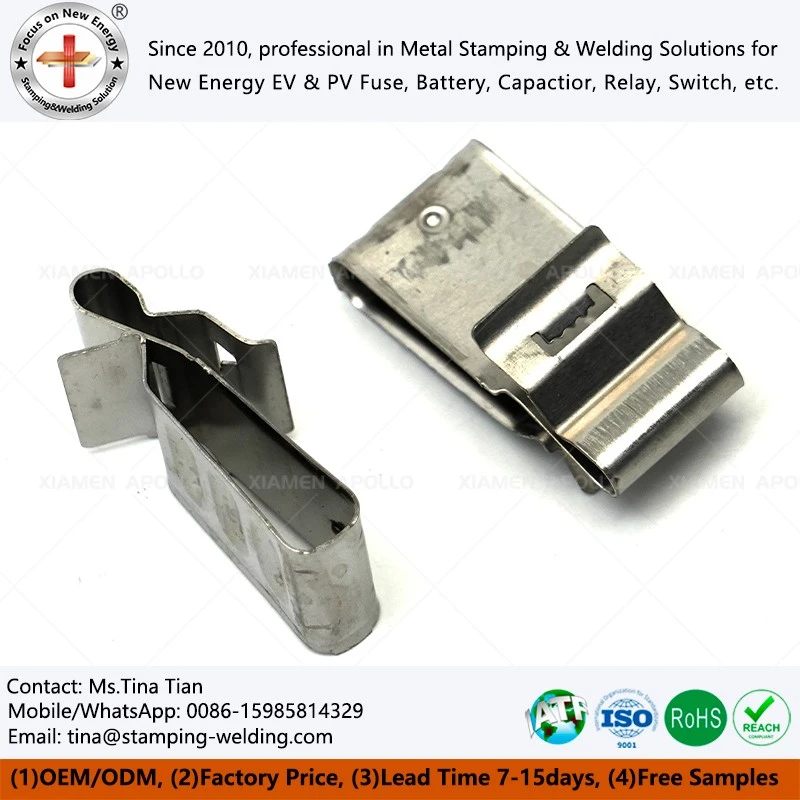

| Venting Channels and Stress-Relief Holes | Tiny process channels and stress-relief holes are incorporated into the sides or bottom of the molded parts. These features eliminate internal stress concentrations resulting from the molding process, optimize plastic wall thickness, prevent surface sink marks, and enhance the Stainless Steel Solar PV Cable Clips' overall structural integrity and finish quality. |
Manufacturing Advantages and Production Processes
Precision Forming
We employ CNC laser cutting and multi-axis bending technologies to achieve sub-millimeter precision. Following mold stamping, the hook profiles undergo fully automated deburring.
Surface Treatment
Processes such as electropolishing or passivation enhance surface finish and corrosion resistance, eliminating the peeling issues often associated with traditional spray coatings.
Quality Control System

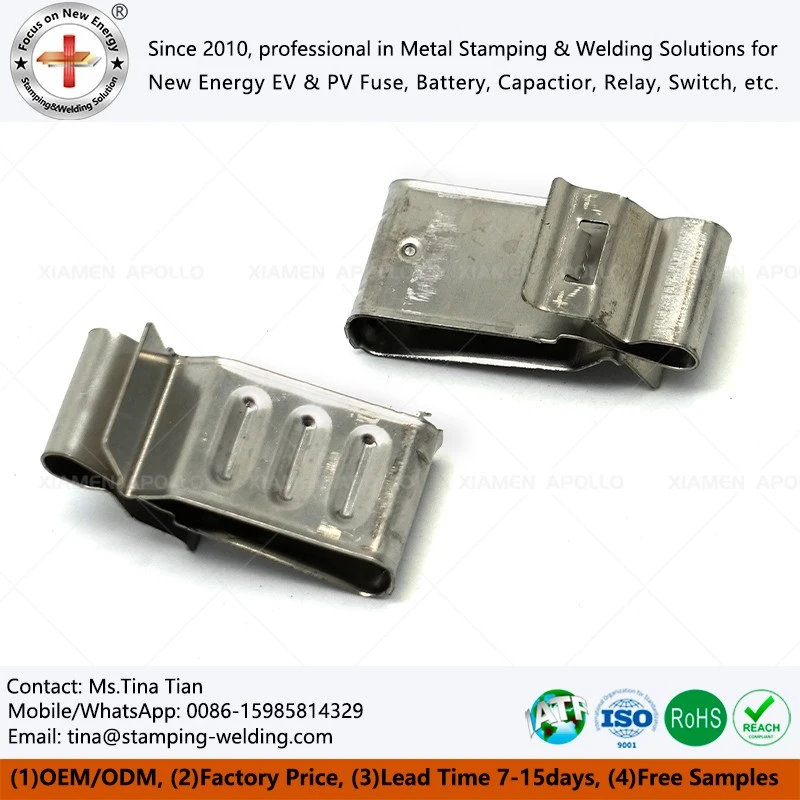

Every batch undergoes 100% tensile testing, salt spray testing (exceeding 1,000 hours of neutral salt spray exposure), vibration simulation, and fatigue testing. Our Cable Clamp Wire Clip for Solar Panel complies with international certification standards such as CE, TÜV, and UL, and we support third-party inspection reports.
contact us

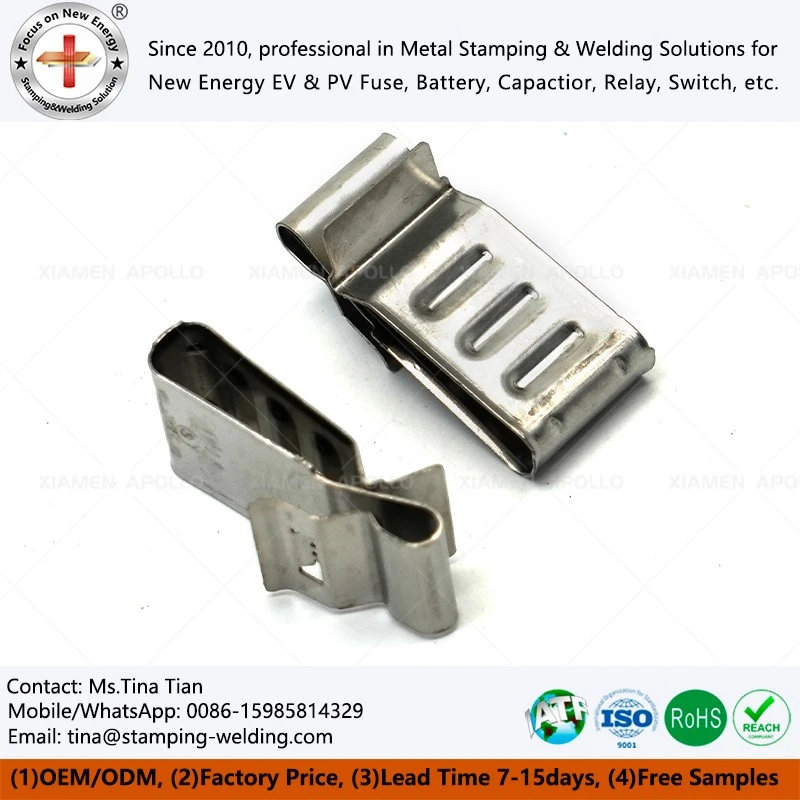

We offer not only standardized SUS Wire Clamp Solar Cable Clip but also customized cable management solutions-tailored to PV system structures, cable routing plans, and installation specifications-to ensure long-term operational stability and engineering consistency.
