Copper end plate: the core component that ensures the stable operation of fuses
Apr 09, 2026
Basic definition and structure of Copper end plate

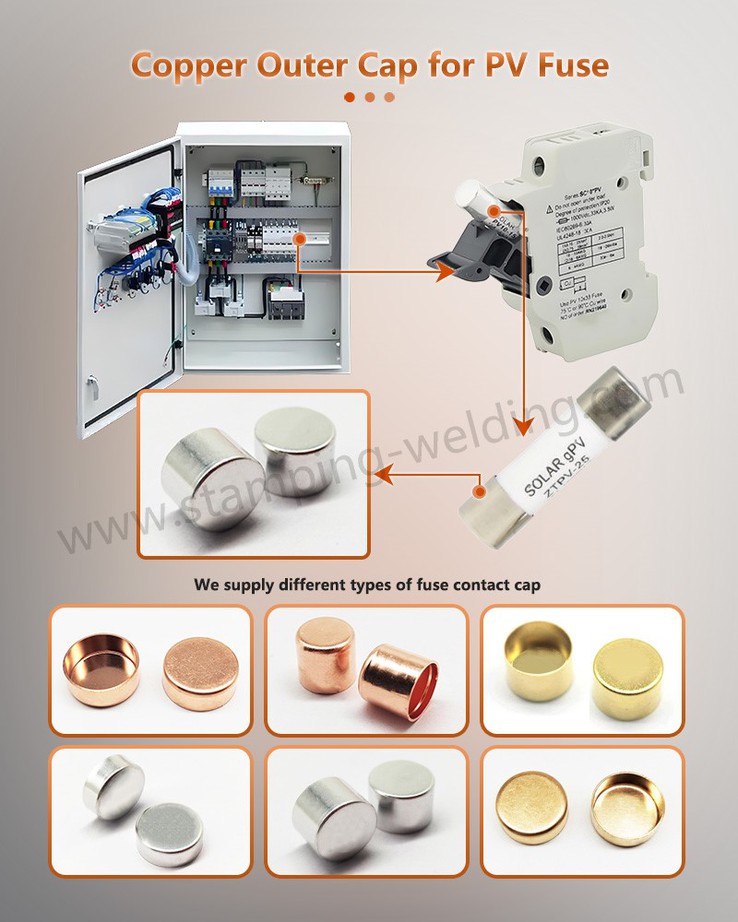

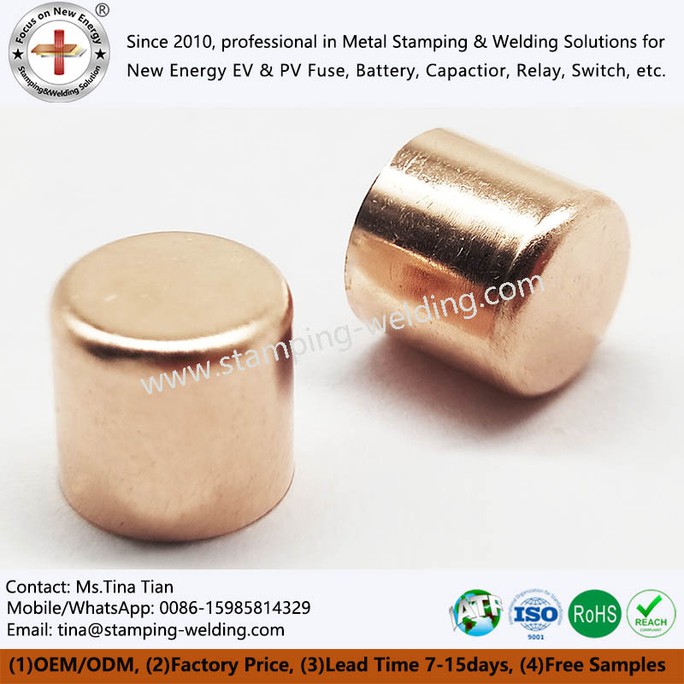

Copper end caps are copper or copper alloy cap shaped components that are fitted around both ends of a fuse, forming a complete fuse structure together with the insulation shell (ceramic tube, glass tube, etc.) and internal melt (copper wire, silver wire, alloy wire, etc.) of the fuse. It is usually tightly fitted at both ends of the insulation shell, with one end connected to the external circuit input terminal and the other end connected to the output terminal; Internally, it is fixed to both ends of the melt through processes such as spot welding and crimping, while externally, it is connected to the circuit through methods such as plugging, welding, etc.

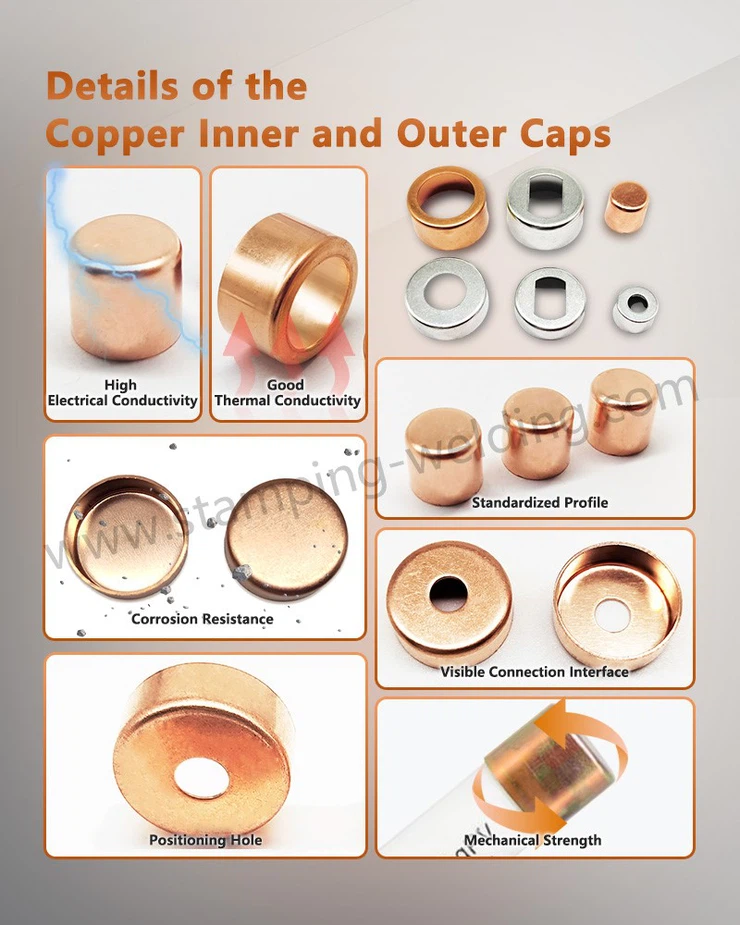

Custom copper caps are often made of high-purity copper (T2/T3) or copper alloys (brass H62, phosphor bronze QSn6.5-0.1, etc.), which have excellent conductivity, good ductility, and certain mechanical strength, providing guarantees for the realization of their various functions.
Efficient conductivity: avoiding premature failure of fuses
The electrical resistivity of copper material is extremely low (about 1.72 × 10 ⁻⁸Ω· m at 20 ℃), far superior to metals such as aluminum and iron. This enables Copper end plates to construct efficient conductive pathways, minimizing contact resistance and Joule heat loss when current passes through.
This feature can effectively avoid premature fuse failure caused by the heating of the End cap copper itself, such as false melting, ensuring stable operation of the fuse under normal working current and ensuring smooth circuit.
Fixed sealing: extending the service life of fuses
The mechanical fixation and sealing protection function of Copper metal end cap is an important support for ensuring the long-term stable operation of fuses. In terms of mechanical fixation, the insulation shell is tightly "locked" with the melt through interference fit or adhesive to prevent the melt from shifting or falling off during transportation and installation, ensuring the integrity of the fuse structure.
In terms of sealing protection, Outer end cap can effectively seal both ends of glass and ceramic shells, isolate external dust, moisture, corrosive gases and other impurities, prevent melt oxidation or moisture, and significantly extend the storage and service life of fuses.
Auxiliary protection: prevent secondary faults in the circuit
When the circuit is overloaded or short circuited, the melting of the melt will instantly generate a high-temperature arc. At this time, high-quality Copper pipe end caps need to play an auxiliary protective role. Copper material itself has a certain degree of high temperature resistance (copper melting point is about 1083 ℃) and arc erosion resistance, which can effectively resist the impact of high temperature arc, avoid arc breakdown of Fuse copper cap or melting of copper cap, thereby preventing secondary faults such as leakage and fire in the circuit, and further ensuring the safety of the circuit system.
