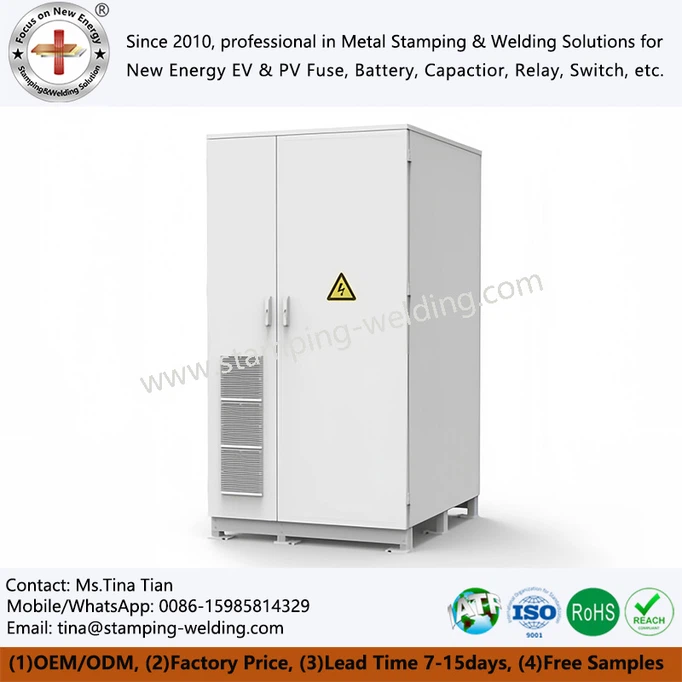

Explanation of industrial and commercial Energy storage system cabinet structure

The Pylontech us5000 cabinet is the core carrier of energy storage systems in industrial and commercial scenarios. Currently, products on the market are mainly divided into liquid cooled and air-cooled types according to cooling methods, and can be divided into cabinet and box types according to appearance. Although classified differently, the overall structure is similar, consisting of seven core parts: battery system, battery management system, energy storage inverter, energy management system, temperature control system, fire and safety system, as well as structural and auxiliary systems. The various systems work together to achieve the storage, conversion, management, and safety guarantee of electrical energy.

The core functions of the Energy storage system cabinet are jointly implemented by the battery system, Battery Management System (BMS), and Energy Storage Converter (PCS). The battery system is the core of energy storage, consisting of battery modules composed of battery cells in series and parallel, and battery racks used for fixed support. The mainstream adopts lithium iron phosphate batteries, which have high safety and long cycle life. The number of modules can be flexibly configured according to capacity requirements.

The BMS in the Solar battery storage cabinet is responsible for managing the entire lifecycle of the battery. It collects real-time parameters such as battery voltage, temperature, and current through monitoring modules, ensures cell consistency with the help of balance management modules, and prevents safety hazards such as overcharging and overdischarging through fault warning and protection modules. PCS undertakes the task of bidirectional conversion of electrical energy, achieving AC/DC power switching through AC/DC conversion modules, ensuring power quality through power regulation modules, and automatically switching between grid connected and off grid modes relying on grid connected switching modules to ensure power supply continuity.

The energy management system (EMS) and temperature control system are key to ensuring the efficient and stable operation of the Battery energy storage cabinet. EMS, as the "brain" of the system, formulates the optimal charging and discharging plan by combining peak and valley electricity prices, electricity load and other information through the strategy formulation module. With the help of the collaborative control module, it realizes linkage with BMS and PCS, and provides support for system optimization and fault diagnosis through the data management and analysis module. The core goal is to improve energy utilization efficiency and reduce electricity costs.

The temperature control system of Pylontech energy storage cabinet is responsible for maintaining the appropriate working temperature of the battery. The heat dissipation module dissipates the heat generated by battery charging and discharging through methods such as air cooling and liquid cooling. The heating module heats up the battery in a low-temperature environment, and the temperature monitoring module provides real-time feedback on temperature data to ensure that battery performance and lifespan are not affected by temperature.

The safety protection and structural assistance system is the guarantee for the long-term safe operation of Outdoor energy storage cabinets. The fire and safety system monitors safety hazards in real time through combustible gas detectors, smoke sensors, and other equipment. It is equipped with fire extinguishing devices such as heptafluoropropane and aerosols, combined with protective facilities such as explosion-proof doors and pressure relief ports, to minimize risks such as fires and battery thermal runaway.

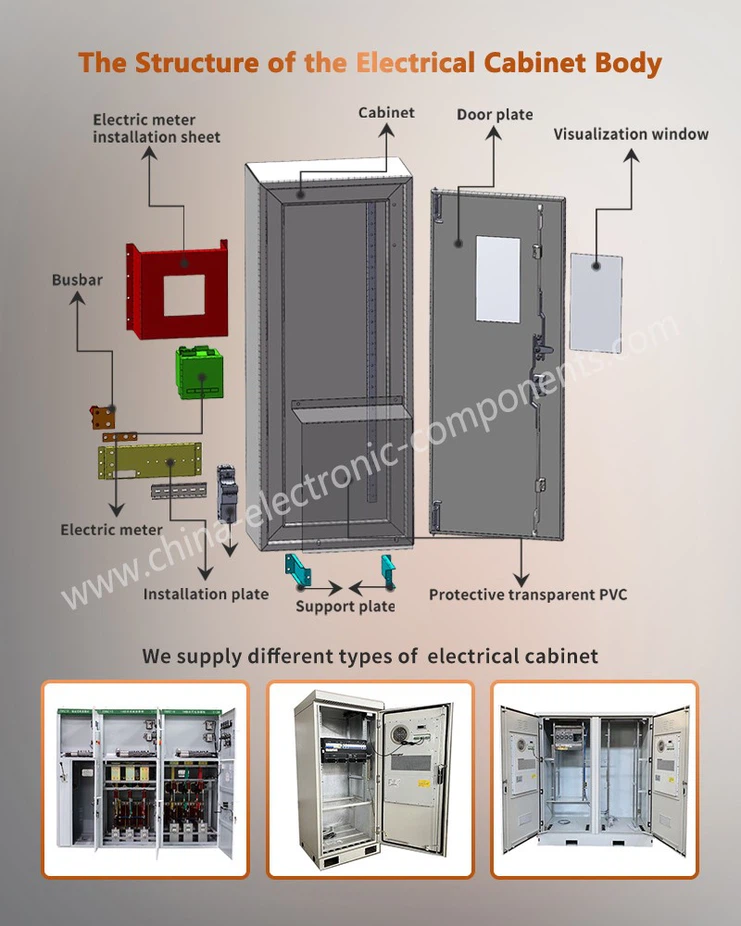

In the structure and auxiliary systems, the Liquid cooled energy storage cabinet is made of high-strength steel or aluminum alloy, providing physical support, insulation, dust and rain protection, etc; Distribution equipment includes high and low voltage distribution cabinets, combiner cabinets, etc., to achieve energy distribution and electrical protection; The monitoring and communication module supports remote monitoring, data transmission, and remote operation and maintenance, making it convenient for users to monitor the system's operating status in real time.
