One article explains: What exactly does an Electrical system cabinet do for wind, light, storage, charging, and hydrogen?
Apr 01, 2026

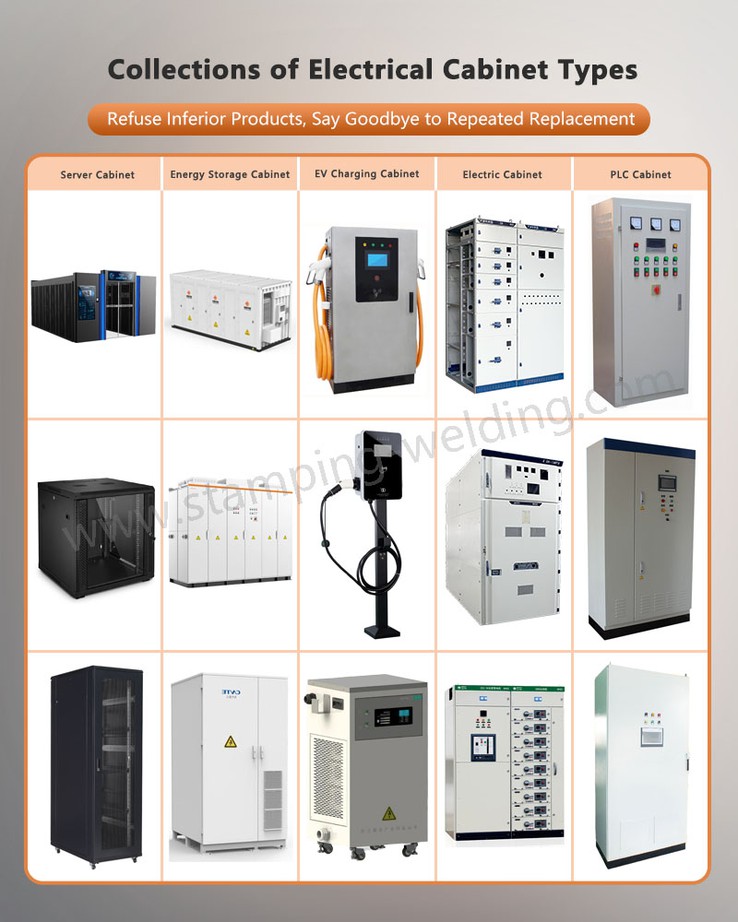

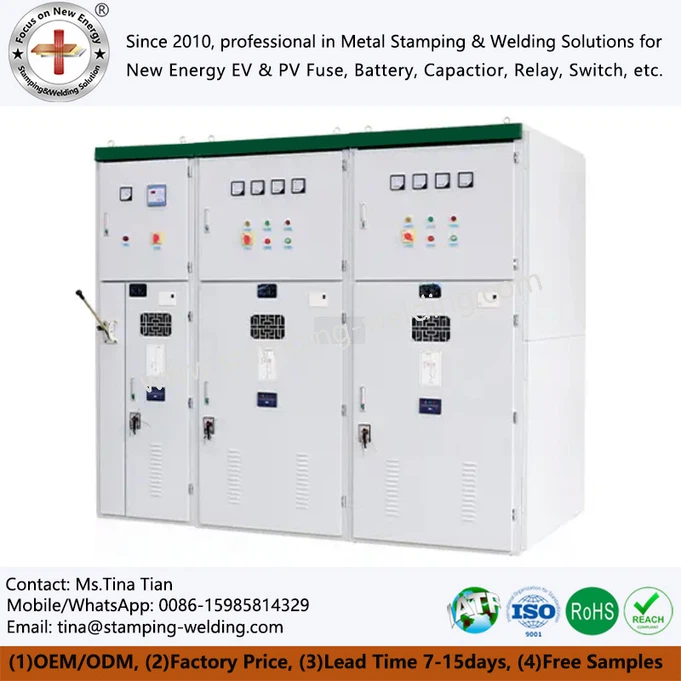

Wind power generation: collaborative control under complex operating conditions
The pitch cabinet is located at the hub and is responsible for adjusting the blade angle, allowing the blades to adjust their windward state according to changes in wind speed, achieving power control and emergency stop protection. The working environment of this Electrical system cabinet is harsh, and it continuously rotates with the wheel hub, requiring extremely high anti vibration and reliability of components. It must also be equipped with backup power sources such as supercapacitors or batteries to ensure smooth shutdown even in the event of a power outage in the grid.
The inverter cabinet is usually located at the bottom of the tower or in the engine room, responsible for the core task of converting electrical energy. The frequency and voltage fluctuations of the electrical energy generated by the wind turbine are large. The inverter converts it into AC power with stable frequency and qualified voltage through power electronic conversion, and sends it to the power grid. The input voltage level of an Outdoor electrical cabinet is usually 690V or higher, and the output side is connected to a step-up transformer. The core control relies on IGBT devices and high dynamic response algorithms to achieve high and low voltage ride through function during power grid faults.
Photovoltaic power station: from DC collection to grid connected conversion
The number of Electrical system cabinet equipment in photovoltaic systems is huge, mainly responsible for completing two major tasks: DC collection and inverter grid connection. The combiner box is installed between the photovoltaic array and the inverter, which collects the DC current output from multiple strings of photovoltaic modules and outputs it to reduce line losses and simplify wiring. The current mainstream system voltage level is DC 1500V. The high-end combiner box has intelligent monitoring function, which can detect the operating status of each component in real time, and has DC arc detection and protection capabilities to prevent fire risks.
Energy storage and hydrogen production: bidirectional energy management and high current conversion
The energy storage system achieves the temporal translation of electrical energy through electrical equipment, while the hydrogen production system converts electrical energy into hydrogen energy for storage. The Outdoor weatherproof enclosure cabinet box has bidirectional energy conversion capability, which can either rectify AC power from the grid into DC power to charge the battery, or invert DC power from the battery into AC power and feed it into the grid. The voltage range on the battery side is usually between DC 1000V and 1500V. With the development of network construction technology, Electrical cabinets and enclosures can not only follow the operation of the power grid, but also actively construct voltage and frequency to provide support during power grid disturbances.
Charging facilities and common design trends
The core equipment of high-power charging stations is not just charging station terminals, but a flexible distribution system composed of power cabinets. The Electrical cabinet outdoor integrates multiple power modules internally, which can dynamically allocate power according to the charging needs of different vehicle models. The output voltage range covers DC 200V to 1000V, and is compatible with 400V and 800V high voltage platforms. To address the heat dissipation challenges brought by high-power charging, liquid cooling technology has become mainstream. The cooling system covers both the power Exterior electrical cabinet and the charging gun line, ensuring continuous and stable operation of the system at power levels above 600kW.
