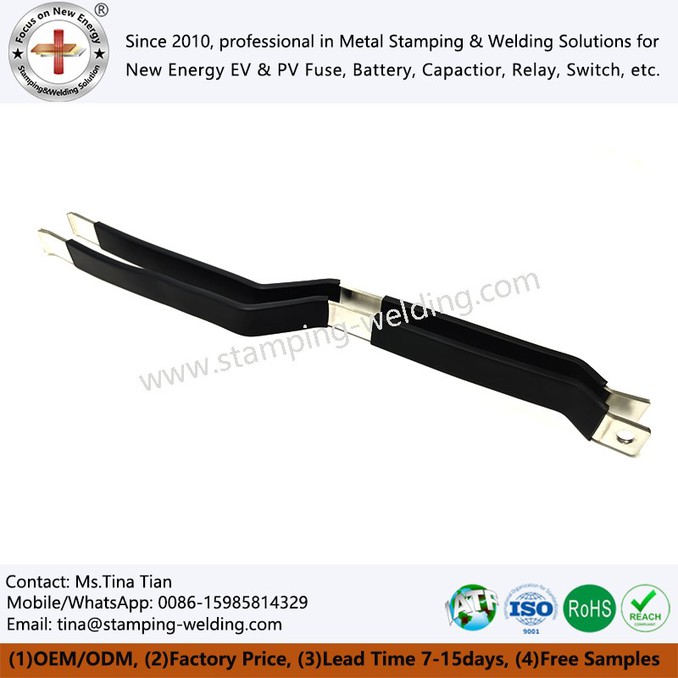

PE Heat Shrink Tube Insulated Busbar selection guide: adaptable to multiple scenarios, building a solid insulation protection barrier

In low-voltage power distribution, electronic equipment, automotive wiring harnesses, and other fields, insulation protection is a core element in ensuring the safe and stable operation of equipment. PE Heat Shrink Tube Insulated Busbar, as an efficient and convenient insulation solution, have their insulation performance and service life directly affected by their selection. The core of the PE heat-shrink tubing insulated bar is an environmentally friendly insulating sleeve made of a special polyolefin material. When heated (typically 70-90°C), it shrinks tightly around the conductor, possessing core characteristics such as insulation, flame retardancy, flexibility, environmental friendliness, temperature resistance (-40~105°C or higher), and aging resistance. It is widely used for insulation and maintenance of low-voltage indoor bar copper busbars, joints, and wire harnesses, effectively preventing short-circuit hazards caused by insulation loss, making it the preferred product for insulation protection in various industries.

The core premise of selection is to clearly define the product's core characteristics and match the appropriate model with your own usage scenario. PE heat shrink tubing insulated busbars have outstanding physical properties, are soft and elastic, have a high heat shrinkage rate, and can tightly fit irregularly shaped connectors and conductors, achieving tight wrapping without complicated construction. In terms of environmental characteristics, they mostly use halogen-free, low-smoke, and non-toxic materials, meeting current green environmental protection standards and suitable for fields with high environmental requirements such as electronics, home appliances, and new energy. Functionally, it not only provides reliable insulation protection but also achieves multiple functions such as corrosion prevention, moisture prevention, dust prevention, marking, and mechanical protection, providing a one-stop solution for various conductor protection needs. This is the core advantage that allows Heat Shrink Tubing Busbars to be widely used. Common aliases include polyolefin heat shrink tubing, EVA heat shrink sleeves, and PE heat shrink protective sleeves. Related products include double-walled adhesive-lined heat shrink tubing (with hot melt adhesive on the inner wall). When selecting, you can flexibly distinguish them according to protection requirements.

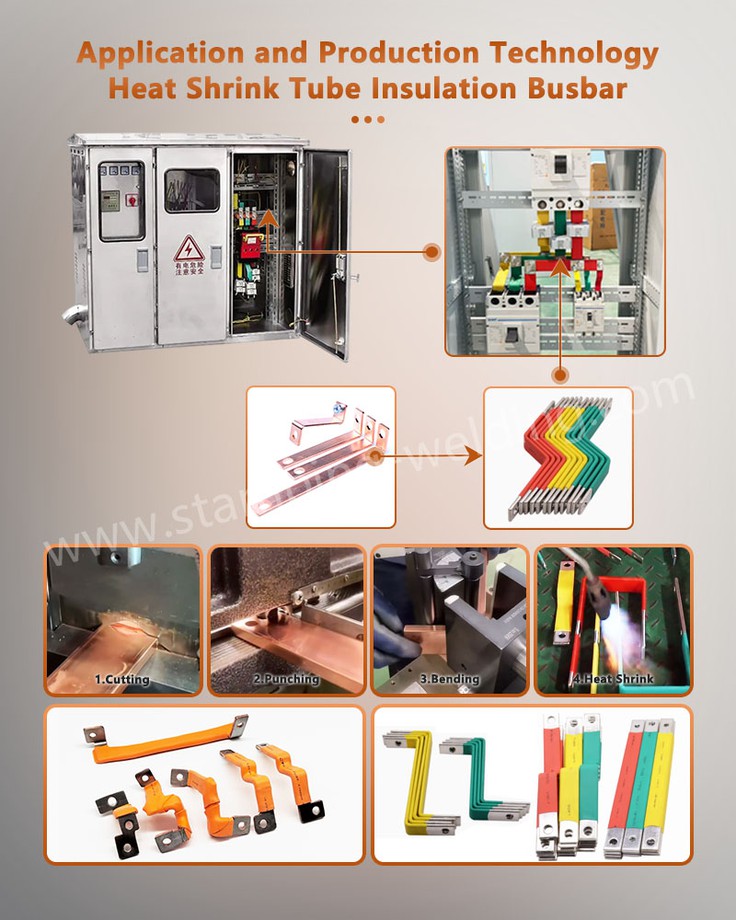

Scenario adaptation is a crucial step in product selection. Different application scenarios have varying performance and specification requirements for PE heat shrink tubing insulated bars, necessitating precise matching to ensure effective protection. In power systems, it is primarily used for insulation protection of copper and busbars in low-voltage distribution cabinets. The corresponding Insulated Copper Busbar with Heat Shrink Tube effectively prevents aging short circuits caused by connector overheating. When selecting this model, focus should be placed on temperature resistance and insulation strength to ensure compatibility with the high-temperature and high-pressure environment within the distribution cabinet. In the field of wire harness processing, for insulation sealing and mechanical support at connections in electronic, home appliance, and automotive wiring harnesses, models with high flexibility and good shrinkage fit are required to adapt to complex wiring harness routing and irregular joints. In cable connection scenarios, when used for repairing cable sheaths or waterproofing and insulating joints, double-walled adhesive-impregnated heat shrink tubing is recommended, utilizing its inner hot melt adhesive for better sealing and moisture protection. In identification and marking scenarios, different colors of PE heat shrink tubing can be used to classify and mark phase and neutral wires, improving the convenience of line maintenance.

Besides scenario suitability, product type differentiation is also crucial for selection. Based on actual needs, they can be divided into single-wall and double-wall types. Single-wall PE heat shrink tubing only provides basic insulation, has a simple structure, and moderate cost, making it suitable for general insulation scenarios with low sealing and moisture-proof requirements, such as insulation protection for conventional bar copper busbars. Double-wall PE heat shrink tubing has a built-in hot melt adhesive in the inner layer. After heating and shrinking, the hot melt adhesive melts and fills the gaps, providing better sealing and moisture-proof performance. It is suitable for complex environments such as humid and dusty conditions, such as outdoor cable joints and insulation sealing around EV battery connectors, effectively improving the reliability of protection. Furthermore, when selecting, it is also advisable to compare relevant alternatives or related products, such as Bar With PVC Insulation and PVC Busbar Heat Shrink Sleeves, to choose the most suitable insulation solution based on your budget, the temperature resistance and corrosion resistance requirements of the operating environment.

As industries increasingly demand higher levels of insulation protection, the selection of PE Heat Shrink Tube Insulated Busbar is becoming more refined and personalized. Customized products such as the Customized Bar Insulating Tube can better adapt to the specific specifications and application scenarios. During the selection process, three core factors must be comprehensively considered: product characteristics, scenario requirements, and product type, to avoid insulation failure and equipment malfunctions due to improper selection. In the future, with the iterative upgrades of polyolefin material technology, the temperature resistance, aging resistance, and sealing performance of PE heat shrink tubing insulated busbars will be further improved, and their selection range will continue to expand, building a solid insulation protection barrier for various industries and contributing to the safe and stable operation of equipment.

If you have any questions or customization needs during the selection process of PE Heat Shrink Tube Insulated Busbar, please feel free to contact us for professional selection guidance and adaptation solutions.
