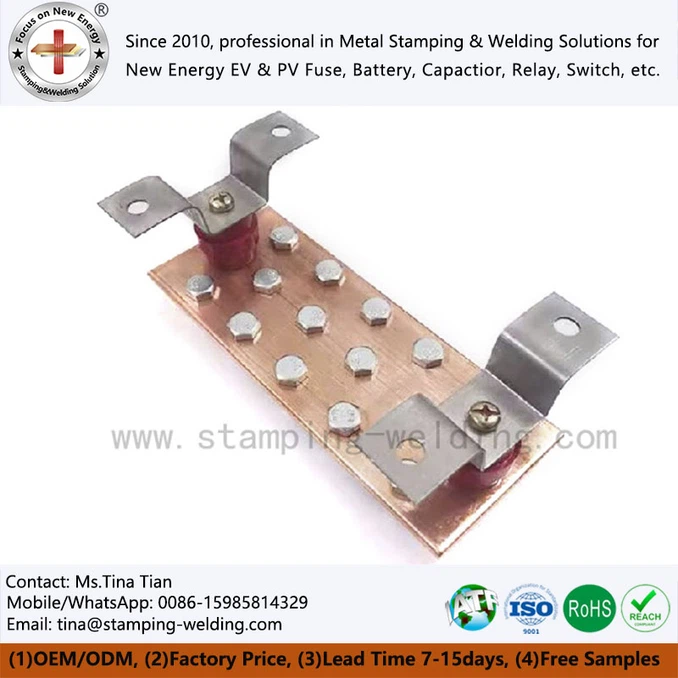

Popular knowledge about the Vertical Copper Bonding Busbar industry

In the field of electrical engineering, the grounding system is a crucial component to ensure the safety of equipment and people. Among them, the grounding conductor is the main channel connecting electrical devices and the earth, and the selection of its materials and specifications is directly related to the quality of the grounding effect. Copper busbars have become a commonly used conductor material in grounding systems because of their excellent conductivity and corrosion resistance. The model designation "TMY" specifically refers to a hard, rectangular cross-section copper busbar.

























































Excellent electrical conductivity: The electrical conductivity of red copper is second only to silver and ranks among the best among all commonly used metal materials. This means that under the same cross-sectional area and length, the resistance of the TMY copper row is smaller, and it can more efficiently conduct fault current or lightning current into the earth, reduce the ground resistance, and improve the leakage capacity. Good corrosion resistance: Red copper can form a dense oxide film in the air. This oxide film can effectively prevent the internal metal from being corroded further, allowing it to have a long service life in a variety of soil and atmospheric environments. This is critical for earth bodies that have been buried underground or exposed to the air for long periods of time.

Higher mechanical strength: Hard state processing improves the tensile strength and hardness of the copper grounding bus bar, making it less prone to bending and deformation during installation and laying. Grounding Copper Busbar can withstand certain mechanical stress and ensure the stability of the physical structure of the grounding loop. Reliable connection performance: The copper material has moderate softness (even in the hard state). When bolted connection or exothermic welding is used, a tight and reliable electrical connection can be achieved, and the contact resistance is small and stable.















































































In order to ensure the long-term effective operation of the TMY grounded copper row, the following aspects should be paid attention to during construction and application: the laying should be as straight as possible, the burial depth should be deeper than the local frozen soil in cold areas, and the backfill should remove stones and compact it in layers; in terms of anti-corrosion treatment, the surface tin plating process can be used in severely saline-alkali lands or chemical plant areas, that is, using tin plated copper ground bar to further improve corrosion resistance; avoid direct contact with steel components to prevent electrochemical corrosion caused by potential differences. Copper-steel transition joints or insulation isolation measures should be used when necessary; establish a regular inspection system, focusing on detecting the ground resistance value, connection point status and corrosion or mechanical damage of exposed parts; all construction and acceptance must comply with current national standards for electrical installation projects. It should be particularly emphasized that the Copper ground Bus Bar plays a key current discharge function in the entire ground loop, and its material purity and processing accuracy directly affect system reliability.



























































As a grounding conductor material with reliable performance and mature technology, grounding copper bar plays a key role in grounding systems in many fields such as power, construction, communications, industry, etc. The reasonable design of Grounding Bar Holes can further improve its installation convenience and connection reliability. Correct understanding of its characteristics, reasonable selection according to local soil, climate and other environmental conditions, and installation and maintenance in strict accordance with specifications are the fundamentals for giving full play to its effectiveness and ensuring long-term safe and stable operation of the grounding system. For relevant practitioners, mastering this basic knowledge is the basis for the design, construction and maintenance of grounding systems.





As a manufacturing enterprise specializing in the field of Vertical Copper Bonding Busbar, its products are widely used in power distribution, communication cabinets, new energy, industrial automation and other fields. Welcome to inquire about specific specifications and technical support.
