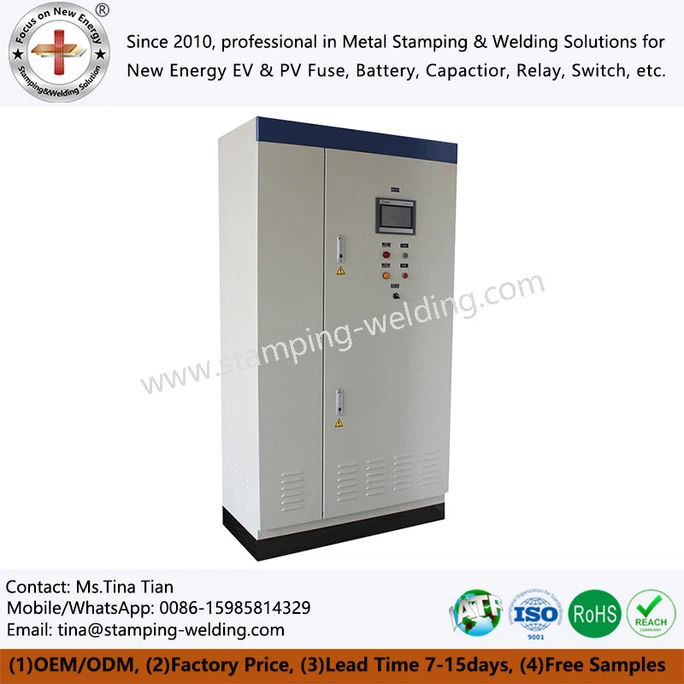

Analysis of 5 common practical applications and core components of Industrial PLC cabinet

With the continuous development of industrial automation technology, the application scope of PLC cabinet components continues to expand, and has widely penetrated into multiple industries such as steel, petroleum, chemical, power, building materials, machinery manufacturing, automotive, textile, transportation, cultural and entertainment, becoming the core equipment of industrial automation control.

Application cabinet has complete electrical protection functions such as overload, short circuit, and phase loss protection. It has a compact structure, stable operation, and complete functions. It can be flexibly combined according to the actual control scale. It can achieve independent automatic control of a single cabinet or form a distributed control system through industrial Ethernet or industrial field bus, which is suitable for various large, medium, and small industrial automation control occasions, providing support for improving production efficiency and optimizing processes in various industries.

The application scenarios of PLC panel control logic program stainless steel automatic cabinet revolve around industrial control requirements, and the core can be divided into five categories, covering the entire scene from single device control to complex system linkage. Switch logic control is the most basic and widely used application, which can achieve logic control and sequential control, and is suitable for single equipment or multi machine group control scenarios such as injection molding machines, printing machines, combination machine tools, packaging production lines, etc.

Industrial process control, through the combination of A/D and D/A conversion modules, processes analog signals and completes closed-loop control, which is applied in high-precision applications such as metallurgy, chemical engineering, boiler control, etc; Motion control utilizes specialized modules to achieve precise control of circular or linear motion, suitable for equipment such as machinery, machine tools, and industrial robots; The data processing of G8 switchgear PLC automatic control cabinet panels can complete various mathematical operations and data collection and analysis, and is applied to large-scale control systems in industries such as papermaking and metallurgy; Communication and networking achieve collaborative linkage between PLCs and other intelligent devices through standard communication interfaces, laying the foundation for the intelligent upgrade of factories.

To understand the working principle of PLC system cabinet for sewage, it is necessary to clarify its core components and their respective functions, and ensure that each component works together to ensure the smooth and efficient operation of the equipment. The CPU (Central Processing Unit), as the core of the PLC, is responsible for processing instructions, receiving input signals, and making control decisions. It is the "brain" of the entire control system; The input module receives signals from external devices such as sensors, switches, buttons, etc., and provides feedback on the on-site operating status; The output module transmits CPU instructions to executing components such as motors, lights, valves, etc., to perform specific control operations.

The power supply of the Electric cabinets PLC panel cabinet provides stable power for the entire PLC system, and can convert AC or DC inputs into the power required for the safe operation of various components; Communication interfaces (such as Ethernet, Modbus, RS-232) enable data sharing and communication between PLCs and computers, other PLCs, or monitoring devices; Memory is used to store control programs, device settings, and related data; Programming interfaces are used to write and upload control programs, usually implemented through specialized software; The installation bracket and shell are used to place all components, providing protection and organization, and facilitating later maintenance and upgrades.

PLC panel cabinet has become an indispensable core equipment for modern industrial automation due to its flexible control functions, stable operating performance, and diverse practical application scenarios. Its five common applications cover multiple aspects of industrial production, from single device control to complex system linkage, from logical control to data processing and networked communication, fully meeting the automation needs of industrial production. The collaborative work of core components is the foundation for PLC control cabinets to achieve precise control and stable operation. Mastering the functions and working logic of each component can better leverage the application value of Standard PLC cabinets, help various industries achieve production automation and intelligent upgrading, and improve production efficiency and control accuracy.

If you have specific needs in Industrial PLC cabinet selection, customized design, or project solution docking, please feel free to contact us at any time. We can provide a stable, reliable, and adaptable overall solution for PLC control cabinets based on your actual working conditions and control requirements, to assist in the efficient implementation of projects.
