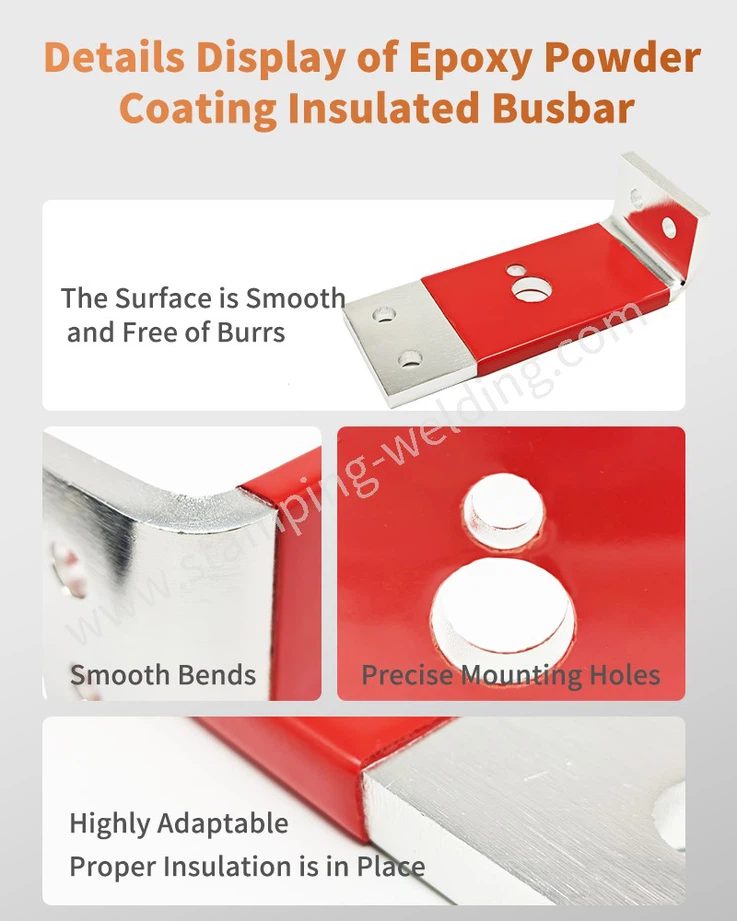

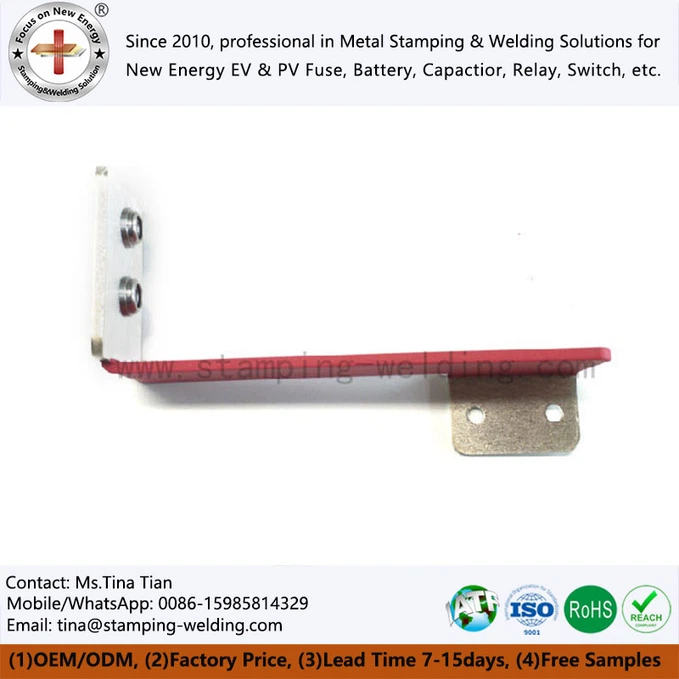

Analysis of Powder Coated Busbar technology

The powder electrostatic spraying line is an automated metal surface coating production line based on the principle of electrostatic adsorption. It is mainly used for surface treatment of industrial products such as aluminum profiles, guardrail panels, control cabinets, air conditioning casings, fan grilles, and satellite antennas. This technology uses high-voltage static electricity to evenly adsorb plastic powder to the surface of the workpiece, and then bakes it at high temperature to form a dense protective layer. It is an important process route to achieve efficient and environmentally friendly coating. In the field of modern electrical manufacturing, the surface protection of Epoxy Powder Coated Busbars also relies on this type of proven powder electrostatic spraying system to ensure a strong bond between the insulation layer and the metal matrix.



























































Its working principle is based on a high-voltage electrostatic corona electric field. The high voltage and low current generated by the electrostatic generating device cause the electrode needle at the front of the spray gun to discharge in the air. When the powder is ejected through the nozzle, the powder particles are charged and reach the grounded workpiece surface through the dual effects of electrostatic adsorption and air flow transportation. The spray gun can generate a voltage of up to 100kV, which is enough to overcome the Faraday cage effect in deep cavities and ensure good coverage and uniform film thickness on all surfaces of the workpiece. This electric field control technology is particularly critical for the insulation treatment of Powder Coated copper bus bars, ensuring that all edges and grooves of complex cross-section copper bars are fully coated with resin powder.



The core process of this production line is divided into four stages: the pre-treatment stage removes metal surface impurities through oil removal, rust removal, and phosphating to improve coating adhesion; the electrostatic spraying stage uses high-voltage electrostatic equipment to charge the plastic powder and evenly adsorbs it on the surface of the workpiece under the action of an electric field; the high-temperature solidification stage adjusts the temperature according to the type of plastic powder (usually 160-210°C) to melt the powder to form a dense protective layer; the cooling stage controls the cooling rate to avoid internal stress in the coating and ensure the quality of the finished product.



























































The complete process flow usually contains four stages. The first is pre-treatment, including oil removal, rust removal, phosphating and other processes, which are designed to remove contaminants on the surface of the substrate and form a conversion film, providing an ideal adhesion basis for subsequent coatings. The second step is electrostatic spraying. After the plastic powder is charged through high-voltage electrostatic equipment, it is evenly adsorbed on the surface of the workpiece under the action of the electric field. The third stage is high-temperature curing. According to the plastic powder composition and thickness requirements, the curing temperature is usually set between 160°C and 210°C, so that the powder particles melt and cross-linking reactions occur. Finally, it is cooled out of the furnace. After the temperature of the workpiece drops to room temperature, it can enter the quality inspection process. The production of Epoxy Spray Copper Bus Bar also follows this standardized process. By precisely controlling the curing temperature and time, a dense insulation layer with a thickness of 50 to 80 microns is obtained.



Technological development focuses on optimizing spraying effects and upgrading equipment maintenance. To address the problem of spray uniformity, an improved spraying device can reduce the adsorption and agglomeration of powder on the barrel wall; in response to equipment operation and maintenance needs, self-cleaning electrostatic powder spraying equipment uses the nozzle storage function to avoid entanglement and improve production line continuity. These technological breakthroughs further consolidate the dominant position of powder electrostatic spraying in the field of surface treatment.















































































Powder recovery devices usually use a combined structure such as a cyclone dust collector and a filter cartridge to achieve a powder recovery rate of more than 85%. The powder spraying area generally includes the powder spraying room, powder supply and recovery devices, areas near openings, powder storage areas, and areas where explosive dust may exist. With the development of technology, high-performance busbar products such as Nickel-Plated Insulated Bus Bar and Tin-Plated Insulated Bus Bar have put forward higher requirements for the coating process. Therefore, the powder electrostatic spraying line is constantly optimized in aspects such as voltage control, powder atomization and recycling efficiency to meet the strict standards for insulating coatings in new energy vehicles, power and electrical industries and other industries. At the same time, the application of Insulated Copper Bus Bar and Insulating Coatings Busbar promotes the continuous progress of spraying equipment in terms of uniform film formation and deep cavity spraying capabilities.



The powder supply device is one of the core components of the system. The powder is in a fluidized state under the action of compressed air, and is then carried by the high-speed airflow through siphon action to form a powder-gas mixture, which reaches the spray gun through the Venturi powder pump and powder delivery pipe. The device supports pipeline transportation up to 50 feet long and can accurately control the powder output and atomization state to meet the production needs of different coating film thicknesses. The advanced powder supply system ensures that Busbar Coating Powders maintain stable fluidization characteristics and uniform particle size distribution during long-distance transportation, avoiding coating defects caused by powder agglomeration or uneven transportation.















































































Our company has long been focused on the R&D and manufacturing of high-precision Powder Coated Busbar equipment, and provides complete coating solutions in response to the strict requirements of the busbar industry on the uniformity, adhesion and voltage resistance of insulating coatings. Welcome to contact us for technical support or equipment solutions.
