Analysis of the selection of surface treatment methods for Copper BusBar

In electrical equipment and power transmission, the surface treatment of Copper BusBar is crucial for ensuring their lifespan, conductivity, and connection reliability. Its core functions include oxidation prevention, corrosion resistance, and optimized contact resistance. Industry experts point out that common surface treatments for copper bars include silver plating, tin plating, and nickel plating. The key to selection lies in balancing conductivity, corrosion resistance, and cost, requiring precise selection based on the specific application scenario. This is vital to the effectiveness of the electrical bar.

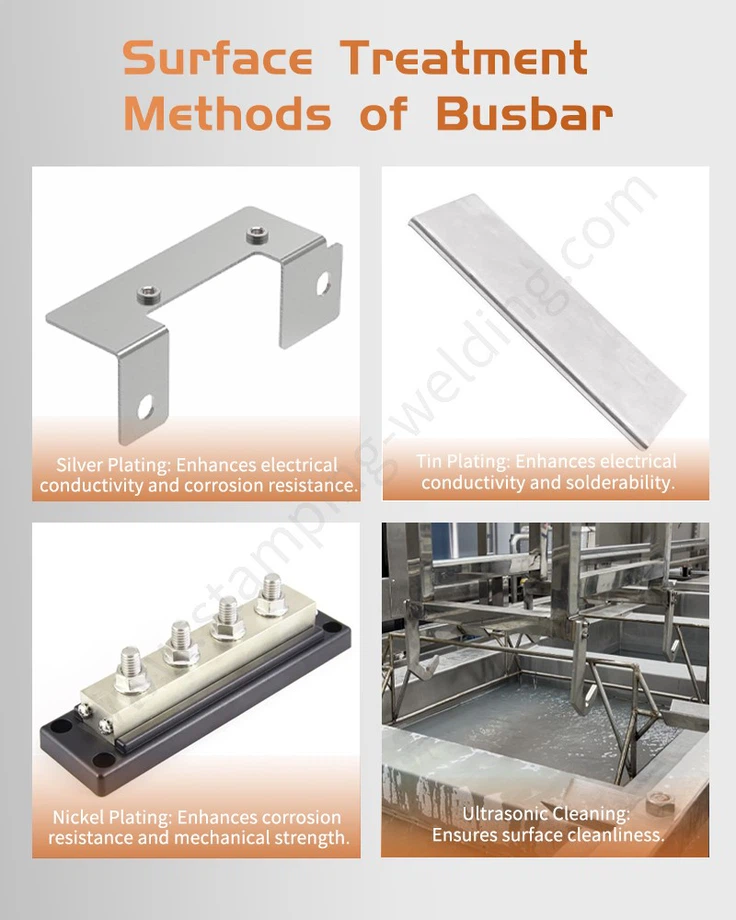

The three surface treatment methods each have their own characteristics, are suitable for different scenarios, and form a clear differentiated positioning, as detailed below:

• Silver plating: Its core advantage is optimal conductivity, effectively reducing contact resistance. It's suitable for high-frequency electronic components, high-end electrical equipment, and power connections where extremely high conductivity is required. However, it suffers from drawbacks such as easy oxidation and discoloration (sulfidation) and high cost, making it primarily used in high-end applications with extreme performance requirements for busbar.
• Tin plating: With good solderability, moderate oxidation resistance, and an affordable price, it's the most widely used method. It's commonly used in general industrial copper busbars, electrical connection terminals, and battery energy storage systems. Its only drawback is slightly lower conductivity compared to silver plating and lower hardness.
• Nickel plating: Primarily characterized by extremely high corrosion and wear resistance, with outstanding hardness. It's suitable for harsh environments such as chemical plants, humid environments, and high-vibration conditions, as well as connector applications requiring wear resistance. However, its conductivity is lower than tin and silver plating, and its resistivity is relatively high.

Clearly defining the application scenario is the core basis for selecting the surface treatment method for bars. The industry has summarized clear selection guidelines to help companies make accurate decisions. If optimal electrical performance is prioritized and cost is not a concern, silver plating is the preferred choice. Its extremely low contact resistance effectively reduces equipment operating temperature rise, making it suitable for components with stringent conductivity requirements, such as High Voltage Busbars. If universal compatibility and high cost-effectiveness are sought, tin plating is the optimal choice, balancing corrosion resistance with cost control, and is easy to solder, making it suitable for most conventional industrial scenarios. If the application environment is highly corrosive, humid, or has high requirements for component wear resistance, nickel plating is most suitable. Its excellent hardness and chemical stability can significantly improve the service life of copper bars, making it suitable for complex Electrical Busbar applications.

The choice of surface treatment method for bars should not blindly pursue high-end options; the key is to achieve a balance between performance and cost by meeting the specific needs of each application scenario. Currently, as electrical equipment develops towards diversification and high-end features, the surface treatment technology for core components such as Power Busbars is also continuously being optimized. Upgrades to silver plating, tin plating, and nickel plating processes have further broadened the application scenarios for Copper BusBar. In the future, the industry will further optimize surface treatment processes based on the specific needs of different scenarios, contributing to the overall performance improvement of electrical equipment and supporting high-quality development in fields such as power transmission and electrical connections.

For guidance on selection, process optimization, and technical support regarding silver, tin, and nickel plating surface treatments for Copper BusBar, please feel free to contact us. We will provide professional solutions to help companies achieve the optimal balance between busbar performance and cost.
