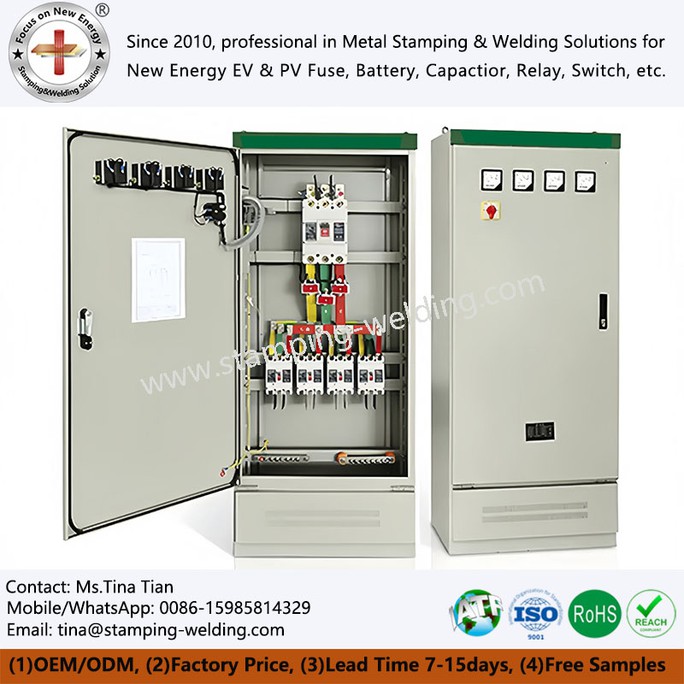

Detailed explanation of basic industry knowledge of Power distribution cabinet

Access control cabinets belong to the final core equipment of the power distribution system and are also a general term for motor control centers. They are mainly divided into three categories: Fiber optic distribution cabinets (boxes), lighting distribution cabinets (boxes), and metering cabinets (boxes).

The core function of this type of equipment is to receive the electrical energy from the higher-level distribution equipment, distribute it reasonably to the nearest power load, and provide circuit protection, operation monitoring, and on-off control for the load throughout the process. It is an indispensable device at the end of power transmission.

In practical application scenarios, the Climate controlled cabinet and the motor control center have clear division of labor. The former is suitable for situations where the load distribution is relatively scattered and there are few power circuits, while the latter is specifically designed for use in scenarios where the load is concentrated and there are many circuits. Both play their respective roles and improve the end distribution system.

The distribution equipment of the Climate controlled network cabinet is divided into three levels according to hierarchy and function, with clear division of labor and each level performing its own duties, forming a complete distribution network. The first level distribution equipment is collectively referred to as the power distribution center, which is centrally installed in the enterprise substation and deployed adjacent to the step-down transformer. It has strict requirements for electrical parameters and has a large output circuit capacity. It is mainly responsible for uniformly distributing electrical energy to lower level distribution equipment in different areas.

Secondary distribution equipment is a collective term for the power Electrical control cabinet and motor control center. It continues the core function of terminal distribution, completes the distribution of electrical energy and safety protection for nearby loads, and is a key link in connecting primary distribution and terminal power consumption.

The final power distribution equipment, namely the lighting power distribution box, is a decentralized small capacity device that is far away from the core power supply center and directly connects to various terminal electrical facilities to meet the basic power distribution needs.

The installation of Industrial control cabinets must strictly follow safety regulations to ensure safe use and stable operation throughout the process. The cabinets must be made of non combustible materials to eliminate fire safety hazards. The installation type should be matched with the working environment. For ordinary offices and production sites with low risk of electric shock, open type distribution boards can be selected.

Closed cabinets need to be installed in processing workshops, boiler rooms, casting and forging workshops, and other places with high risk of electric shock and poor environmental conditions; In hazardous working environments with conductive dust and flammable and explosive gases, enclosed or explosion-proof cabinets must be selected.

At the same time, the internal electrical components, instruments, and circuits of the Motor control cabinet should be arranged neatly and installed firmly. When installed on the ground, the bottom of the cabinet should be 5-10mm higher than the ground, and the center height of the operating handle should be controlled at 1.2-1.5m. There should be no obstacles within 0.8-1.2m in front of the cabinet, and the protective wire connection should be firm and reliable, without exposed bare live parts. External electrical components should be protected by reliable screens, and the overall operation should be convenient, safe, and compliant.

As a key equipment at the end of the power distribution system, Cable distribution cabinets have clear classification and hierarchy, from the three basic categories of power, lighting, and metering, to the standardized division of labor for three-level distribution, and to the characteristic differences of various low-voltage switchgear, fully adapting to different load scenarios and usage needs.

The standardized installation requirements and environmental adaptation principles are the core prerequisites for ensuring the safe operation and efficient distribution of Fiber distribution cabinets. Only by accurately grasping the four core points of classification, grading, selection, and installation can the distribution cabinet meet the actual electricity demand, achieve stable, safe, and efficient end distribution, and build a solid foundation for power security for various types of electric fields.


If you have any related needs in the selection, customization, or installation specification consultation of Power distribution cabinets, please feel free to contact us at any time for communication. We can provide professional distribution solution suggestions based on your actual usage scenario, helping you efficiently connect with suitable distribution products.
