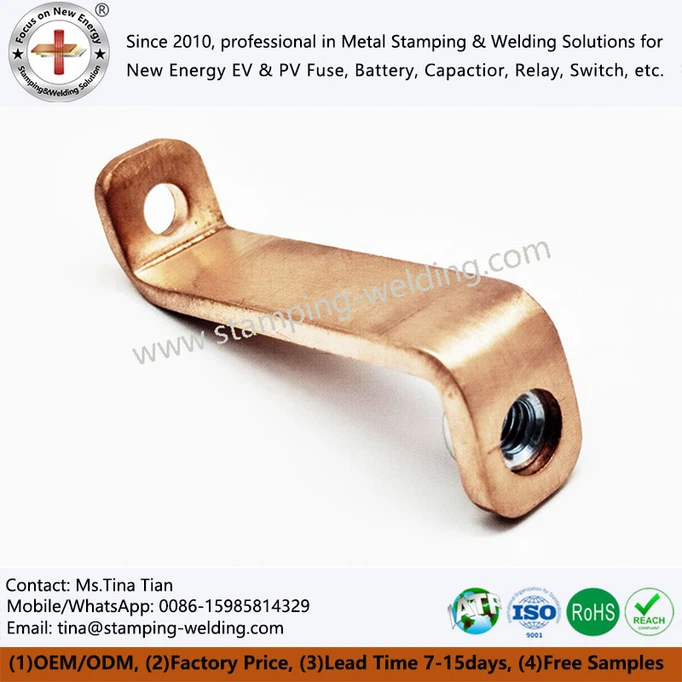

Electrical copper bus bar and insulated copper busbar: characteristics, price, and selection guide

An Electrical bus bar is an essential core conductive component in the industrial field, widely used in various industries such as power transmission and distribution, new energy, and electronic communication. Its product quality and performance directly affect the operational efficiency, safety, and overall cost of the project.

Copper busbar stands out among many conductive materials, thanks to its outstanding comprehensive advantages: excellent conductivity, second only to silver, can efficiently transmit current, reduce energy loss, and improve the operational efficiency of power systems; High mechanical strength, good ductility, able to withstand large bending and tensile forces, not easily deformed, suitable for complex installation environments; Strong corrosion resistance, Ground bus bar can be used for a long time in certain harsh environments, reducing maintenance and replacement costs. Among them, the insulated copper busbar has the characteristics of good moisture resistance, excellent insulation performance, and wide temperature adaptability, further improving the safety and reliability of use under complex working conditions.

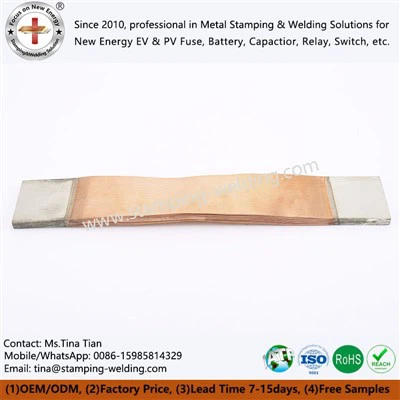

Busbar electrical has a wide variety of types, with significant differences in their characteristics, and can be adapted to different usage scenarios. Hard copper bars have high hardness and mechanical strength, and can withstand large external forces without deformation. They are suitable for fixed installation and stable stress scenarios; Woven soft connections have good tensile and wear resistance, are environmentally friendly and sustainable, have a wide range of applications, and are suitable for installation environments that require frequent bending and stretching.

Laminated busbars have the advantages of low inductance and high current carrying capacity, and can carry more power under the same cross-sectional area, making them the preferred choice for high current scenarios; The insulated Power busbar is processed through processes such as dipping, powder dipping, and spraying. While retaining the original conductivity of the copper busbar, it significantly enhances insulation and improves moisture resistance and protective effect, making it suitable for scenarios with high insulation requirements.

The price of Copper solid bus bar is influenced by multiple factors and there is no fixed standard. Among them, the fluctuation of copper market prices is the core factor affecting prices, directly determining the basic cost of copper busbars.

Secondly, product specifications (such as cross-sectional dimensions and length), customization requirements (such as special dimensions and processes), and process complexity all directly affect production difficulty and cost. The higher the degree of customization and the more complex the process, the higher the price.

In addition, due to the addition of insulation processing technology, the production cost of insulated Bus bar electric is higher than that of ordinary copper busbar, and the price is slightly higher. However, combined with its improved safety and reliability, the overall cost-effectiveness is still outstanding, suitable for scenarios with clear insulation requirements.

Choosing a High voltage busbar requires consideration of practical needs and multiple factors to avoid blind selection. Firstly, it is necessary to determine the appropriate type and specifications of copper busbar based on the usage scenario and actual needs. For example, in high current scenarios, stacked busbars are preferred, while in frequent bending scenarios, braided flexible connections are adapted. In high insulation requirements, insulated copper busbars are selected.

Secondly, it is important to focus on the quality and performance of High current contacts, and prioritize selecting products that meet industry standards and have quality certification to ensure that their conductivity, mechanical strength, insulation performance, and other requirements are met. At the same time, it is necessary to consider the manufacturer's customization capability and service level to ensure that personalized customization needs can be met and timely technical support can be obtained during use.

Finally, a reasonable balance between price and cost-effectiveness should not be based solely on price as a selection criterion, but should be comprehensively judged based on product quality, performance, and usage needs.

Busbar connectors, as the core conductive components of various electrical systems, have a direct impact on the stable operation of the entire system in terms of their performance and selection rationality. Different types of copper busbars (including insulated copper busbars) play an irreplaceable role in adapting to the needs of different industries and scenarios, from ordinary power transmission and distribution to high demand new energy and electronic communication fields, based on their respective characteristics. Mastering the characteristics, price influencing factors, and selection points of Inverter bus bars can help practitioners accurately match their needs, choose suitable copper busbar products, and reasonably control project costs while ensuring the safe and stable operation of the system.

The selection, customization, and specification matching of Electrical copper bus bars are directly related to the safety and cost control of electrical systems. Professional support can help you accurately avoid hidden dangers. If you have any inquiries, customization or procurement needs for copper busbars and insulated copper busbars, please feel free to contact us at any time for exclusive solutions.
