PVC Dipped Insulated BusBar: New Insulated Conductive Components Empowering Modern Power Transmission

Against the backdrop of continuous upgrading of modern power systems and rapid growth in demand for new energy and high-end power distribution, various high-performance electrical connection components have become the core carriers for ensuring stable power supply and improving equipment safety. Among them, PVC Dipped Insulated BusBar, with their unique technological advantages and comprehensive performance, are gradually becoming the preferred component in the fields of power transmission and electrical isolation, providing efficient and reliable connection solutions for multiple key scenarios such as new energy, industrial power distribution, and data centers.

The core competitiveness of this type of product stems from its mature dip-molding process, which eliminates the need for additional splicing throughout the entire process, achieving integrated molding of the insulation layer. In the production process, the precision-machined and surface-plated (tin-plated, silver-plated) metal busbars are first preheated, with the temperature controlled within the specified range. Then, the preheated bars are immersed in a special liquid PVC material, utilizing the residual heat of the bars to allow the liquid material to adhere evenly and rapidly plasticize and solidify. Finally, a cooling and curing process ensures that the insulation layer adheres tightly to the metal substrate, forming a controllable thickness and smooth surface insulating protective layer. This process not only ensures the integrity of the insulation layer but also adapts to the processing of irregularly shaped and bent busbars. Customized products such as the Insulated Custom Copper Bus Bar with PVC Dipping can also achieve perfect insulation coverage using this process, overcoming the limitations of traditional insulation materials in adapting to irregularly shaped parts.

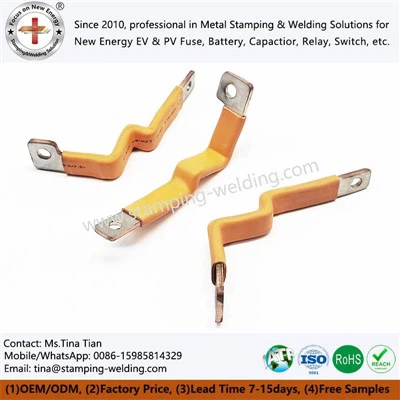

Leveraging a proprietary dip-molding process, this insulated busbar offers superior overall performance compared to traditional models, comprehensively addressing electrical safety, physical properties, and environmental adaptability. Its seamless, fully enclosed insulation layer, coupled with a professional bar isolation design, eliminates joint gaps, effectively mitigating the risks of partial discharge and leakage. Its exceptional voltage resistance provides a robust electrical safety barrier. The PVC coating boasts excellent toughness, wear resistance, and impact resistance, while also exhibiting corrosion resistance, acid and alkali resistance, salt spray resistance, and excellent flame retardancy, making it suitable for various complex and demanding operating conditions. Flexible models such as the Insulated Flexible Copper Bus Bar for Power Battery Pack and the Soft Connection Copper Busbar, designed for specific scenarios, are less prone to breakage when bent, offering durability far exceeding that of conventional products. Furthermore, customized products like the Plastic Dipping Copper Busbar can be manufactured to order, paired with dedicated bar supports to further enhance installation stability and wiring rationality.

With its comprehensive performance advantages, the application scenarios of PVC-impregnated insulated bars continue to expand, covering core areas such as new energy, energy storage, industrial power distribution, and data centers. In the new energy sector, these busbars are widely used in electric vehicle power battery systems, internal connections of battery packs, and circuit transmission in photovoltaic inverters and combiner boxes, becoming a core application scenario for Dipping Busbar for Connection. PVC Coated Bus Bars are also widely used in DC bus connections of energy storage power stations, internal power distribution in high and low voltage switchgear and distribution cabinets, and power transmission systems for heavy machinery to ensure stable transmission of high-power current. Meanwhile, the high-density, high-reliability power supply systems of data centers have stringent requirements for electrical safety and spatial layout; PVC-impregnated insulated bars, with their compact structure and stable performance, perfectly meet their efficient power distribution needs, becoming one of the mainstream choices in the industry.

As power equipment develops towards lightweighting, safety, and customization, the technological iteration and market application of PVC Dipped Insulated BusBar continue to deepen. Compared to traditional conductive connection components, these products, with their superior insulation performance, stronger adaptability to operating conditions, and more flexible customization options, are gradually filling the market gap in the high-end electrical connection field. They also provide solid component support for the safety upgrade of power systems and the efficient development of the new energy industry, and are expected to achieve wider adoption in more power application scenarios in the future.

For product parameters, customization options, and matching selection of PVC Dipped Insulated BusBar, please feel free to contact us for professional assistance and detailed consultation.
